12
Readers
Wiegand Readers
Figure 7:Wiegand Readers

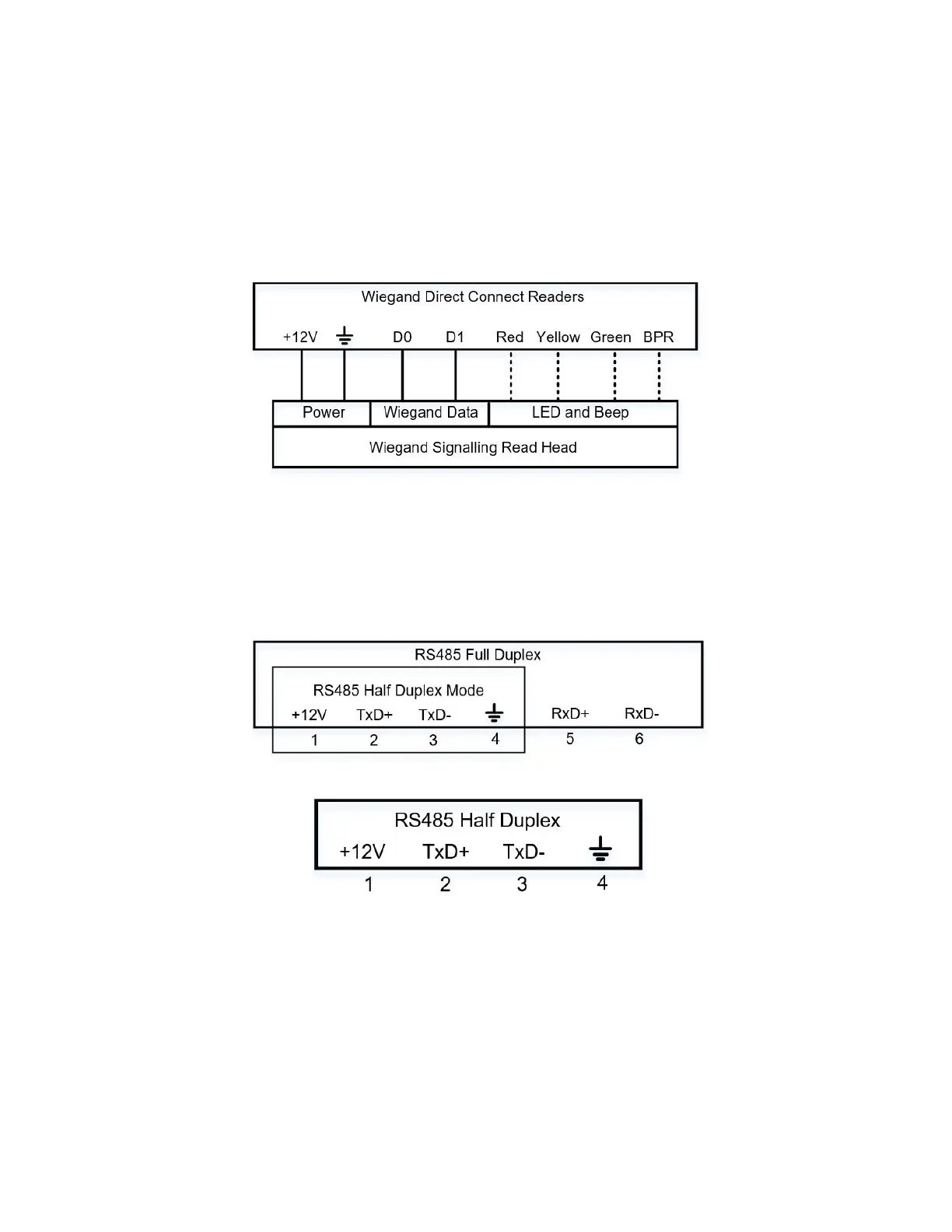

Figure 7 shows direct Wiegand signaling read head connections.
RS485 Readers
Figure 8:RS485 Readers
Figure 8 shows RS485 full duplex and half duplex reader connections.
