PB_VA-748x_12 2012
5
Wiring■Instruction
■WARNING
When■servicing■make■sure■that:
• The electric supply to the actuator is switched off to avoid possible damage to the equipment, personal injury or shock.
• You do not touch or attempt to connect or disconnect wires when electric power is on.
• All wiring should conform to local codes and must be carried out by authorized personnel only.
• Keep high and low voltage wiring separated.
• When using multi-stranded wire apply a cable ferrule to the cable end.
• Make sure that the line power supply is in accordance with the power supply specified on the device.
• Check all wiring connections before applying power to the system.
• Contact with components carrying hazardous voltage can cause electric shock and may result in severe injury or death.
• Short-circuited or improper connected wires may result in permanent damage to the equipment.
• Not adhering to these operational instructions could cause injury or damage the equipment.
BLU BRN
N L1 230VAC
BLU BRN
N L1 230VAC

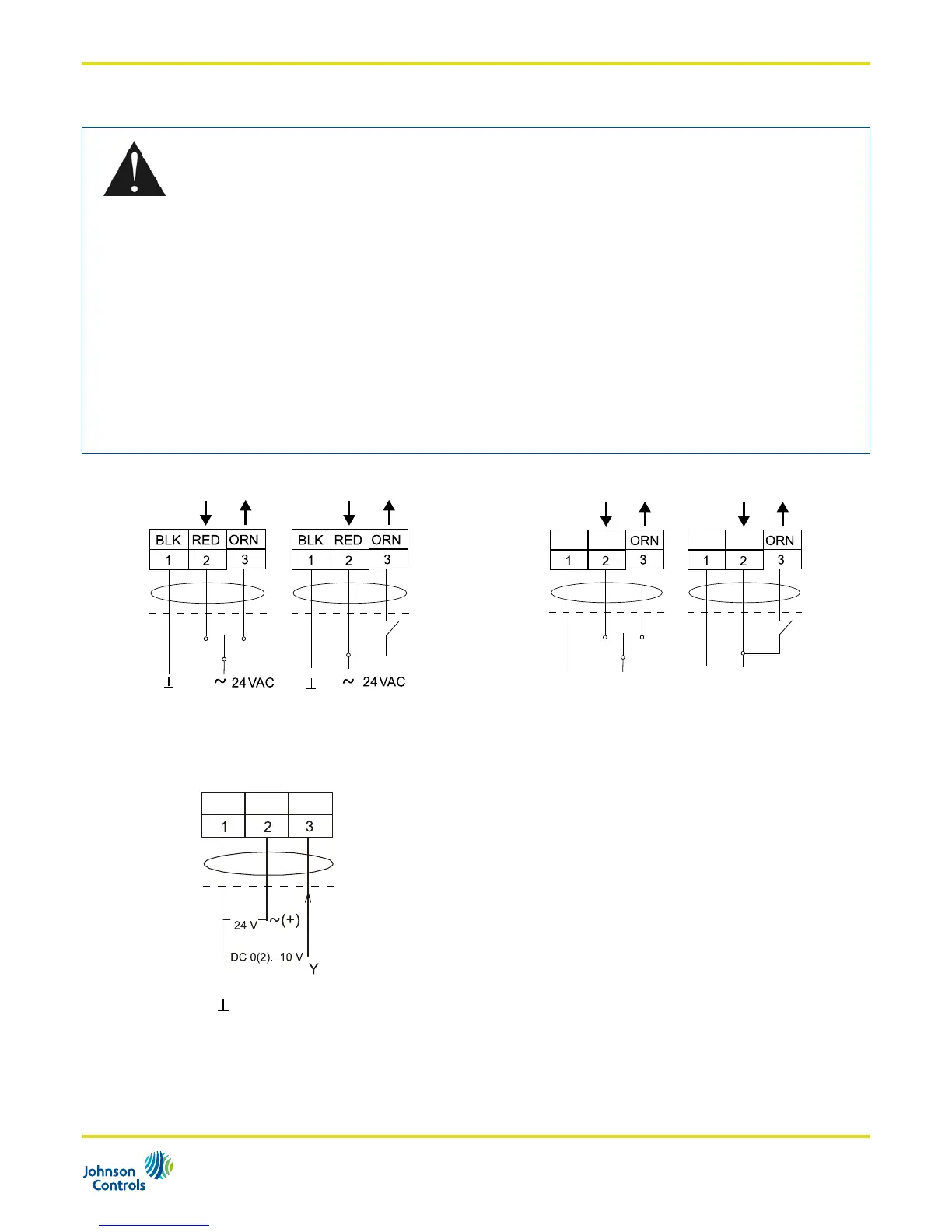

24Vac■Floating■Model■-■Wiring■Diagrams 230Vac■Floating■Model■-■Wiring■Diagrams
BLK RED GRY
AC
(-)
(+)
24Vac/Vdc■Proportional■Model■-■Wiring■Diagrams
