18
FORM 145.13-NO2
ISSUE DATE: 1/22/2020
SECTION 2 - OPERATION
LD28647

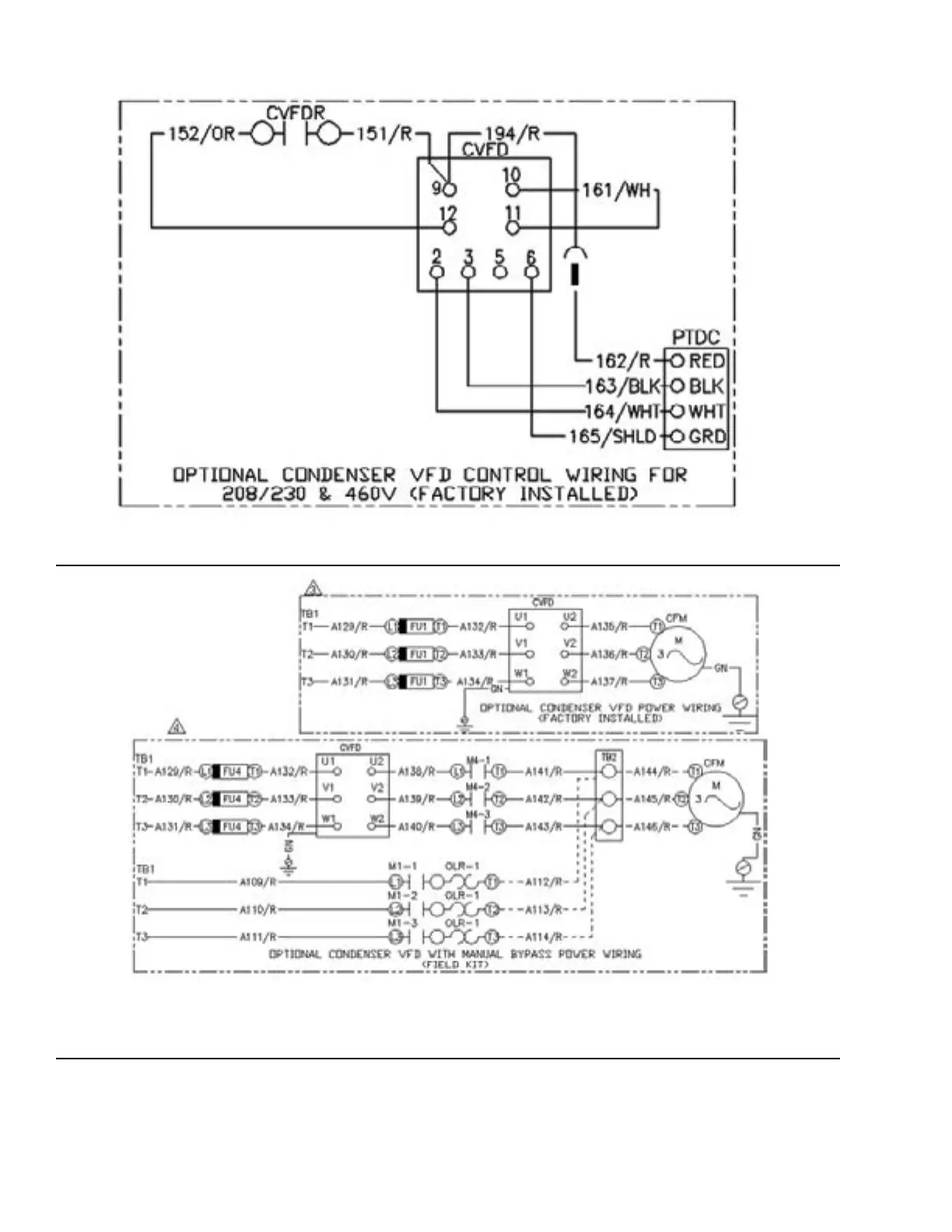

FIGURE 11 - CONDENSER VFD LOW VOLTAGE WIRING SCHEMATIC (208/230/460V)
LD28646
FIGURE 12 - CONDENSER VFD HIGH VOLTAGE WIRING SCHEMATIC WITH OPTIONAL MANUAL BYPASS
(208/230/460V)
