VG1000 Series Forged Brass Ball Valves Installation Instructions
6
See Figure 7 for dimension drawings of the Spring Return VA9203 Series Actuated VG1241, VG1245, VG1841,
and VG1845 Series NPT End Connection Ball Valves. See Table 3 and Table 4 for specific model linkage
dimensions.
Table 3: VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with NPT End
Connections Dimensions, in. (mm)
Valve Size,
in. (DN)
1
1. Port A must always be connected to the coil.
A
(Without
Thermal
Barrier)
A
(With
Thermal
Barrier)
BCDEFG
1/2 (DN15) 4-1/4
(108)
6
(152)
21/32
(17)
1-7/32
(31)
6-23/32
(171)
2-33/64
(64)
11/32
(9)
1-1/4
(32)
3/4 (DN20) 4-1/4
(108)
6
(152)
21/32
(17)
1-7/32
(31)
6-7/8
(175)
2-51/64
(71)
11/32
(9)
1-13/32
(36)
1 (DN25) 4-9/32
(109)
6-1/16
(154)
3/4
(19)
1-19/64
(33)
7-7/64
(181)
3-13/32
(87)
11/32
(9)
1-45/64
(43)
Table 4: VA9203 Actuated VG1271, VG1275, VG1871, and VG1875 Series Sweat Ball Valve and VA9203
Actuated VG1291, VG1295, VG1891, and VG1895 Series Press Ball Valve Dimensions, in. (mm)
Valve Size,
in. (DN)
1
1. Port A must always be connected to the coil.
ABC D EFG
1/2 (DN15) 4-5/8 (117) 21/32 (17) 1-7/32 (31) 7-13/64 (183) 3-25/32 (96) 11/32 (9) 1-1/4 (32)
3/4 (DN20) 4-5/8 (117) 21/32 (17) 1-7/32 (31) 7-3/4 (197) 4-3/32 (104) 11/32 (9) 1-13/32 (36)
1 (DN25) 4-11/16 (119) 3/4 (19) 1-19/64 (33) 8-3/16 (208) 4-41/64 (118) 11/32 (9) 1-45/64 (43)

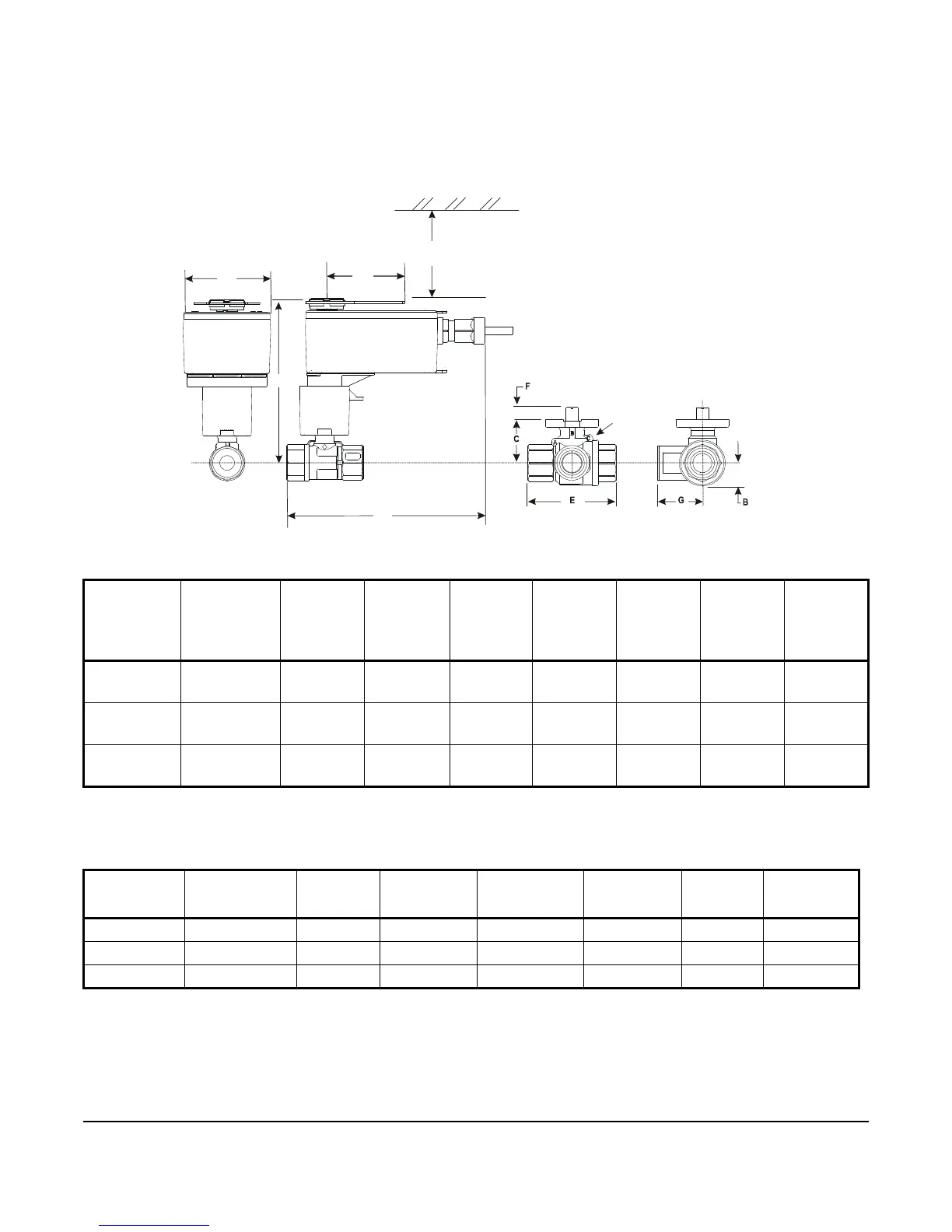

Figure 7: Spring Return VA9203 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with
Optional M9000-561 Thermal Barrier Installed Dimensions, in. (mm)
Port Marking
Locations
F
I
G
:
V
A
9
2
0
3
X
_
d
i
m
s
t
h
b
r
2-7/8
(73)
3-1/4
(82)
A
D
3-1/2 (89)
Clearance Required
