VG1000 Series Forged Brass Ball Valves Installation Instructions
7
See Figure 8 for dimensions of the Non-Spring Return VA9300 Actuated VG1241, VG1245, VG1841, and VG1845
Series Ball Valve with Optional M9000-561 Thermal Barrier. See Table 5 for specific model linkage dimensions.
Table 5: VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball Valve with Optional
M9000-561 Thermal Barrier Dimensions, in. (mm)
Valve
Size, in.
(DN)
A (With
Thermal
Barrier)
A (Without
Thermal
Barrier)
BC D EFG
1/2
(DN15)
5-3/4 (146) 4-3/8 (111) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-33/64 (64) 11/32 (9) 1-1/4 (32)
3/4
(DN20)
5-3/4 (146) 4-3/8 (111) 21/32 (17) 1-7/32 (31) 6-13/32 (163) 2-51/64 (71) 11/32 (9) 1-13/32 (36)
1
(DN25)
5-13/16 (148) 4-7/16 (113) 3/4 (19) 1-5/16 (33) 6-13/32 (163) 3-13/32 (87) 11/32 (9) 1-45/64 (43)
1-1/4
(DN32)
6-1/4 (159) 4-7/8 (124) 1-1/32 (26) 1-23/32 (44) 6-13/32 (163) 3-15/16 (100) 11/32 (9) 1-31/32 (50)
1-1/2
(DN40)
6-13/32 (163) 5-1/32 (128) 1-1/8 (29) 1-7/8 (48) 6-13/32 (163) 4-21/64 (110) 11/32 (9) 2-11/64 (55)
2
(DN50)
6-5/8 (168) 5-1/4 (133) 1-15/32 (37) 2-1/16 (53) 6-13/32 (163) 4-27/32 (123) 11/32 (9) 2-27/64 (62)

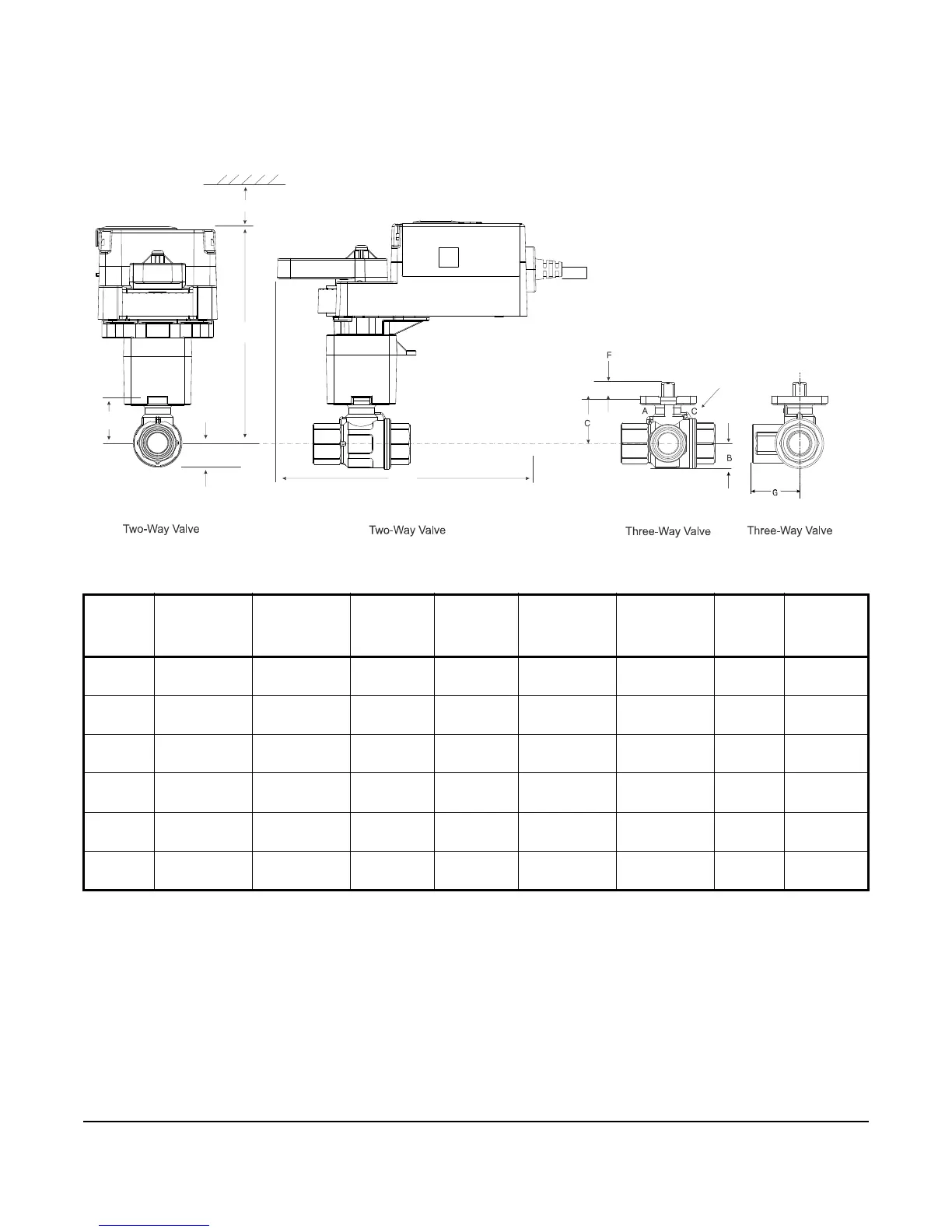

Figure 8: Non-Spring Return VA9300 Actuated VG1241, VG1245, VG1841, and VG1845 Series Ball
Valve with Optional M9000-561 Thermal Barrier Dimensions, in. (mm)
B
D
A
3-1/2 in. (89 mm)
C
Optional
Thermal
Barrier
Optional
Thermal
Barrier
FIG:Thermal Barrier
B
Port Marking
Locations
