Johnson Controls VP1000 Series User Manual

P/N 34-636-02537, Rev. A
5

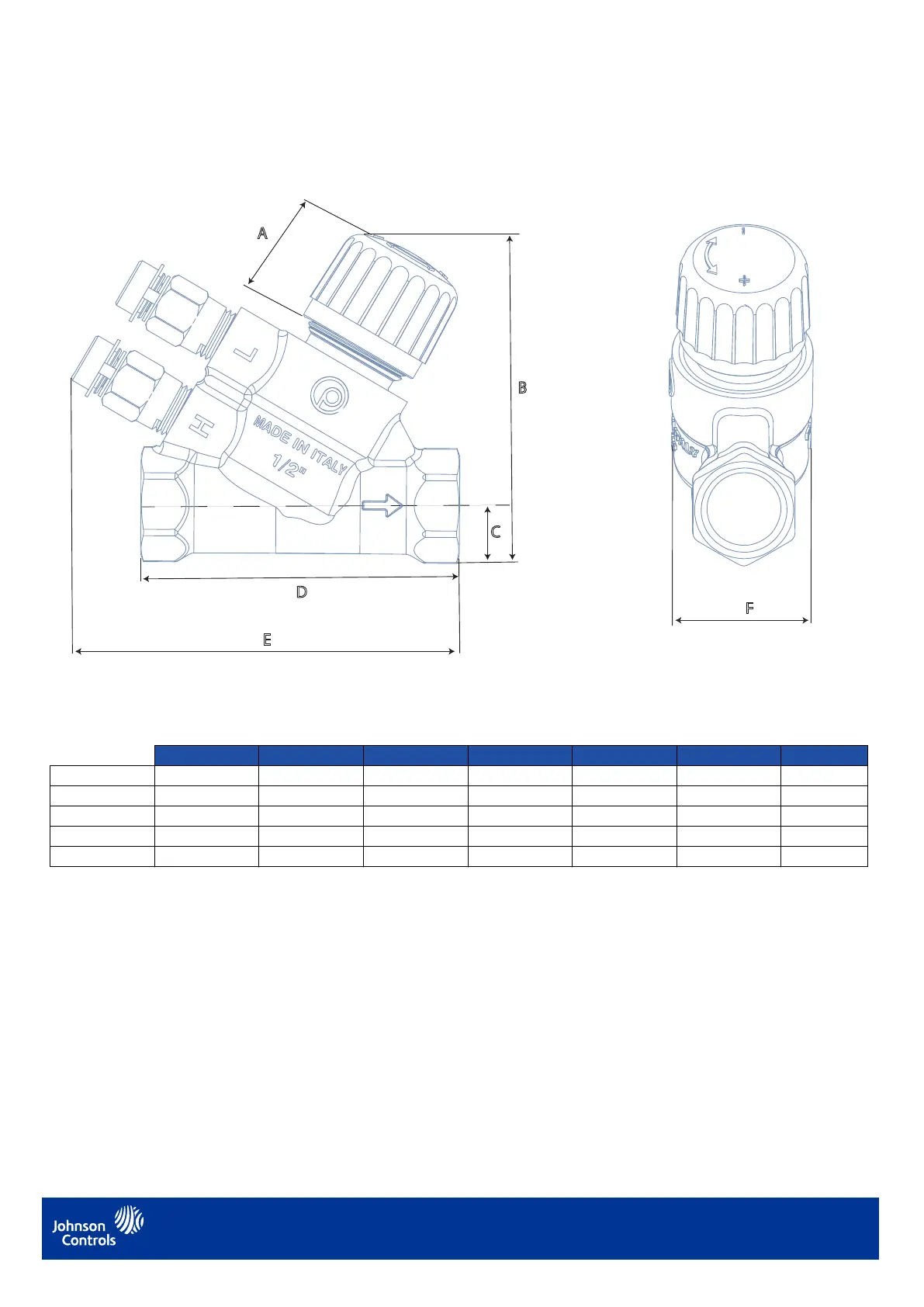

Dimensions
E
B
C
D
A
F
Table 1: Valve dimensions mm.
Valve Size A B C D E F
VP10xHAA 1/2” DN15 28 83 14.5 80.5 95 36
VP10xHDA 1/2” DN15 28 83 14.5 80.5 95 36
VP10xHDC 1/2” DN15 28 85 14.5 93.5 118 53
VP10xJAJ 3/4” DN20 28 88 17.5 98 118 56
VP10xJDB 3/4” DN20 28 88 17.5 98 118 56
