Johnson Controls VP1000 Series User Manual

E
B
C
D
A
F
G
P/N 34-636-02537, Rev. A
6

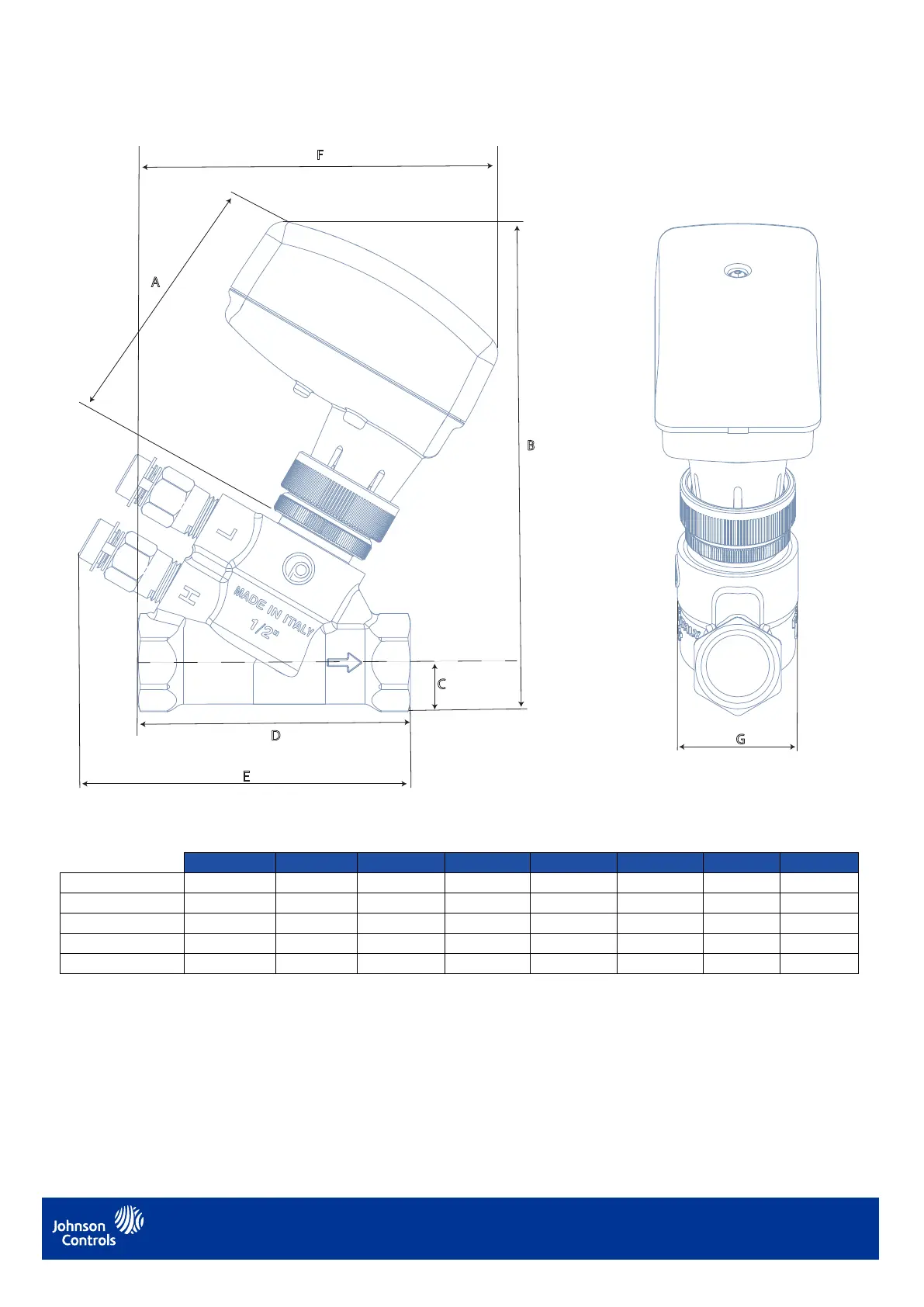

Table 2: Valve with VA-748x Series actuator dimensions mm
Valve Size A B C D E F G
VP10xHAA 1/2” DN15 80.5 145 14.5 80.5 95 106 37
VP10xHDA 1/2” DN15 80.5 145 14.5 80.5 95 106 37
VP10xHDC 1/2” DN15 80.5 147 14.5 93.5 118 110.5 53
VP10xJAJ 3/4” DN20 80.5 150 17.5 98 118 112.5 56
VP10xJDB 3/4” DN20 80.5 150 17.5 98 118 112.5 56
