Johnson Controls VP1000 Series - Valve Size; A; B; C

G
E
C
D
F
A
B
P/N 34-636-02537, Rev. A
8

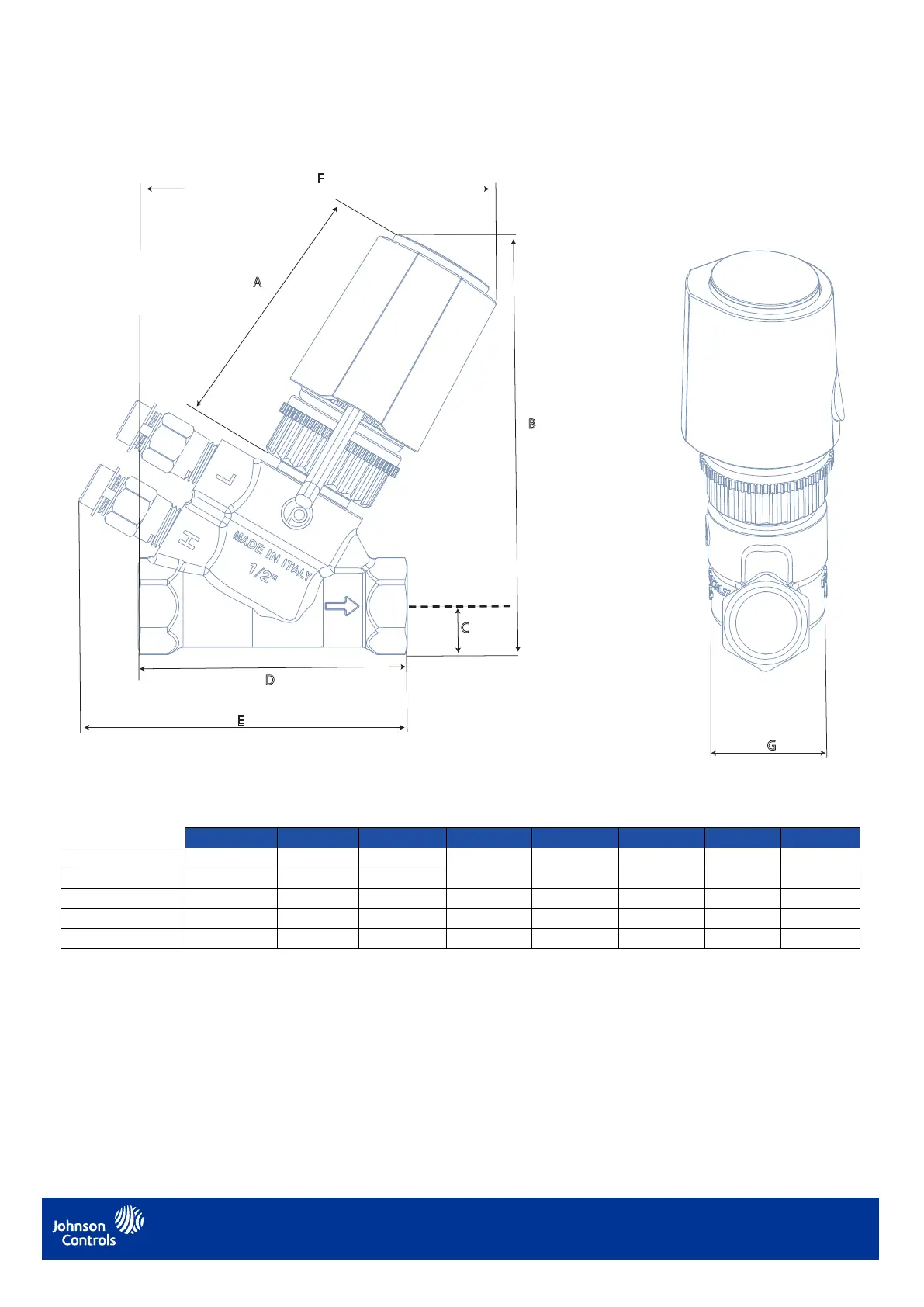

Table 4: Valve with VA-708x Series actuator dimensions mm
Valve Size A B C D E F G
VP10xHAA 1/2” DN15 64.5 120 14.5 80.5 95 106 36
VP10xHDA 1/2” DN15 64.5 120 14.5 80.5 95 106 36
VP10xHDC 1/2” DN15 64.5 122 14.5 93.5 118 110.5 53
VP10xJAJ 3/4” DN20 64.5 125 17.5 98 118 112.5 56
VP10xJDB 3/4” DN20 64.5 125 17.5 98 118 112.5 56
