E
D
C
B
G
F
A
P/N 34-636-02537, Rev. A
7

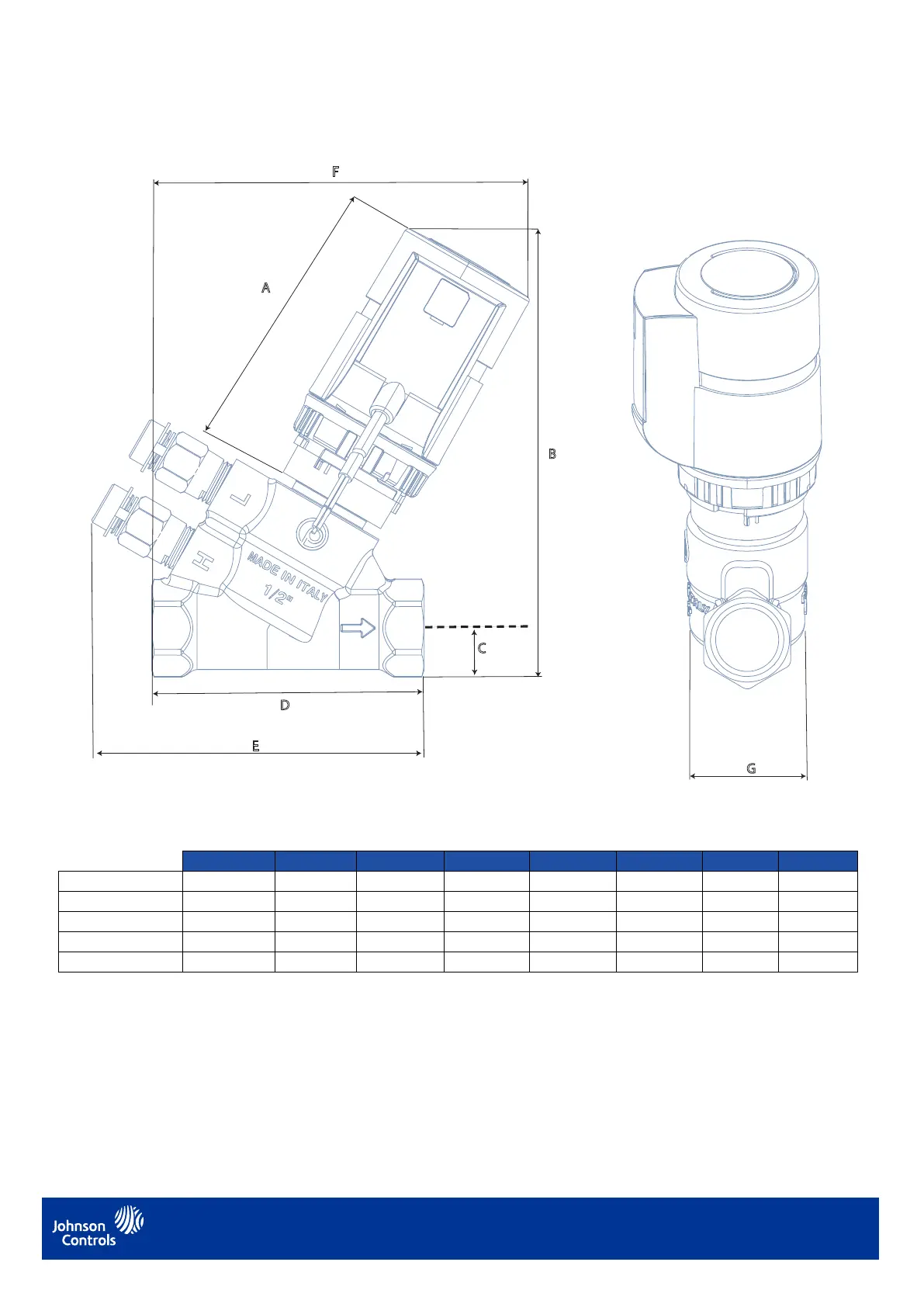

Table 3: Valve with VA-709x Series actuator dimensions mm
Valve Size A B C D E F G
VP10xHAA 1/2” DN15 74 127 14.5 80.5 95 106 36
VP10xHDA 1/2” DN15 74 127 14.5 80.5 95 106 36
VP10xHDC 1/2” DN15 74 129 14.5 93.5 118 110.5 53
VP10xJAJ 3/4” DN20 74 132 17.5 98 118 112.5 56
VP10xJDB 3/4” DN20 74 132 17.5 98 118 112.5 56
