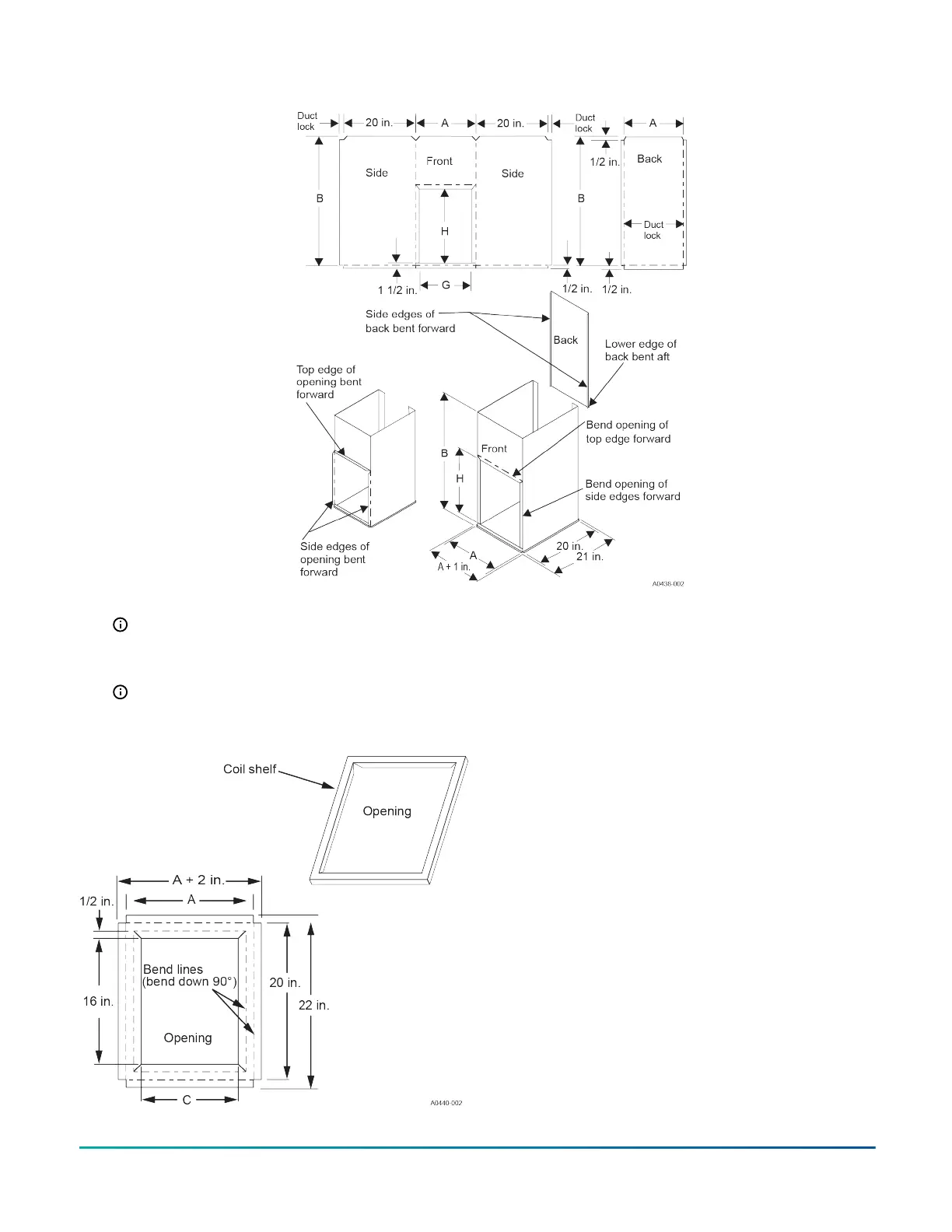

Figure 33: Duct work coil installation and access fabrication
Note: See Table 7 for the dimension of each capital letter shown in Figure 33.
6. Fabricate a coil shelf using a flat piece of metal. See
Figure 34.
Note: See Table 7 for the dimension of each
capital letter shown in Figure 34.
Figure 34: Coil shelf
7. Install the coil shelf through the plenum opening
so that the duct flanges on the furnace support the
coil shelf. See Figure 35. Install the coil shelf level or
pitched slightly toward the drain end (high in the
back, low in the front). Ensure that the pitch does
not exceed 1/4 in. per length of coil.
