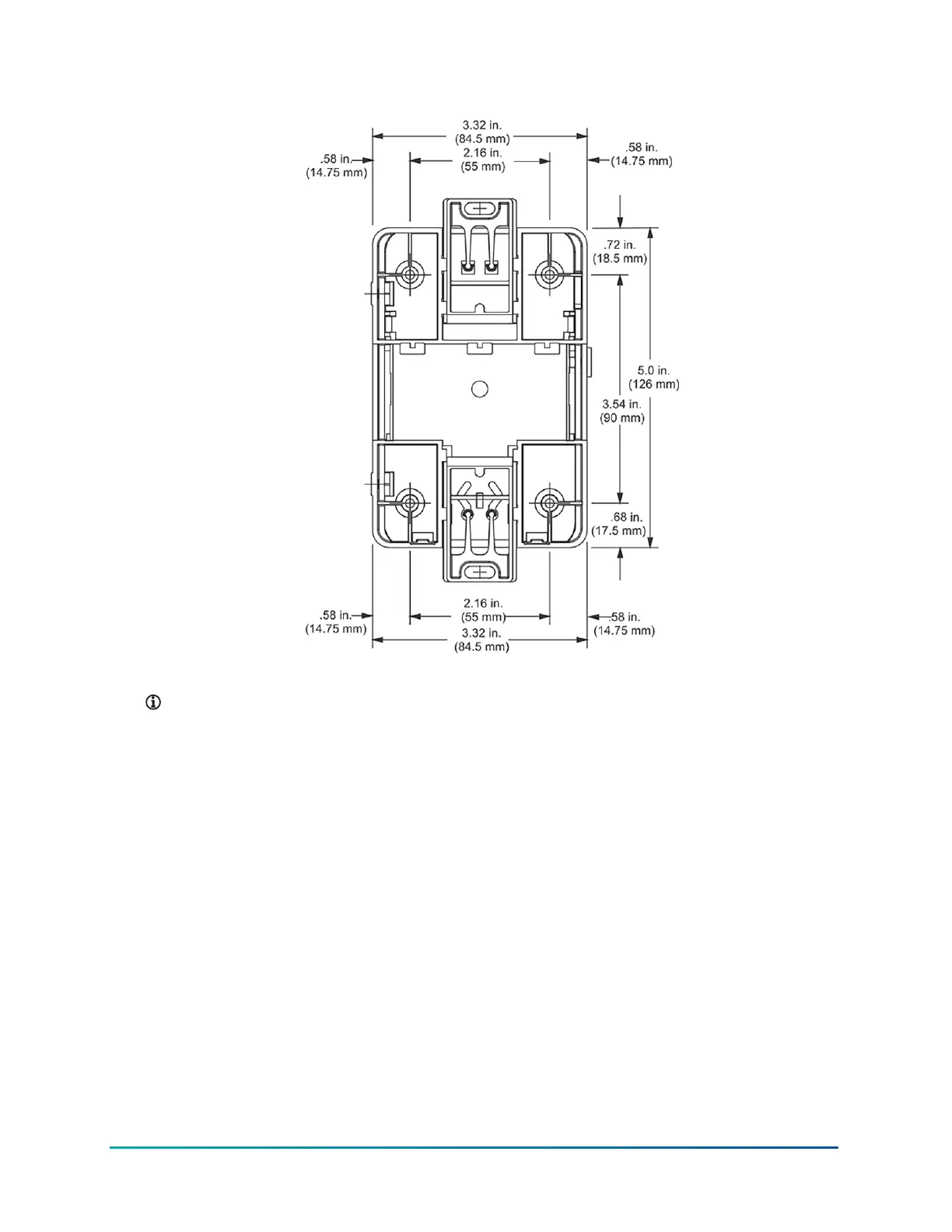

Figure 7: Mounting Holes, Flat Mounting
Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws.
Mobile Access Portal Gateway Installation Guide12
