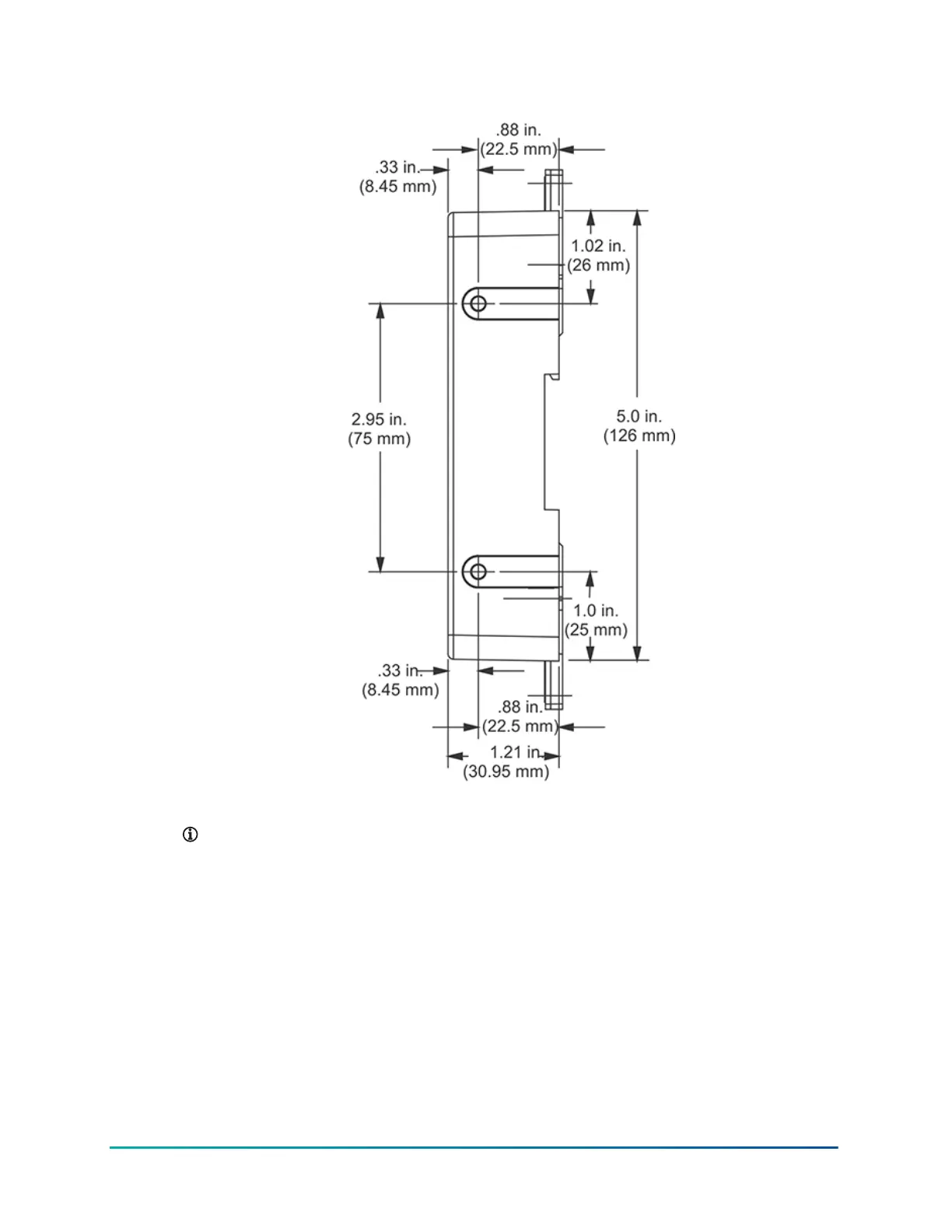

Figure 8: Mounting Holes, Side Mounting
Note: The screw holes on the MAP Gateway can accommodate M3.5 and #6 screws.
13Mobile Access Portal Gateway Installation Guide
