Installation, Operation and Maintenance Manual : 036-1011(0806)
Page 14
ADDITIONAL PRESSURE DROPS

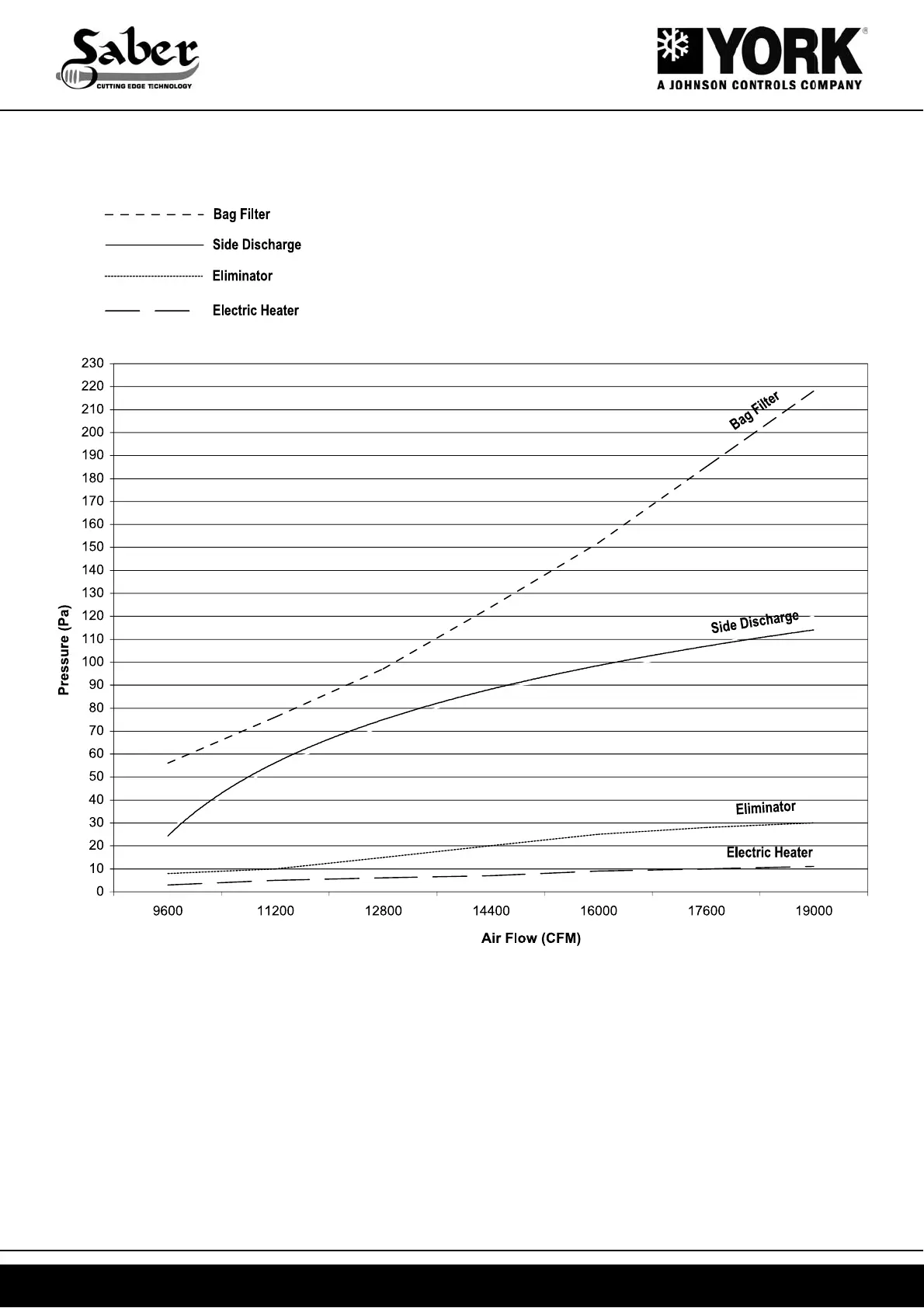

FIGURE 8 : PRESSURE DROPS DUE TO OPTIONS
The additional pressure losses should be calculated from the graph and
ADDED along with the ESP (External Static Pressure) to calculate fan
performance
