Johnson Controls York DMS Saber Series User Manual

Installation, Operation and Maintenance Manual : 036-1011(0806)
Page 6
CONDENSATE DRAIN
Plumbing must conform to local codes. Use a
sealing compound on male pipe threads.
Install a condensate drain line from the
one-inch FPT female connection on the unit to
an open drain.
NOTE : The condensate drain operates in a
negative pressure in the cabinet. The
condensate drain line MUST be trapped to
provide proper drainage. See Figure 4.

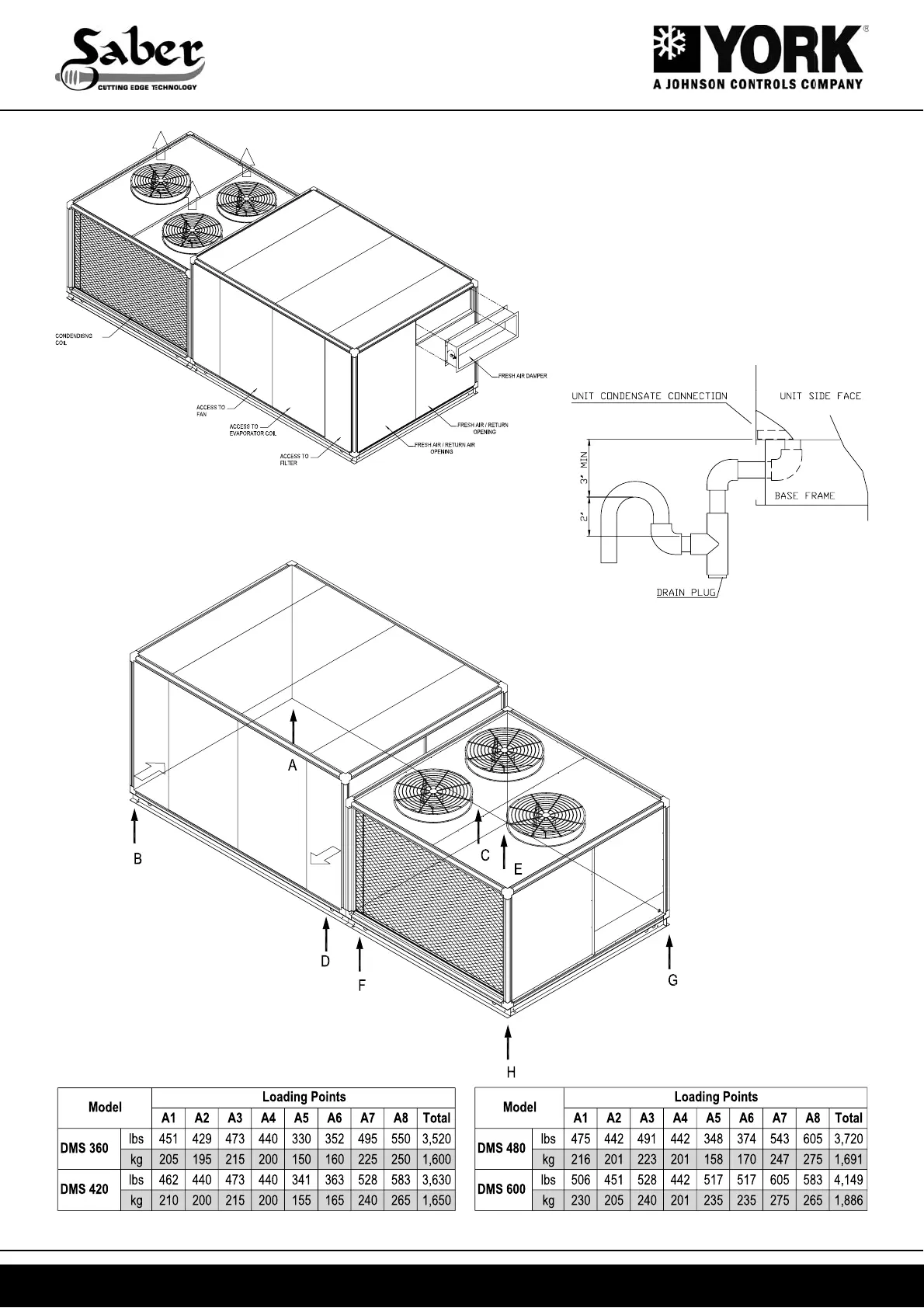

FIGURE 4 : RECOMMENDED DRAIN PIPING
FIGURE 5 : LOADING POINTS
FIGURE 3 : FIXED OUTDOOR AIR DAMPER
