Detector Usage (included in Model No. 40-6539)
1. Technical Specifications
Detecting precision Fine: ±0.039" (±1mm)
Coarse: ±0.098" (±2.5mm)
Turn-off timer 10 minutes
Three types of sound
Size 6.614" x 2.677" x 0.905" (168 X 68 X 23mm)
2. Components

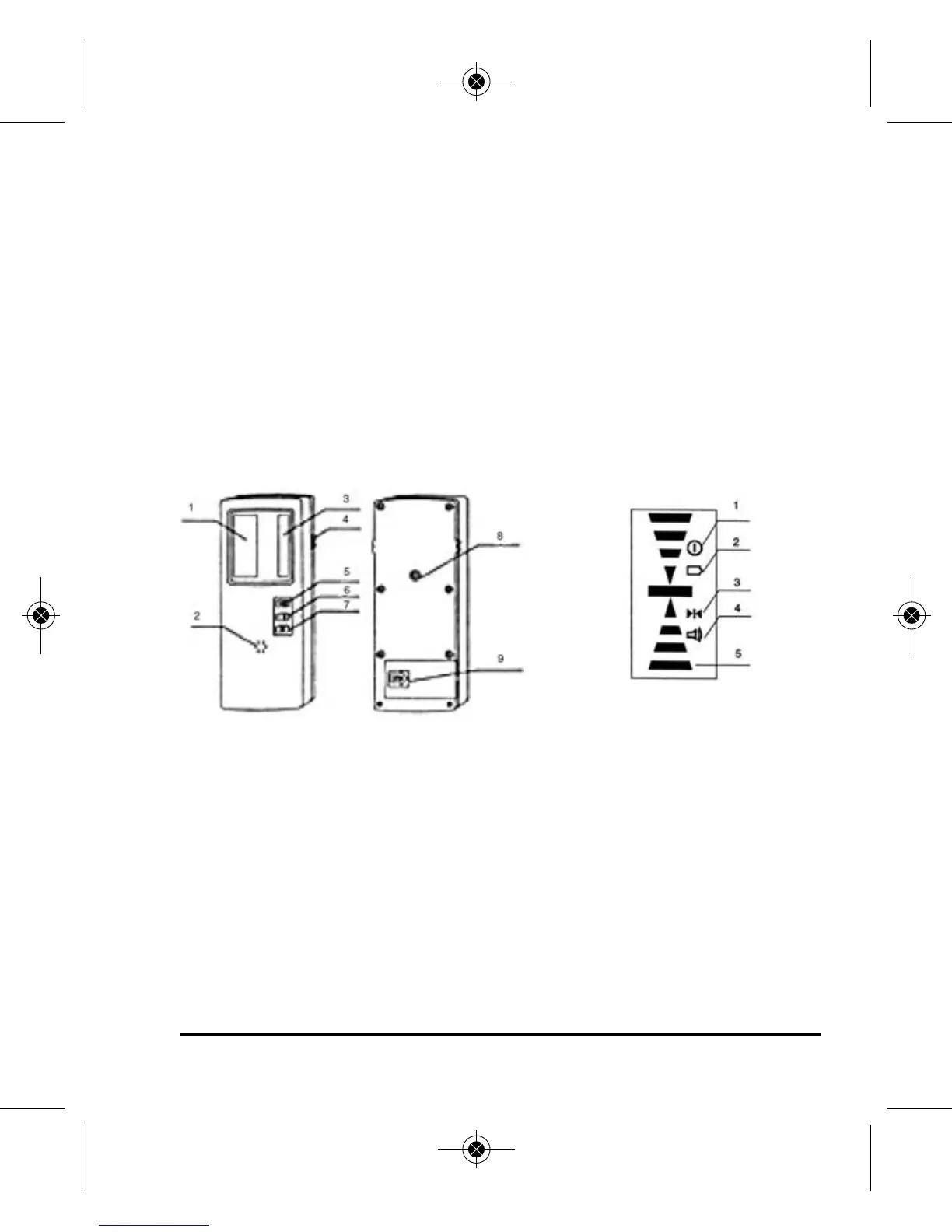

(a) Structure
1. Display window 8. Threaded hole
2. Buzzer 9. Battery-box
cap
3. Receiving window
4. Reference rabbet
5. Sound button
6. Coarse/Fine detection button
7. Power button (On/Off)
(b) Display
1. Power symbol
2. Low battery symbol
3. Coarse/Fine detection symbol
4. Sound symbol
5. Detecting position symbol
