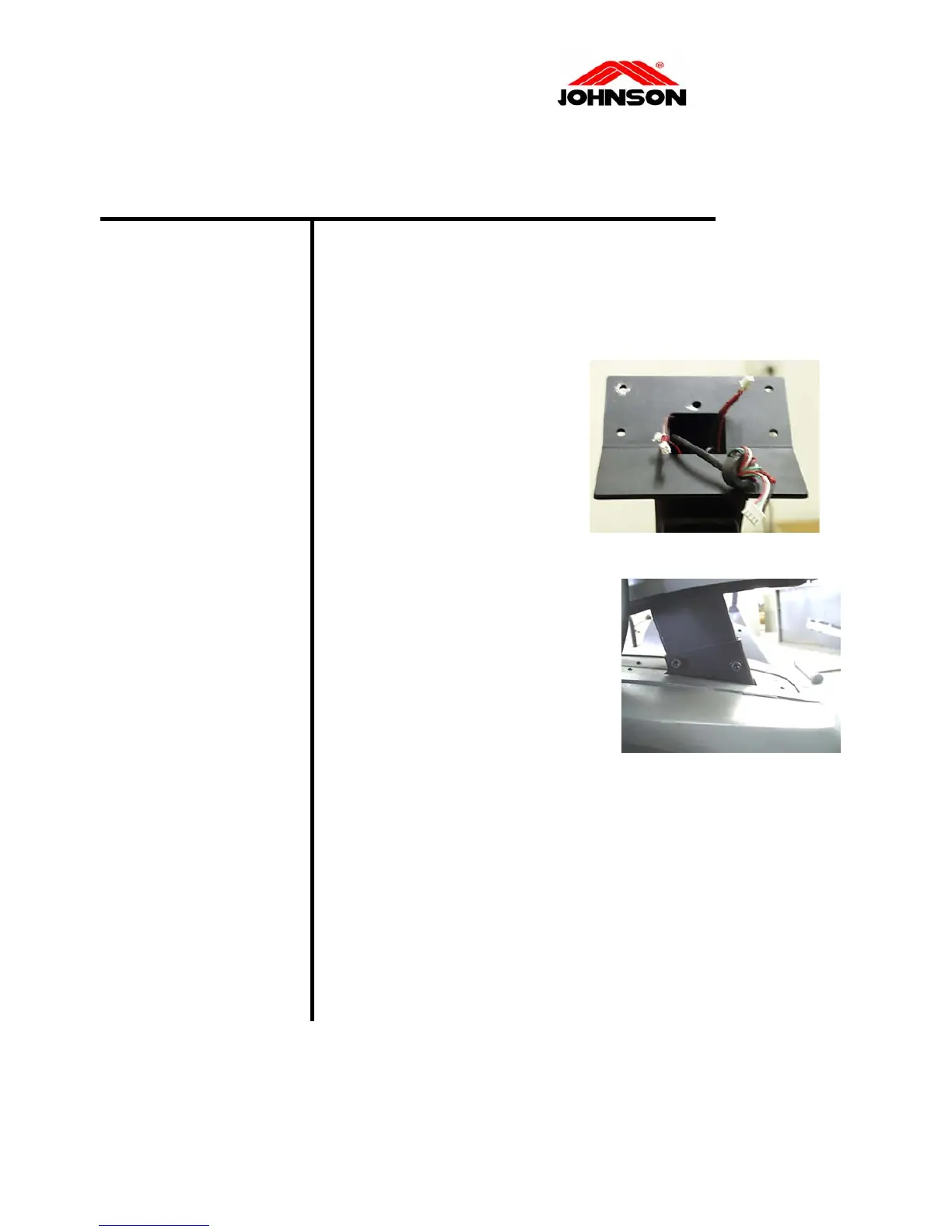

CONSOLE CABLE REPLACEMENT PROCEDURE
Tools required:
Philips screwdriver
Adjustable wrench
hex key(8mm)
crank extractor
coin
Procedure:
1. Loosen the screws that hold the console to the
console holding bracket.
2. Unplug the console cable from
the console connectors.
3. Remove the upper cover, screw
4. Remove the crank and side cover
5. Disconnect the console cable
from the connectors, and then tie the old cable to
the new one with a rigid string.
6. Pull the old cable from the top end
until the new cable threads all the
way through the support.
7. Reconnect the console cables to both
the console and control board.
8. Tighten the screws that hold the console to the
console bracket.
9. Install the parts.
