Johnson MISTRAL Series User Manual

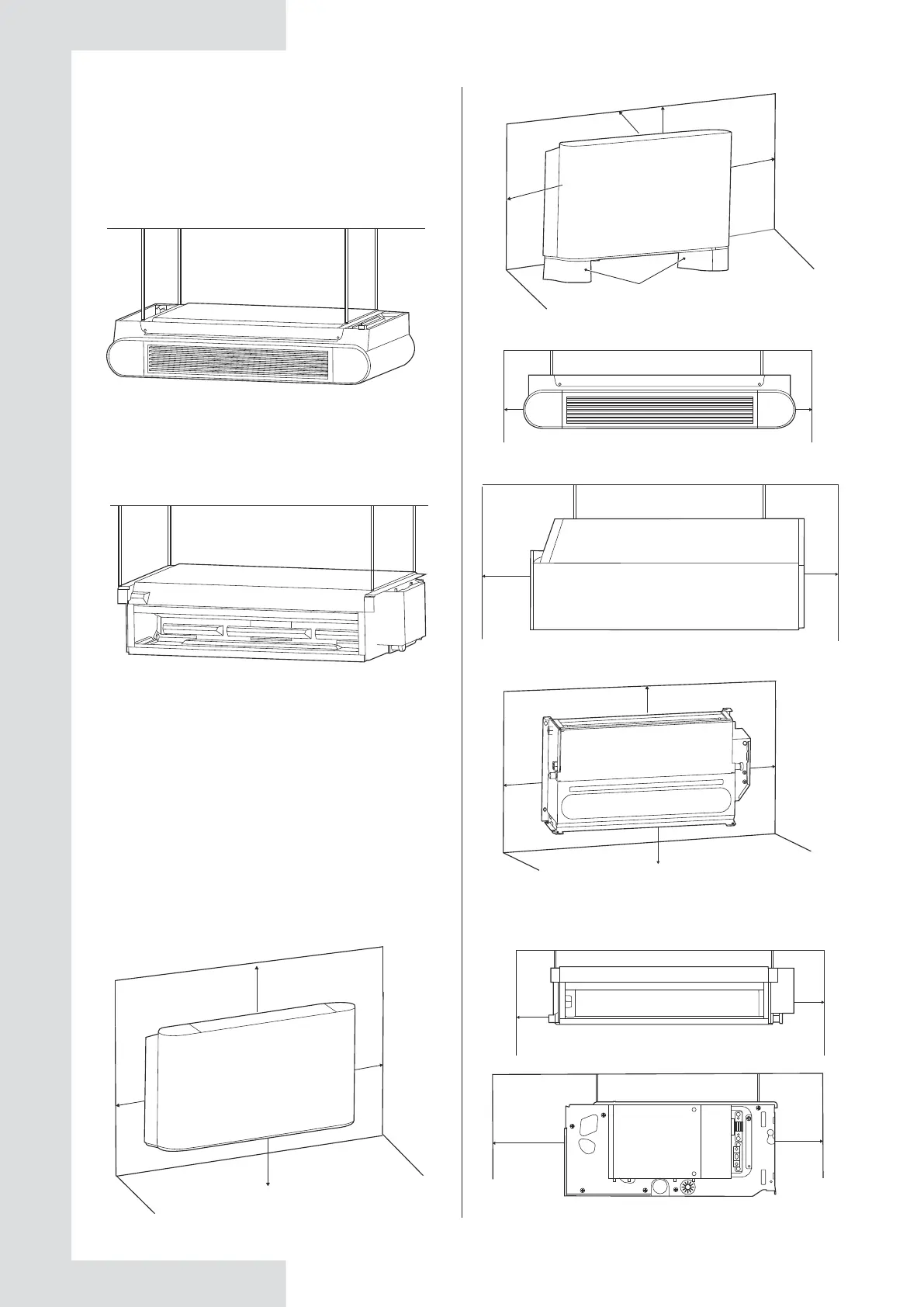

Figure 5-5 Diagram of ceiling exposed
Figure 5-6 Diagram of ceiling concealed
5.3.1 Spacing and Positioning
Incorrect positioning or installation may increase the
noises and vibration of the unit during operation.
If not enough space is reserved during installation, the
unit may face difficult maintenance and reduced
performance.
The unit allows vertical installation, provided that correct
positioning is arranged in advance. As shown below, a is
greater than 150 mm, b greater than 90 mm, c greater
than 50 mm and d greater than 1500 mm.
Figure 5-7
Figure 5-10 Vertical type exposed
Figure 5-8
Figure 5-9 Ceiling exposed
Figure 5-11 Ceiling concealed
a
a
a
a
a
a
a
Footing
c
a
b
b
a a
b
b
10
d
d
d
d
d
V.1
