542933-UIM-C-0112
18 Johnson Controls Unitary Products

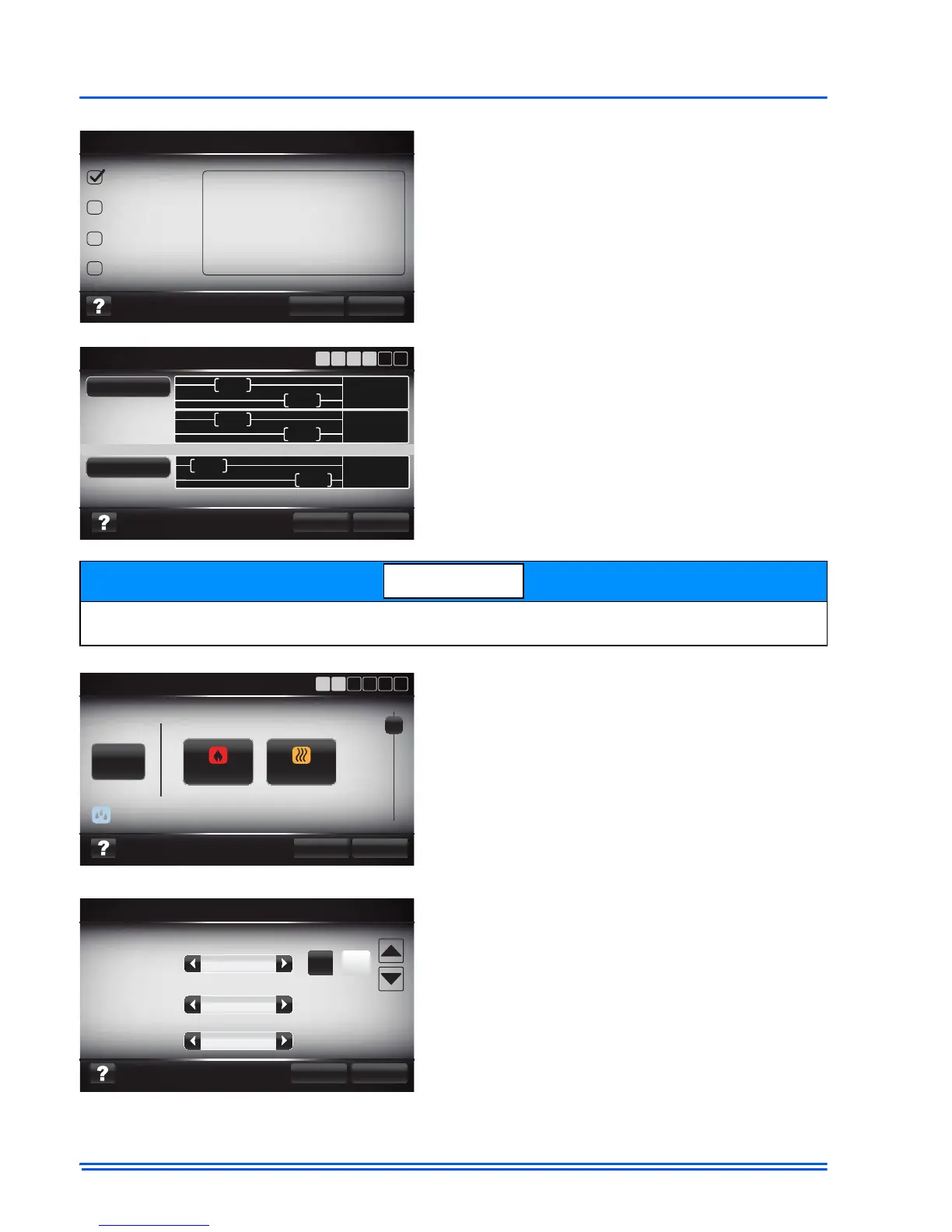

The Airflow Configuration screen is only available
on a system that contains a variable speed com-
municating indoor unit (denoted by "-C" in the
model number). For more information on the
function of this screen refer to the Service Mode
section of this document.
The Airflow summary screen is only available on
a system that contains a variable speed commu-
nicating indoor unit (denoted by "-C" in the model
number). The screen will be populated depending
on the system being installed. For more informa-
tion on the function of this screen refer to the Ser-
vice Mode section of this document.
The modulating furnace airflow during heating is still controlled by the ignition control not the
Touch Screen Communicating Control.
The Edit/Add Devices screen is shown for every
system install. For the system to properly control
accessories, they must be “ADDED” using this
screen. The information displayed will depend on
the system being installed. Accessories such as
humidifiers, EAC, and UV lights are not communi-
cating, and model and serial numbers can be
manually entered. For more information on the
function of this screen refer to the Service Mode
section of this document.
Maintenance Reminder screen is shown for every
system install. Annual Maintenance Reminder
can be entered by enabling the reminder and
selecting the desired day and month. These are
set up as you choose based on your business
plan (i.e., do you want the homeowner to call for
maintenance or not?). Two maintenance
reminder events may be established (fall and
spring).
Airflow Config
Next
Dry
Temperate
Humid
Normal
Delay Profile: Dry
Best in dry regions such as the southwest
US.
Increases the blower ramp-down times to
help retain humidity.
Back
11:07AM Thu 21 Jul
NextBack
Heat Pump
Model YZH036
AH Model AV060
Heat Kit Model 4HKx6501506
530Set CFM 1950
Air Handler
High Heat
Low Heat
High Cool
Low Cool
809
1245
809
1245
4.3 KW
9.6 KW
4.8 KW
14.4 KW
Airflow Summary 11:07AM Thu 21 Jul
1860
730
NOTICE
Next
Back
Edit/Add Devices
Add
Device
Select a device to edit/add information:
11:07AM Thu 21 Jul
Other:
System ID = HP14
Other:
Furnace
Heat Pump
Humidifier
Maint Reminder
1st Maintenance Reminder
recurring every:
2nd Maintenance Reminder
recurring every:
Warning Alert:
Enabled
2 Weeks in Adv
Disabled
NextBack
08 May
/
11:07AM Thu 21 Jul
