542933-UIM-C-0112
Johnson Controls Unitary Products 41

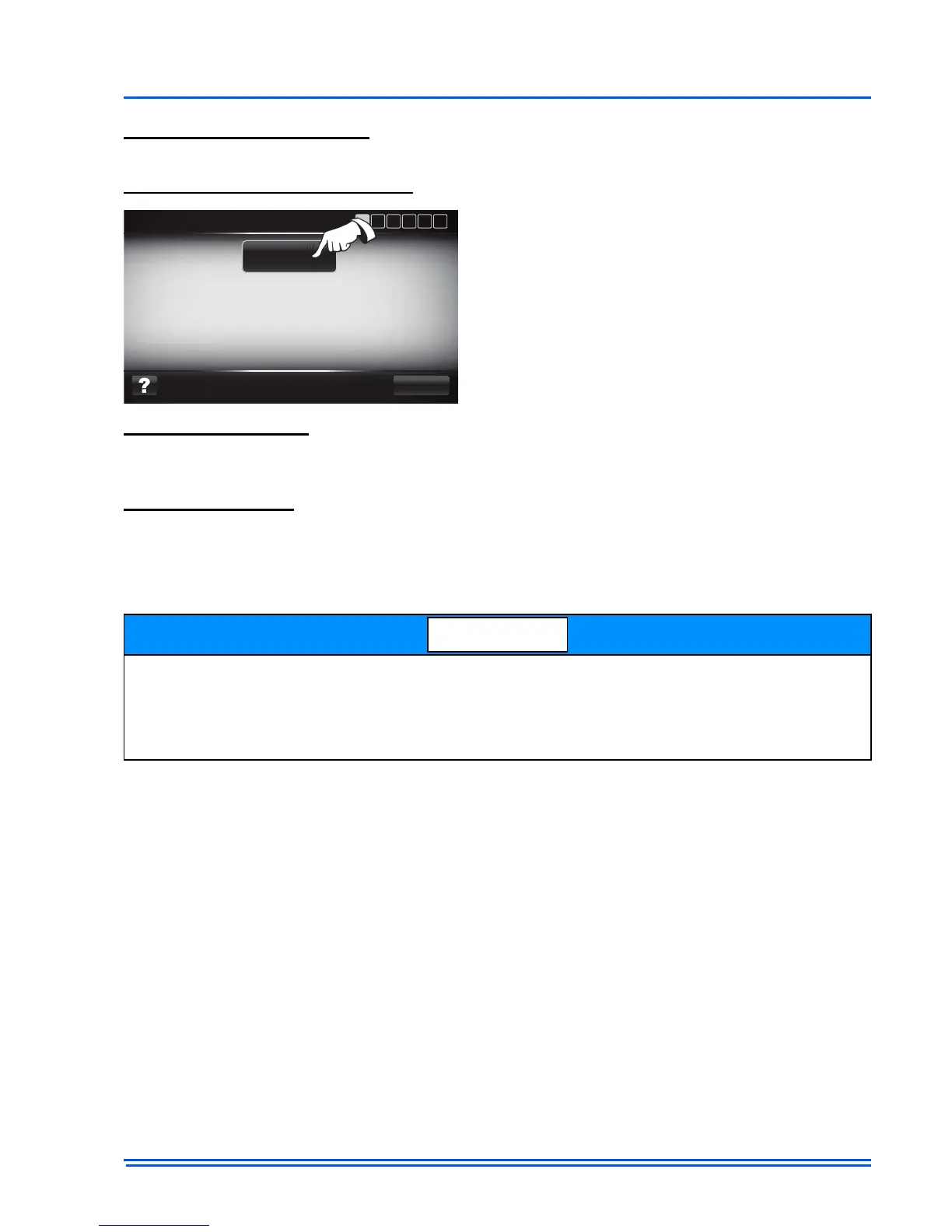

Menu Button: Service Tool
When using the service tool, the installer only has access to the force operation feature.
Forced Operation: Service Tool
Exiting Service Tool
To exit service mode, simply remove power from the device. This will reset the software and return
the Touch Screen Communicating Control to original settings.
Demo Mode Setup
The Demo Mode application is defined as a Touch Screen Communicating Control that is being
used to simulate connection to a communicating system. While in demo mode, the control will allow
the user to choose the type of equipment to be displayed and the Touch Screen Communicating
Control will present as though the system components are connected.
Forced operation on the service tool is fully func-
tional. However, when viewing the system map
while forcing operation, the same limitations of
the log and system map exist.
To view more information about forcing system
operation, view the “Forced Operation: Master
Control” section.
Demo mode will simulate a fault every 5 minutes.
Demo mode only requires 24 VAC on the R and C terminals.
While the Touch Screen Communicating Control is configured in Demo Mode, other communicat-
ing controls will not receive commands. Demo Mode will not control a communicating sys-
tem.
