R
MODEL J-239
JOPEVI
PAGE
7

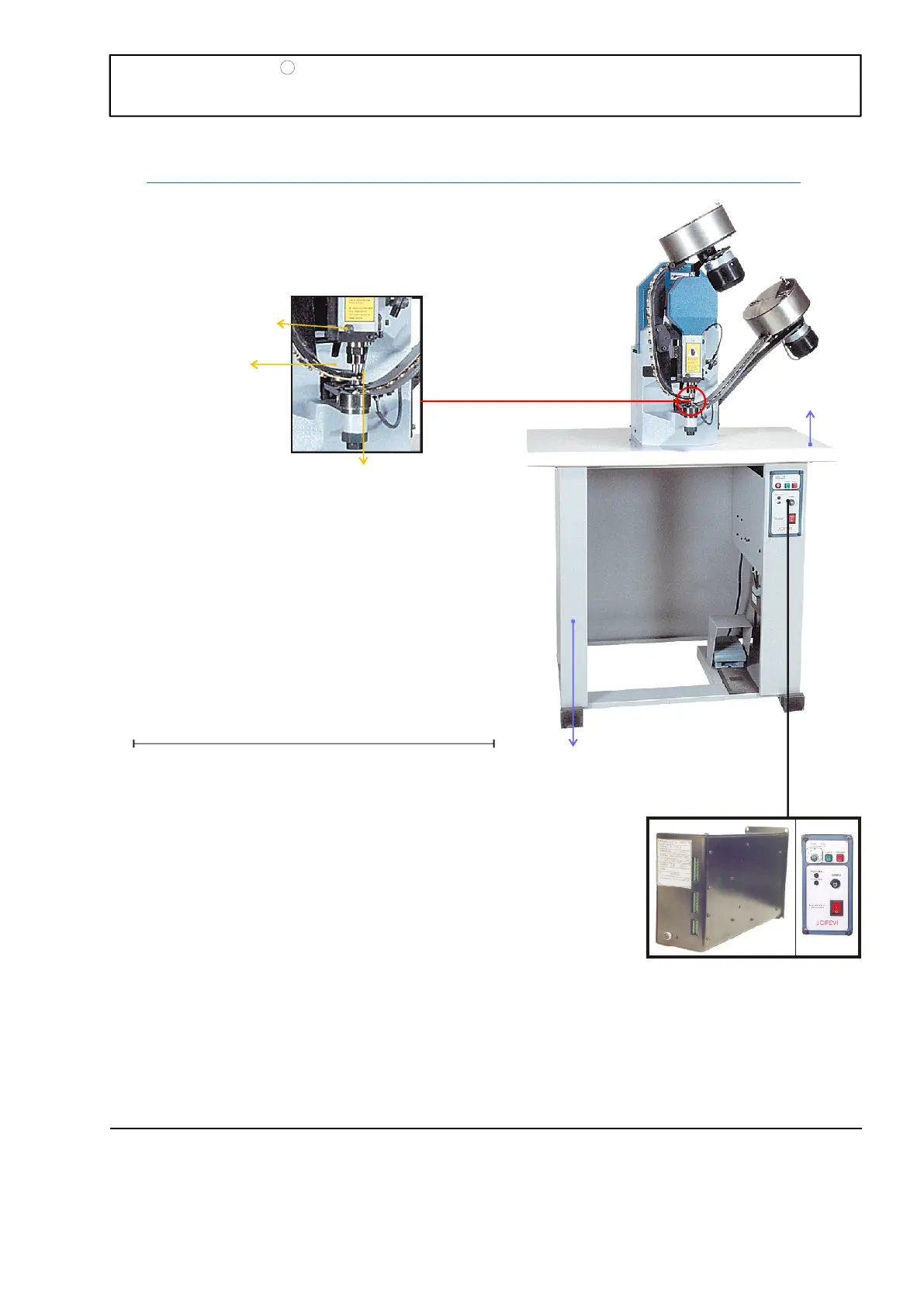

The most dangerous zone in the J-239, is the
denominated “ ”.
Never manipulate this zone without unplugging the
machine from the electrical source.
This zone is protected with an acrylic lid and a protection
ring that prevent the fingers from getting in this area.
Grommeting area
BEFORE STARTING THE MACHINE READ THESE WARNINGS CAREFULLY.
The is the piece that governs all the
functions in the J-239 machine. On it’s front end are located
the control panel with the switches and indication leads.
The controller goes in from the front and is attached with 4
allen screws.
The controler is never to be manipulated or opened. In case of
an IMO V3 unit breakdown, bring out the whole unit through
the cover which is situated on the right-hand side of the
metallic stand, removing the electric cables in its back side,
and after this install a new IMO V3 UNIT.
The IMO V3 controller has a serial number located at the back
for identification.
IMO V3 controller
Grommeting area
Control panel
Electronic unit “IMO V3”
Part nº 167 acrylic
shield
Part nº 168 Screw for the
acrylic shiedl (2)
Part nº 165
Safety ring
Part nº 165
Safety ring
DANGEROUS AREA
Part nº 354
Wooden base
Part nº 354
Wooden base
Part nº 353
Metallic stand
Part nº 353
Metallic stand
