User and Installaon Manual
Compact MPA

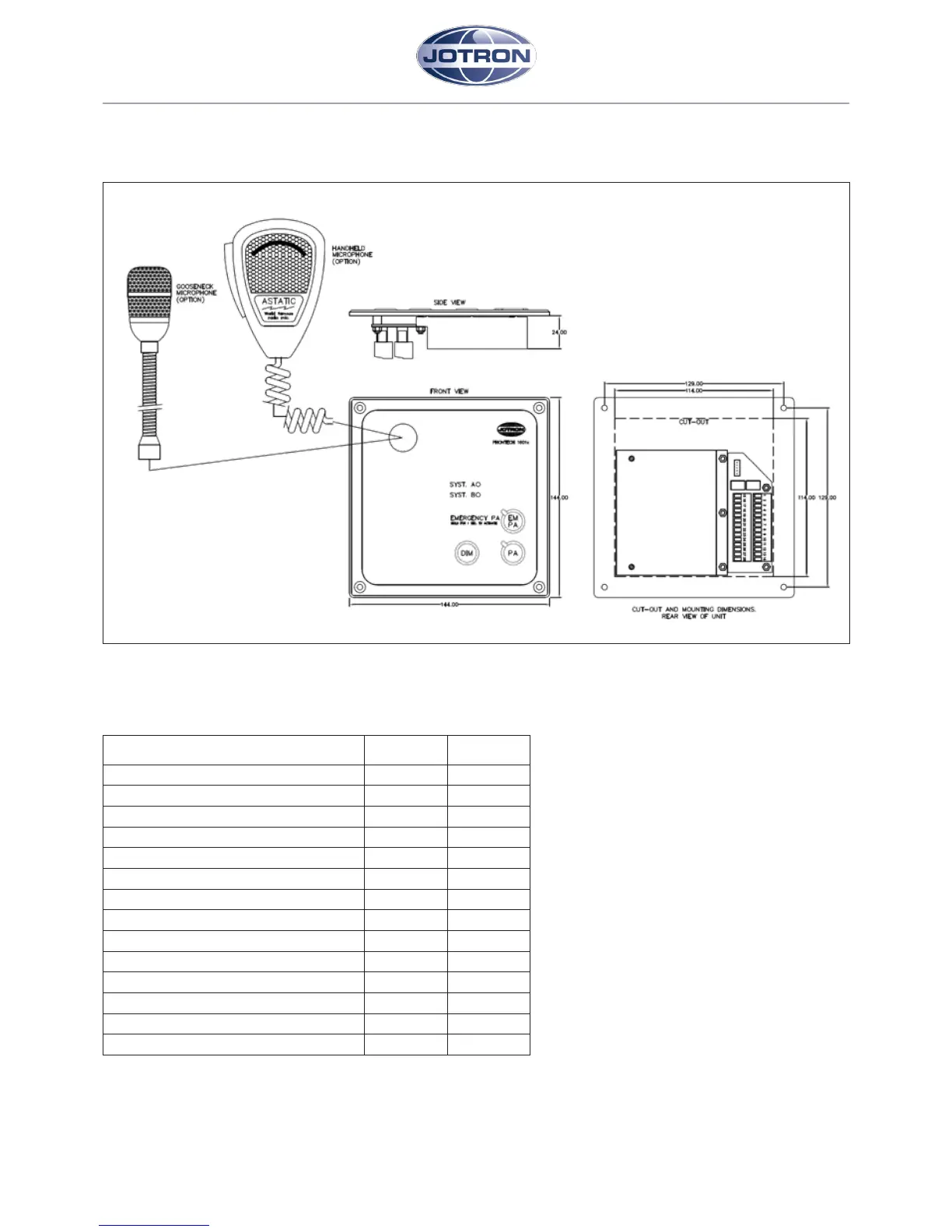

9.4 MPA 1601 - MECHANICAL LAYOUT
9.5 MPA 1601 - EXTERNAL CONNECTION
 System A System B
Local loudspeaker input 1 15
Local loudspeaker input 2 16
Local loudspeaker input Screen 3 17
Local loudspeaker output 4 18
Local loudspeaker output 5 19
Local loudspeaker output Screen 6 20
Audio + 7 21
Audio - 8 22
Audio Screen 9 23
RS485- 10 24
RS485+ 11 25
NC 12 26
+24VDC 13 27
0V 14 28
