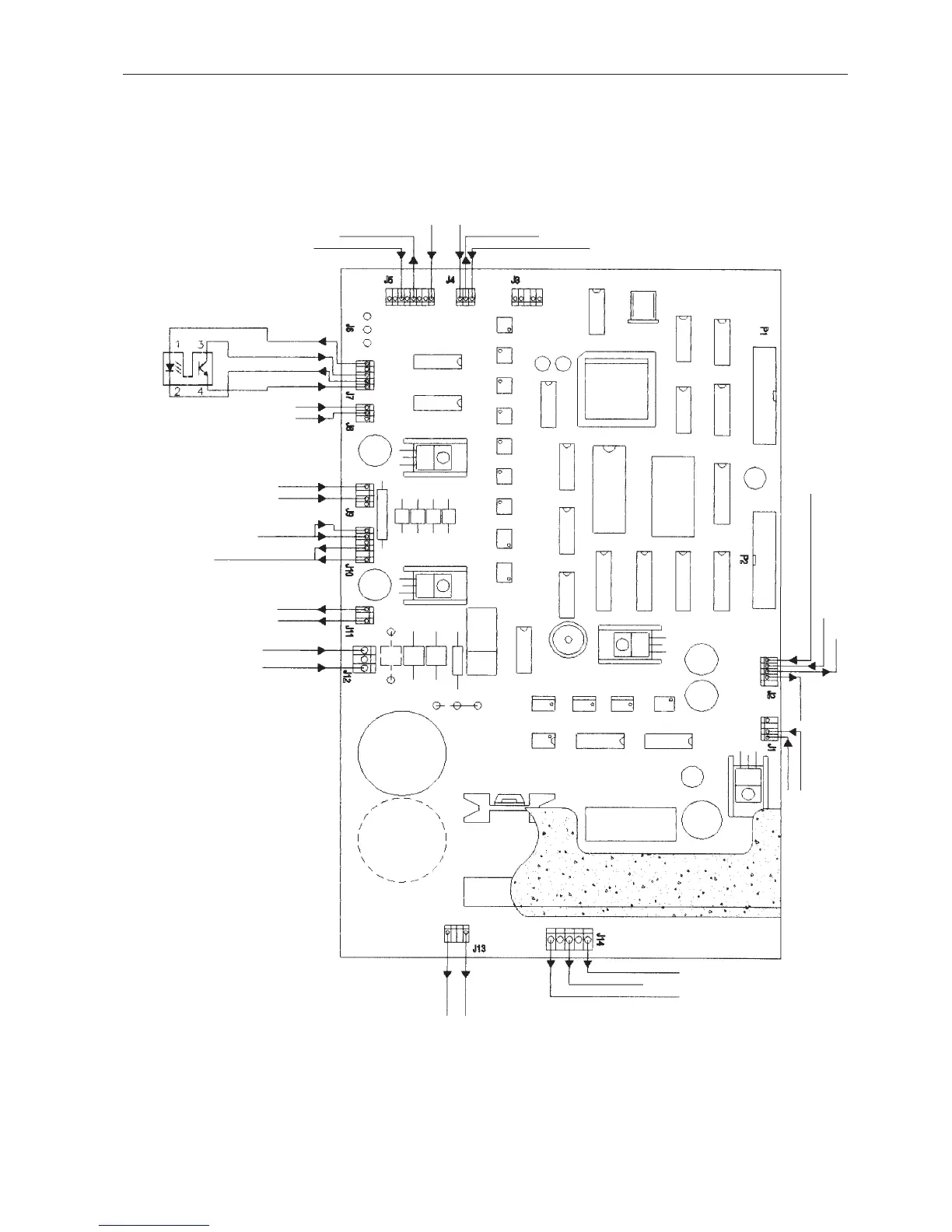

2.4.7. INPUT - OUTPUT
+12 V
PROBE (°C)
(BR4i)
GROUND/EARTH
IMBALANCE
OPTICAL TACHO
MOTOR OVERTEMP +
SOLENOID SWITCH
230 VAC INPUT
300 VDC BUS
300 V BUS
BRAKING
RESISTOR
MOTOR CONNECTION
24 VAC FOR 15 V REGUL MOTOR CONTROL ZONE
13 VCC OUTPUT FOR REGUL 5 V DISPLAY
9 VAC INPUT FOR 5 V REGUL MICRO ZONE
DISPLAYSKEYBOARD + LEDS
18 VAC
INPUT
LID
SWITCHES
SOLENOID
COMMAND
COOLING
ON/OFF
