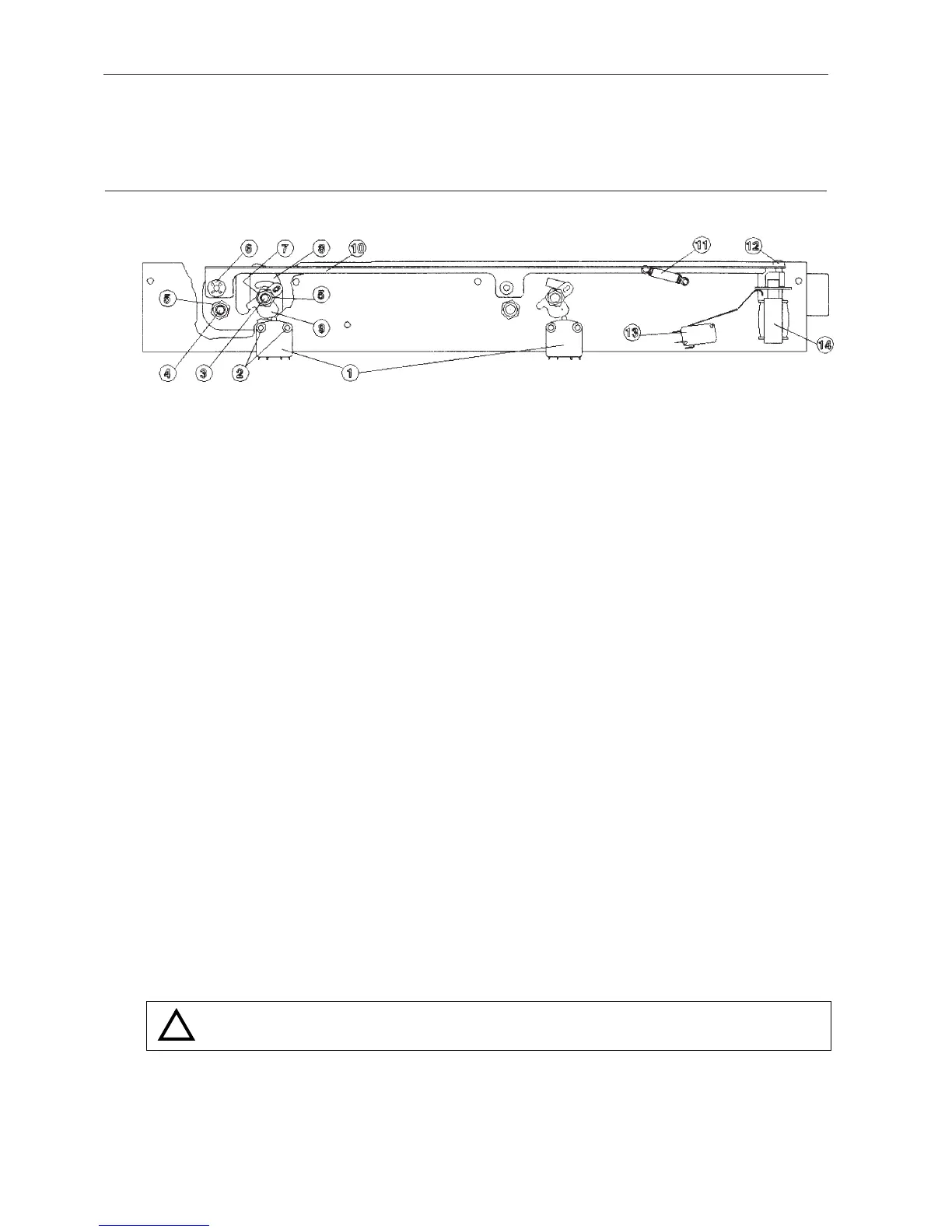

4.4. LID LOCK ASSEMBLY ELEMENT REPLACEMENT
4.4.1. LID LOCK MICROSWITCH REPLACEMENT
Dismounting
- Disconnect the microswitch.
- Unscrew the mounting bolts (2), dismount the microswitch.
Refitting
- Carry out the above operations in the reverse order. Check the microswitch rod does not hit the cam
when the lid is open to avoid false alarm.
4.4.2. LID LOCK REPLACEMENT
Dismounting
- Unscrew the self locking nuts (5).
- Extract the screw (4) and the cam (9).
- Extract the serrated lock washer (6).
- Unscrew the bolt (7) located behind the cam (9).
- Maintaining the lock (8), unscrew and extract the screw (3).
4.4.3. LOCK SOLENOID MICROSWITCH REPLACEMENT
Dismounting
- Disconnect the microswitch (13).
- Maintaining it, unscrew the screw located on the diagonal
Refitting
- Carry out the above operations in the reverse order.
WARNING : THE MICROSWITCH ROD HAS TO BE SHAPED TO WORK PROPERLY AND TO
GIVE A GOOD STROKE TO THE SOLENOID MOBILE CORE.
!
