4
Initial Testing and Setup

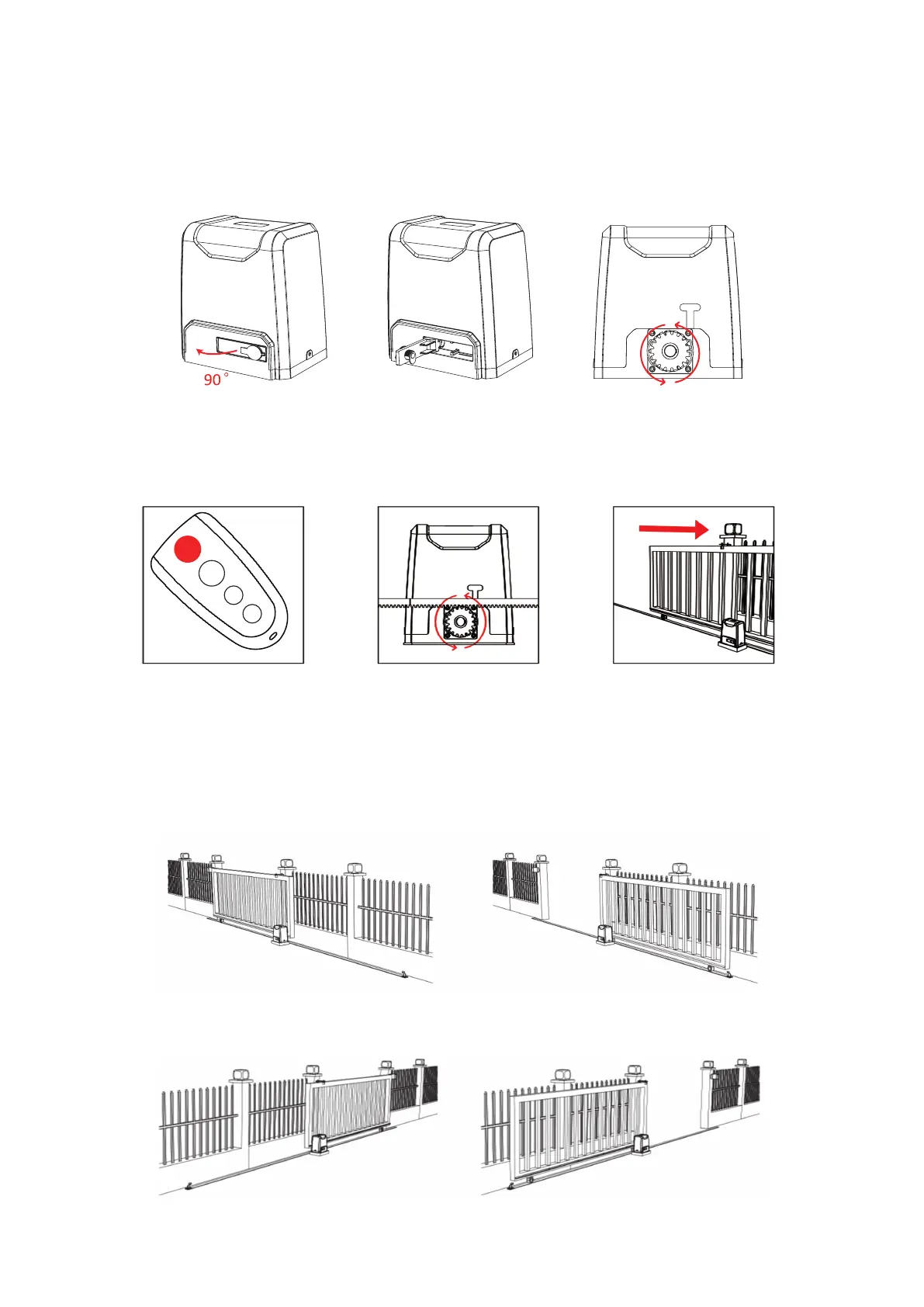

1. When you rst receive your motor (A), use one of the manual release keys (B) to open the motor’s release bar
90°. This releases the main gear’s normal locking mechanism for manual testing. Conrm that the gear rotates
freely and smoothly by hand. Close the release bar and lock the gear back into its normal operation.
2. Plug the motor into any stable, compatible, and well-grounded power source. Use one of the provided remote
controls (C) to conrm its operation. The top button on both remotes should come already paired to your motor’s
circuit board. If they are not, see the instructions for Remote Pairing below.
The default setting for this gate opener is single-button control, which helps prevent accidents and malfunctions
from contradictory inputs. Press the top button once to start the motor. This should cause the main gear to begin
turning anti-clockwise, which opens gates towards the right. If you will need to install your opener on the left side
of your gate, see the instructions for Reversing Direction below.
Standard Right Side Installation
Closed
Closed
Open
Open
Optional Left Side Installation
INSTALLATION
