JP Selecta 4002136 - Electrical Diagram

J.P. SELECTA s.a.u.
Ctra. NII Km 585.1 Abrera 08630 (Barcelona) España
e-mail: selecta @jpselecta.es - website: http://www.jpselecta.es
Tel 34 937 700 877 Fax 34 937 702 362
MANUAL DE INSTRUCCIONES CODIGO 80219 REV E MAR/2017
(Sujetas a modificaciones sin previo aviso)
Pag.: 30
1
14
1
C
2
C
10
OPCIONAL
3
C
5
6
9
15
K12
9V
11
20V
K7
7
4
12
8
13
16
9
14
TIERRA
C
14V

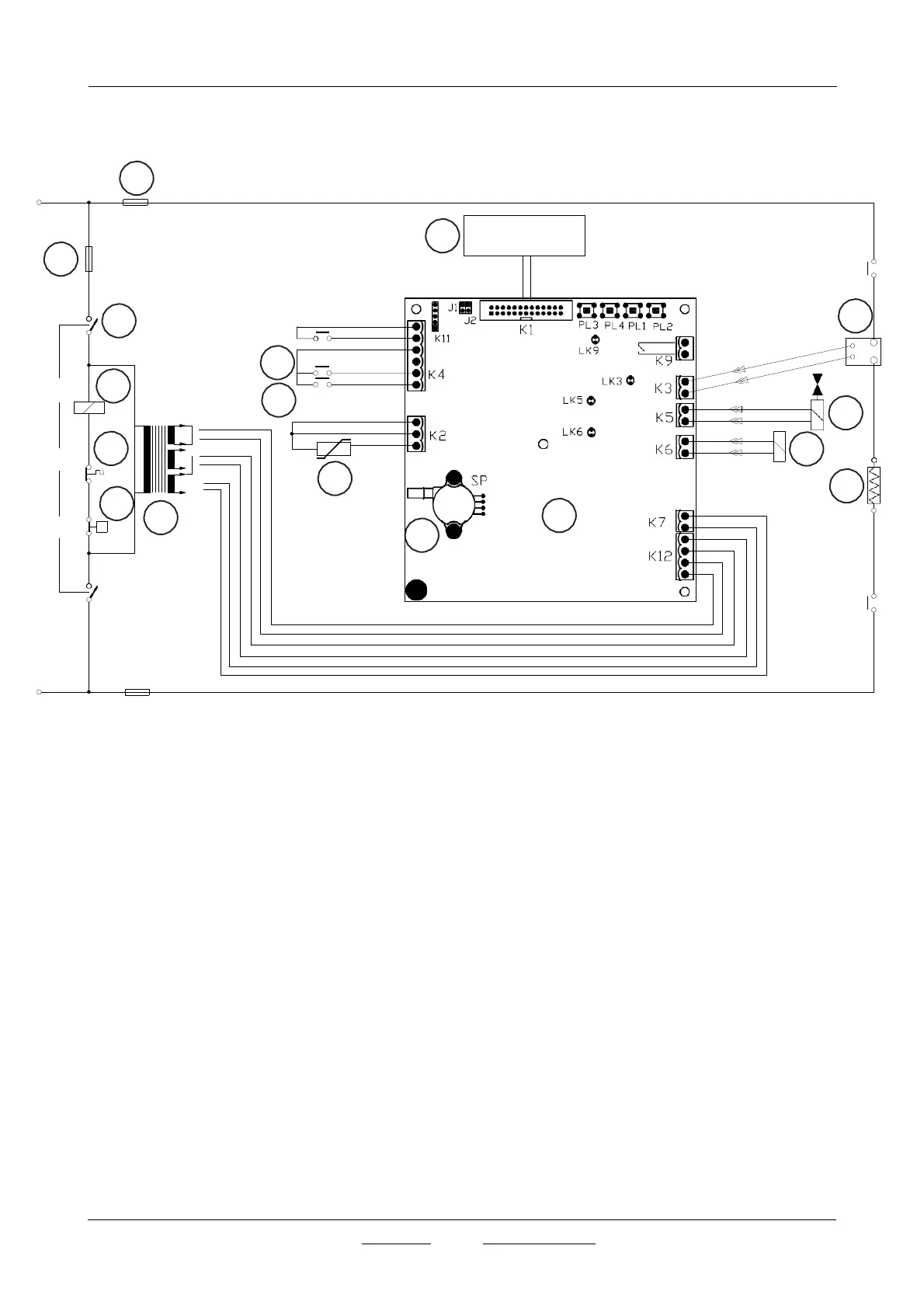

12 Electrical Diagram
1
Pos.
1
Description
Circuit control fuse
Part no.
15411
2
Switch
20096
3
Contactor (c)
13006
4
Pressure switch
16212
5
Door microrruptor
20002
6
Valve microrruptor
20067
7
Pt100 probe
43071
8
Transformer
45076
9
Purge electrovalve
16057
10
Solid relay
36027
11
Solenoid electromagnet block lid
16055
12
Heating element
39158/39001
13
Power circuit
29360/29361/29362
14
Frontal circuit
29358
15
Thermostat
43031
16
Pressure sensor
-------
17
Power fuses
-------
