JPM MPS2 - Page 9

6
Hopper Supply VHOP
Voltage - 110v AC auto winding on primary.
Current - 1.3 A.
Tolerance - +/- 10%.
System Monitor Voltage VMON
Voltage - 48v AC peak to peak.
Current - 100 mA max.
Tolerance - +/- 2.5%.
Video Monitor Supply
Voltage - 128v AC.
Current - 1 A.
Tolerance - 10%.
NB

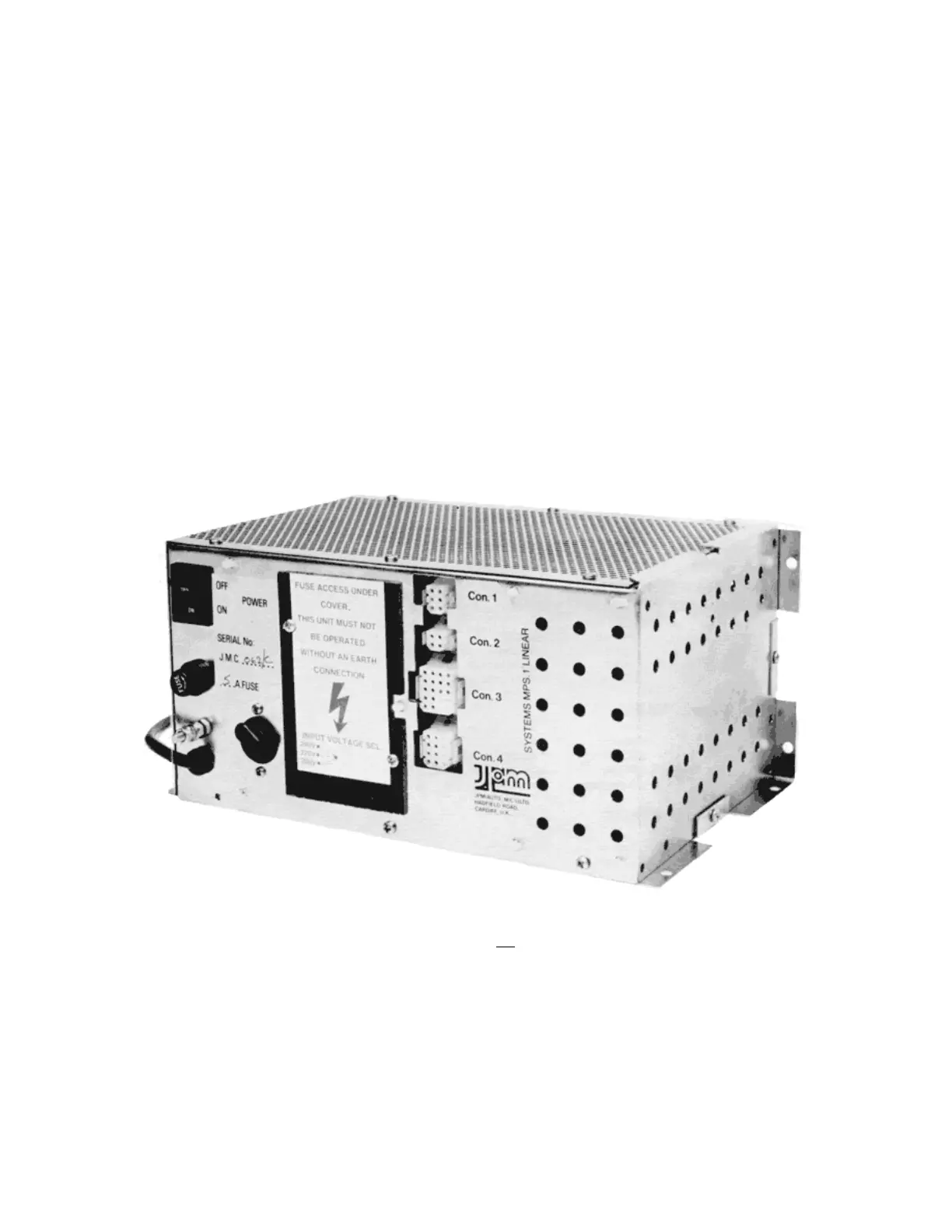

It is essential that the primary fuse is rated at 2A quickblow not 5A as illustrated in the above photograph.
