JPT YDFLP-60-M7-L1-R User Manual

YDFLP-60-M7-L1-R user manual
File Number: EFLP001-B
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2018. 4
8
2. Installation

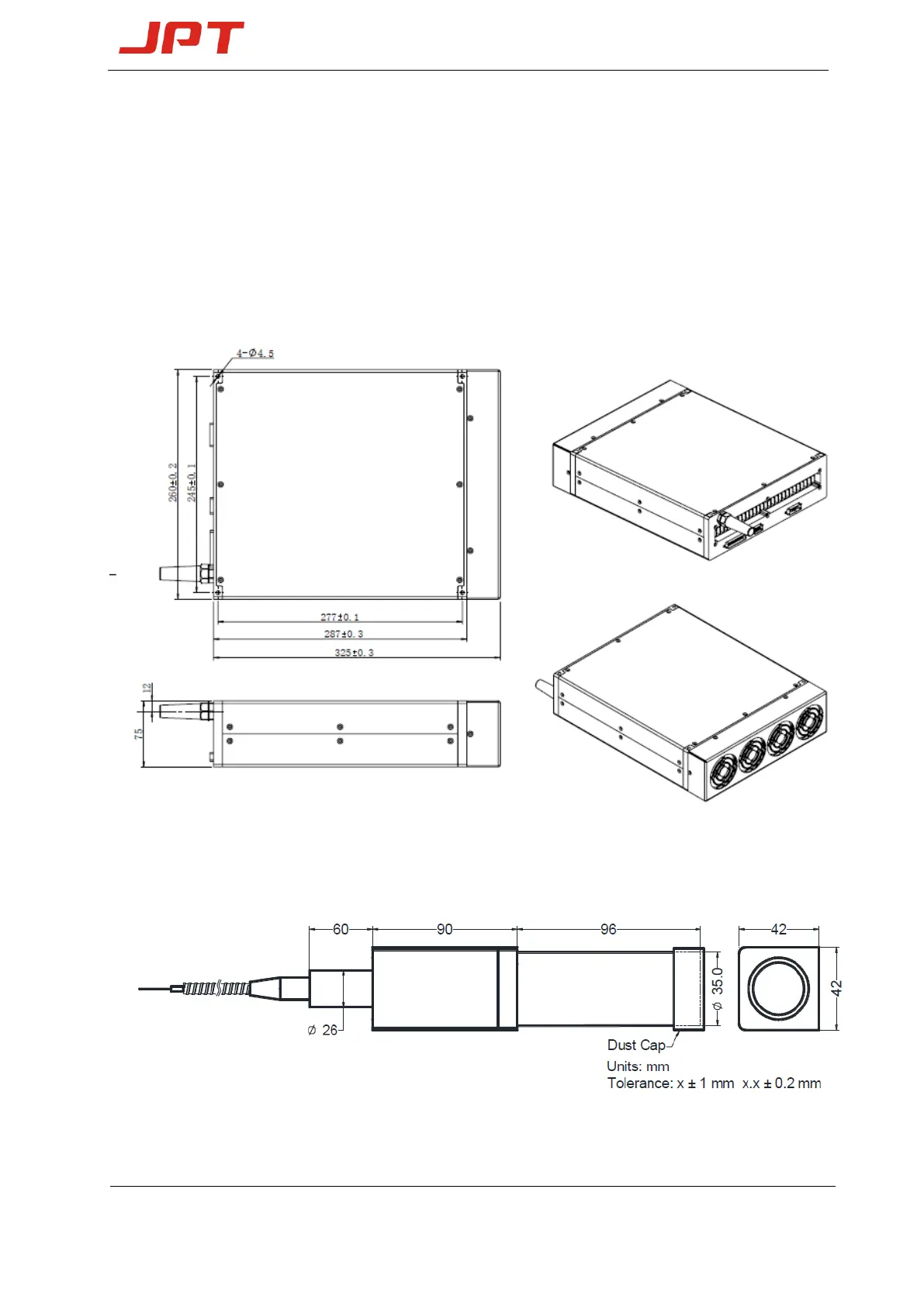

2.1 Dimension
1．Dimension of main body
Figure 5 Mechanical Dimension of Fiber Laser Module (Unit: mm)
2. Mechanical Dimension of the output isolator.
Figure 6 Mechanical Dimension of the output isolator (Unit: mm)
The exact size of laser head. (Unit: mm) (cable length can be customized <10m.)
