Table 11 Pulse width control instruction code
Instruction
Instruction Code
Description
Set-up pulse width
0x01
Set-up pulse width（ns）
It takes less than 50ns to finish the fiber laser pulse width initialization.
Remarks: If Instruction code transmit 3 * 0x01 instruction, that will not be accept by the laser..
3.3.4 Pulse energy control clock diagram

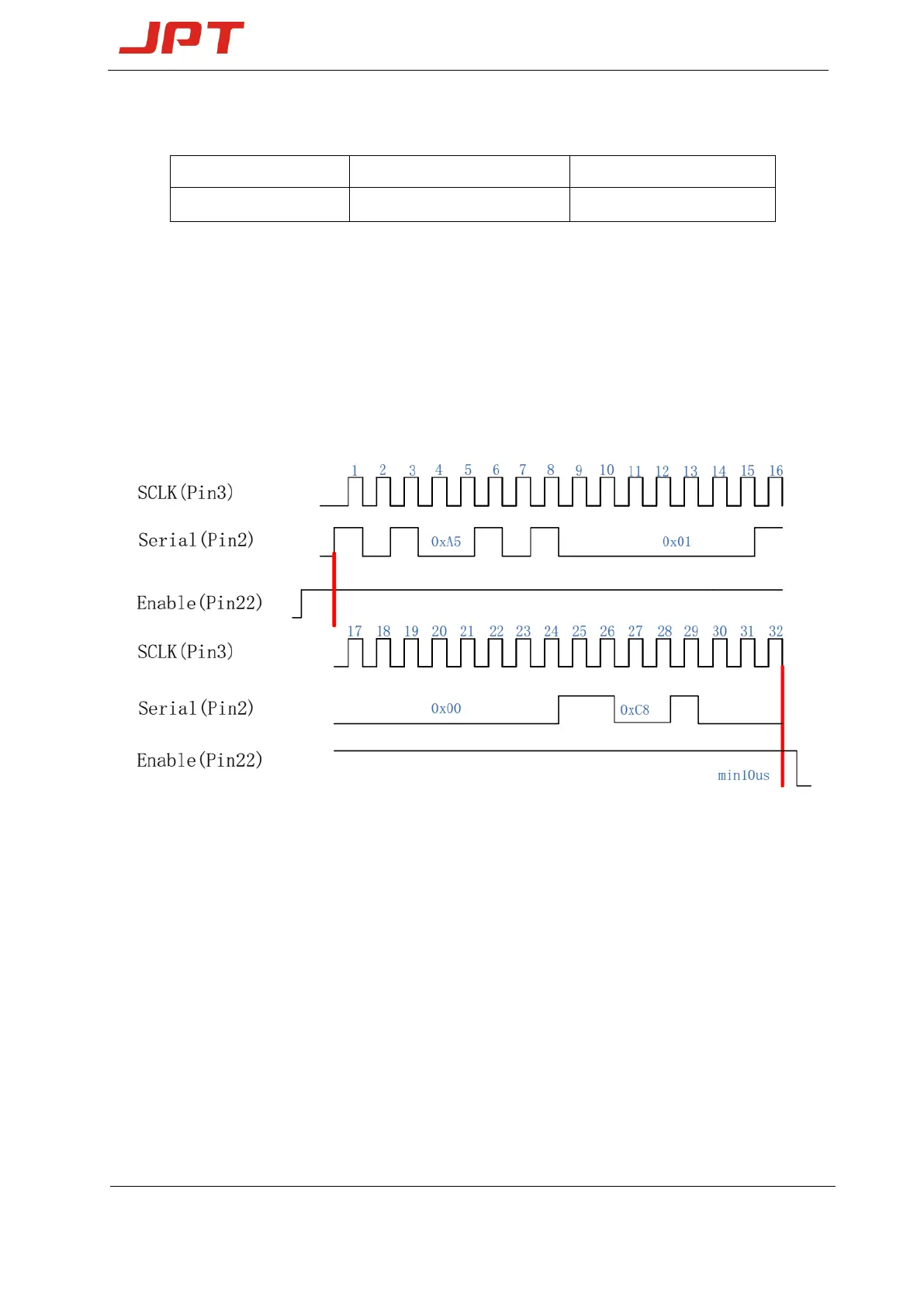

Below is the 200ns pulse width sample serial clock diagram, used the 0x01 instruction:
0XA5/0X01/0x00/0XC8 0x00 and 0xC8 representative pulse width
Figure 12 Pulse control clock diagram
The parameters of this instruction are the binary values of the pulse width. Users can compile
any values of pulse width, but the laser can only receive the signals of specified pulse width
(please refer to the user manual for specific pulse width). If the value of pulse width is out of the
range of specified pulse width, the laser will choose the default pulse width set last time.
