JPT YDFLP M Series User Manual

YDFLP-C-30-M7-S-X user manual
File Number: EFLP001-B
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2020. 8
8
2. Installation
2.1 Dimension
1
．

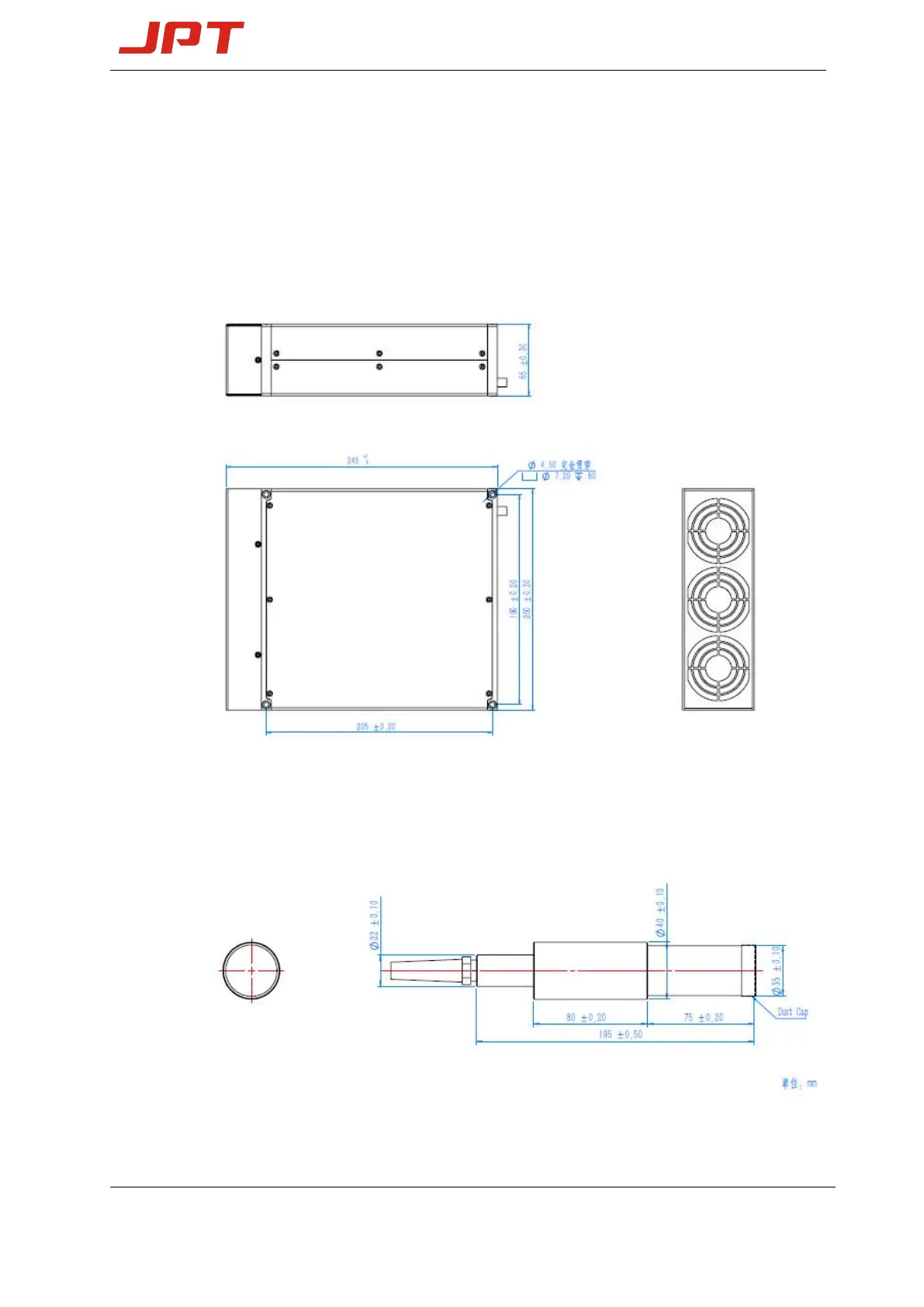

Dimension of main body
Figure 5 Mechanical Dimension of Fiber Laser Module (Unit: mm)
2. Mechanical Dimension of the output isolator.
Figure 6 Mechanical Dimension of the output isolator (Unit: mm)
