JPT YDFLP M Series User Manual

YDFLP-C-30-M7-S-X user manual
File Number: EFLP001-B
Shenzhen JPT Opto -Electronics Co. Ltd.
Version :B Date:2020. 8
10
3.Laser connector
3.1 Power Supply Interface
The power connector is DB-7W2 type (Male), and the pins are as follow Table 6:
Table 6
PIN#
Description
A1
+24VDC, power supply for laser
A2
24VDC negative
1，3，4
No need to connect
2
+24VDC, control Circuit Power supply
5
Connect to ground
PIN_A1 and PIN_2 in Table 6 connect to “+” in Figure 8 , PIN_A2 connect to
“
-
”
,PIN_ 5
Connect to“GND”. If need power separately, please separate the PIN_A1 and PIN_2.

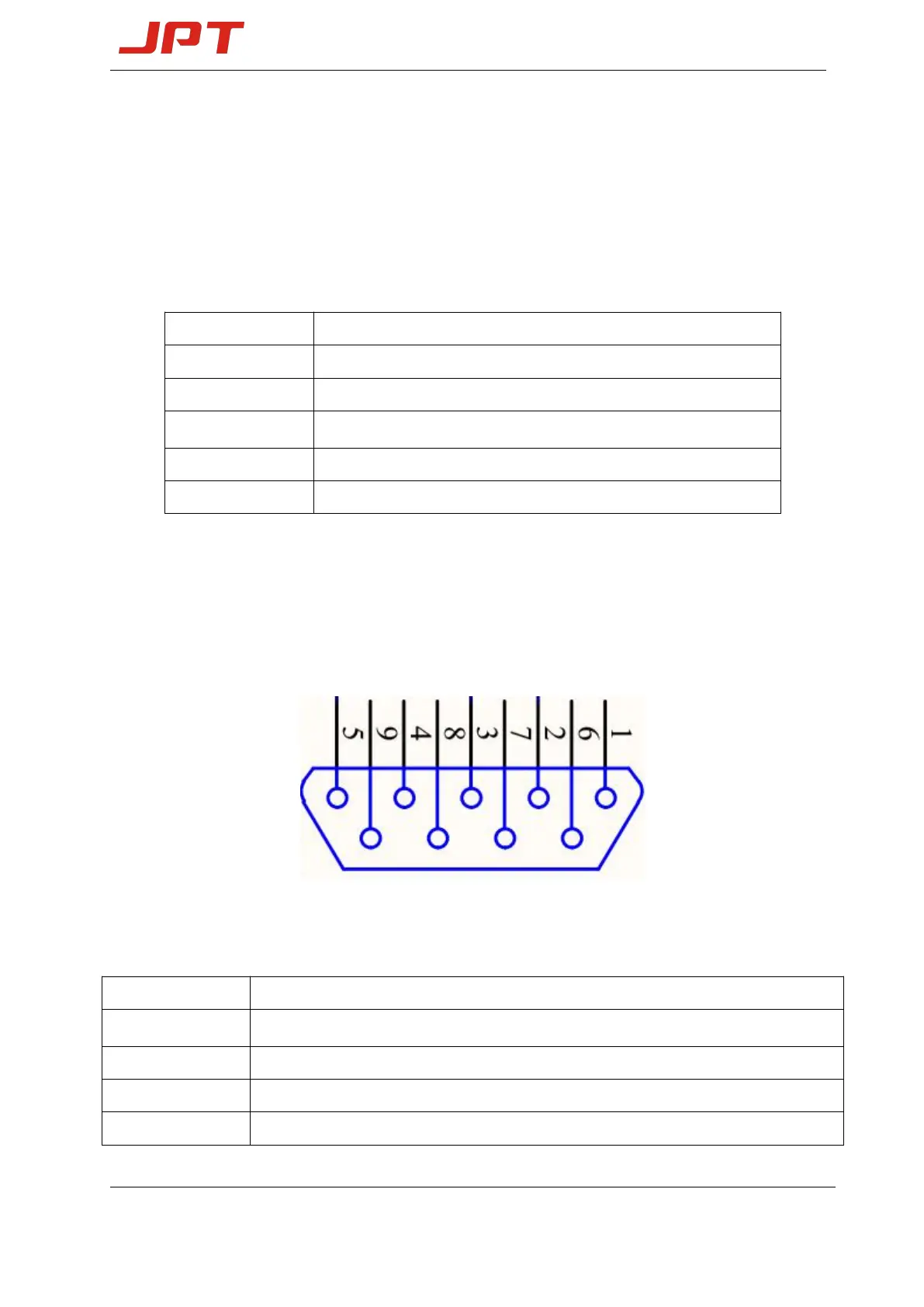

3.2 RS232 connector
Figure 9 RS232 connector DB9
Table 7
PIN#
Description
1
，
4
，
6-9
No need to connect
2
RxD
3
TxD
5
GND
