JR PCM9X II Programming

www.modelflight.com.au – World’s best source of JR products
Step #21 Flap Ra
t
e, Flape
r
on Mix and Fli
g
ht Mode Dela
y
A
d
j
ust
Flape
r
on (cambe
r
) Mix

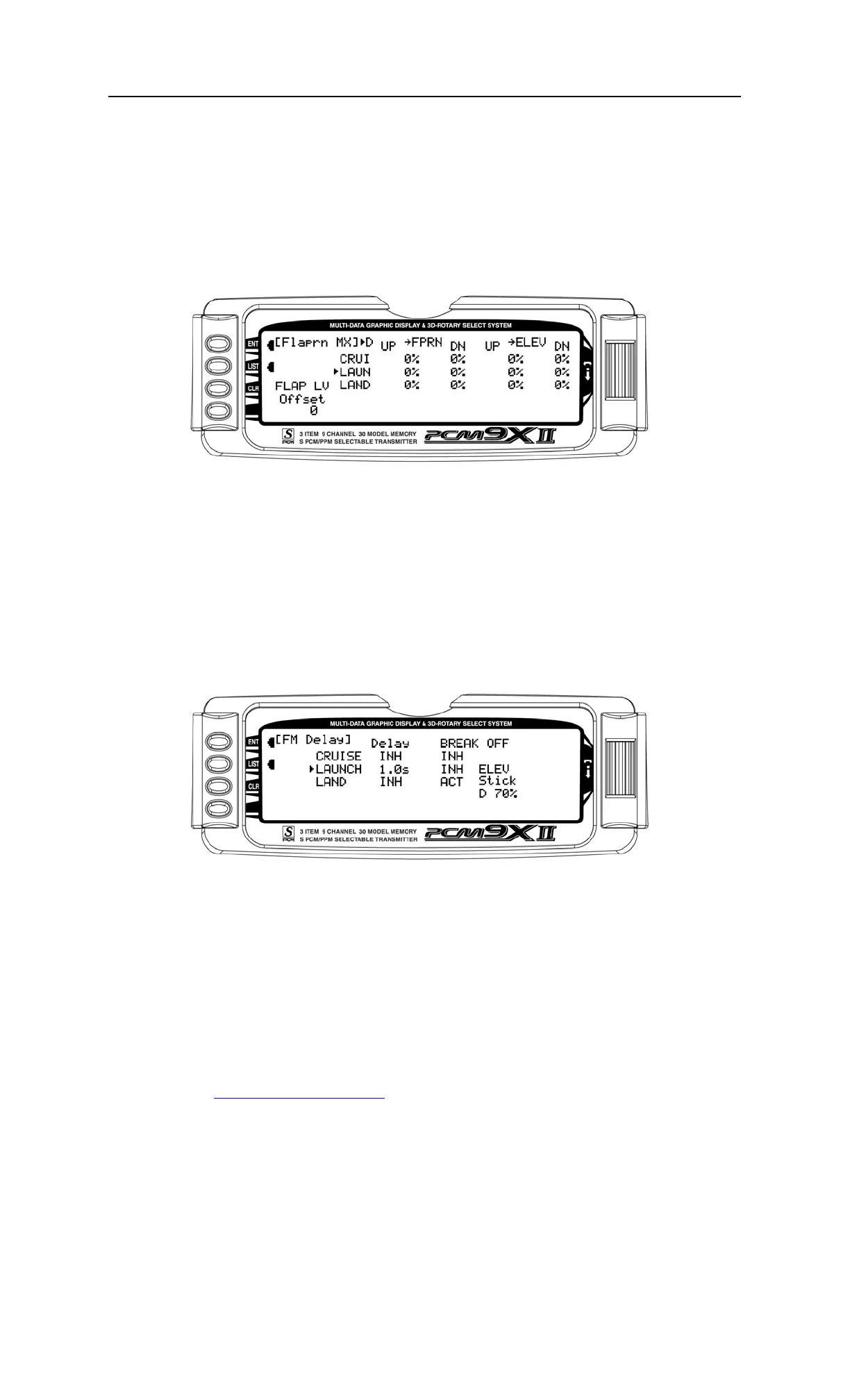

N o t e: Flap rate must be set before flaperon mix. In
FUNC. L IST rotate the Selector until F l a p r n MX is
highlighted. Press the Selector to access the Camber
Mix menu. Rotate the Selector to highlight the launch
FPRN down value then press the Selector to access this
value.
With the flight mode switch in the upper launch
mode, move the left side lever to the lower most position
and adjust the down value to the desired
flaperon position. Press the Selector to store the value.
Now with the flight mode switch in the upper launch
mode, move the left side lever to the uppermost position
and
adjust the up value to the desired flaperon position
and store by pressing the Selector. Repeat the process
for the up and down elevator camber mix. Press the
LIST button to return to the Function Mode screen.
Flight Mode Delay
The flight mode delay menu allows the programming of a
delay from 0 to 2 seconds. This delay affects the flap,
flaperon and elevator presets when switching from one
flight mode to another. When inhibited, no delay occurs
and the servo immediately transitions from one preset
trim position to another when the flight modes are
switched. With a delay programmed the transition is
smooth relative to the delay time. A break-off function is
available that can be programmed to override the delay,
based on a selected elevator stick position. For this
setup, we will program a 1.0 second delay for Launch.
In FUNC. L IST rotate the Selector until FM DE L A Y is
highlighted. Press the Selector to access the Flight
Mode Delay menu. Rotate the Selector to highlight the
launch delay value then press the Selector to access
this value. Rotate the Selector to adjust the value to
1.0s (seconds) Press the Selector to store the value.
Press the LIST button to return to the Function Mode
screen.
15 Sail
p
lane P
r
o
g
r
ammin
g
Guide
