3.5 GENERAL OPERATIONS
3ņ38
3
y
y y
[III] Parallel Cursor Start Point Display Mode (Floating)
If this function is set to L/L FIX, and the start point of parallel cursor moves, the start point of the
parallel cursor can be fixed to the latitude/longitude of the start point. If the function is set to
SCREEN FIX, the start point of parallel cursor is fixed within the radar display, and the start point is
fixed to the same place on the display even after the own ship moves.
Procedure 1 Press [RADAR MENU] key.
Press [3] key.
Press [5] key.
Press [2] key.

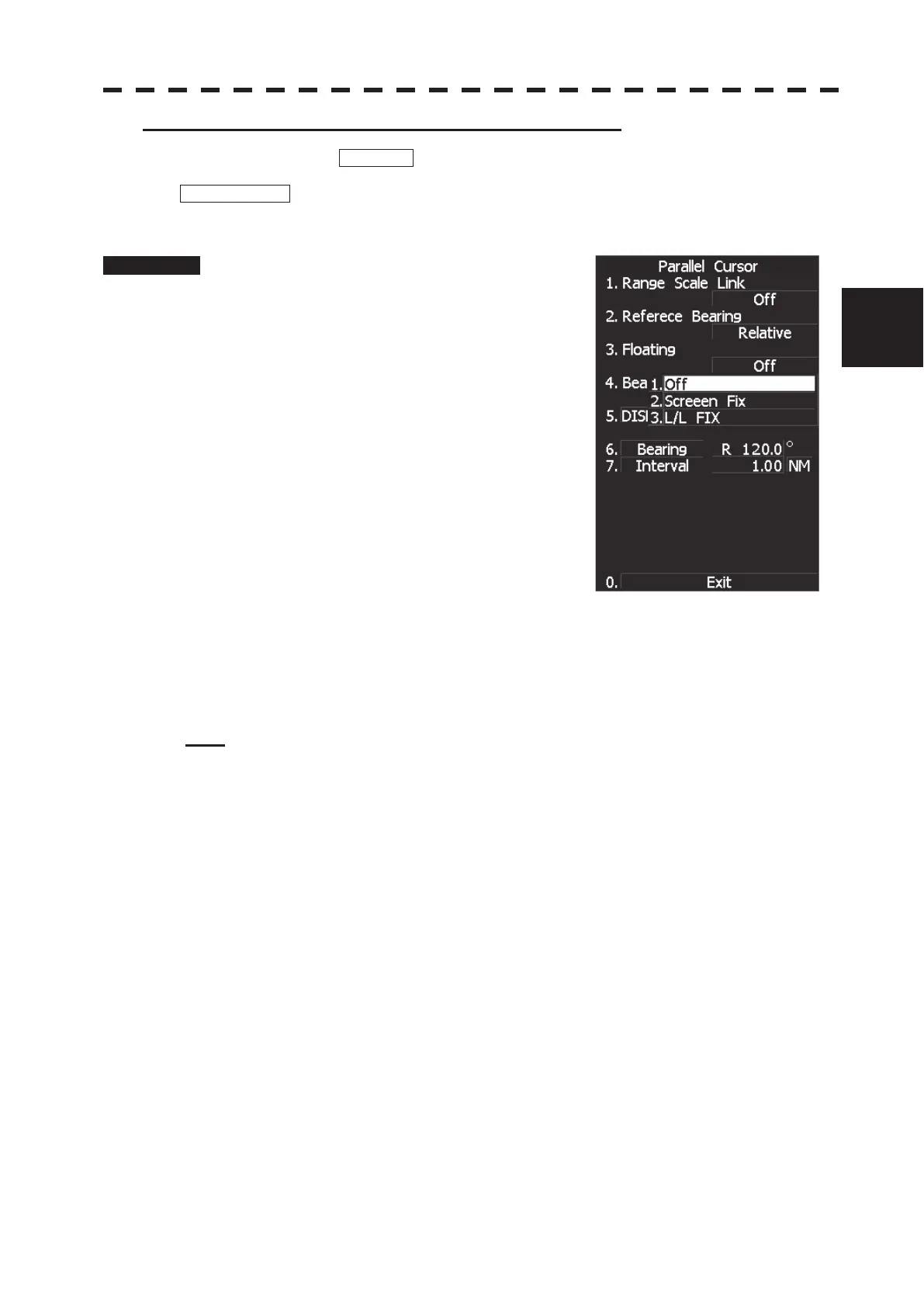

The Parallel Cursor Menu will appear.
2 Press [3] key.
The Floating Setting Menu will appear.
3 Select the item you want to display,
pressing the numeric keys [1] to [3].
OFF: Floating mode OFF
SCREEN FIX: Fixes the start point of parallel
cursor to the radar display.
L/L FIX: Fixes the parallel cursor with latitude and longitude.
* Software button վ located at the top right corner of the radar display described in Section 2.3.3 is also
available for switching.
Note: Setting the function to the L/L Fix mode needs course data and latitude/longitude data.
