JRC JMA-5220-7 - Page 39

To Next Page

To Previous Page

1 - 6

1.4 EXTERIOR DRAWINGS

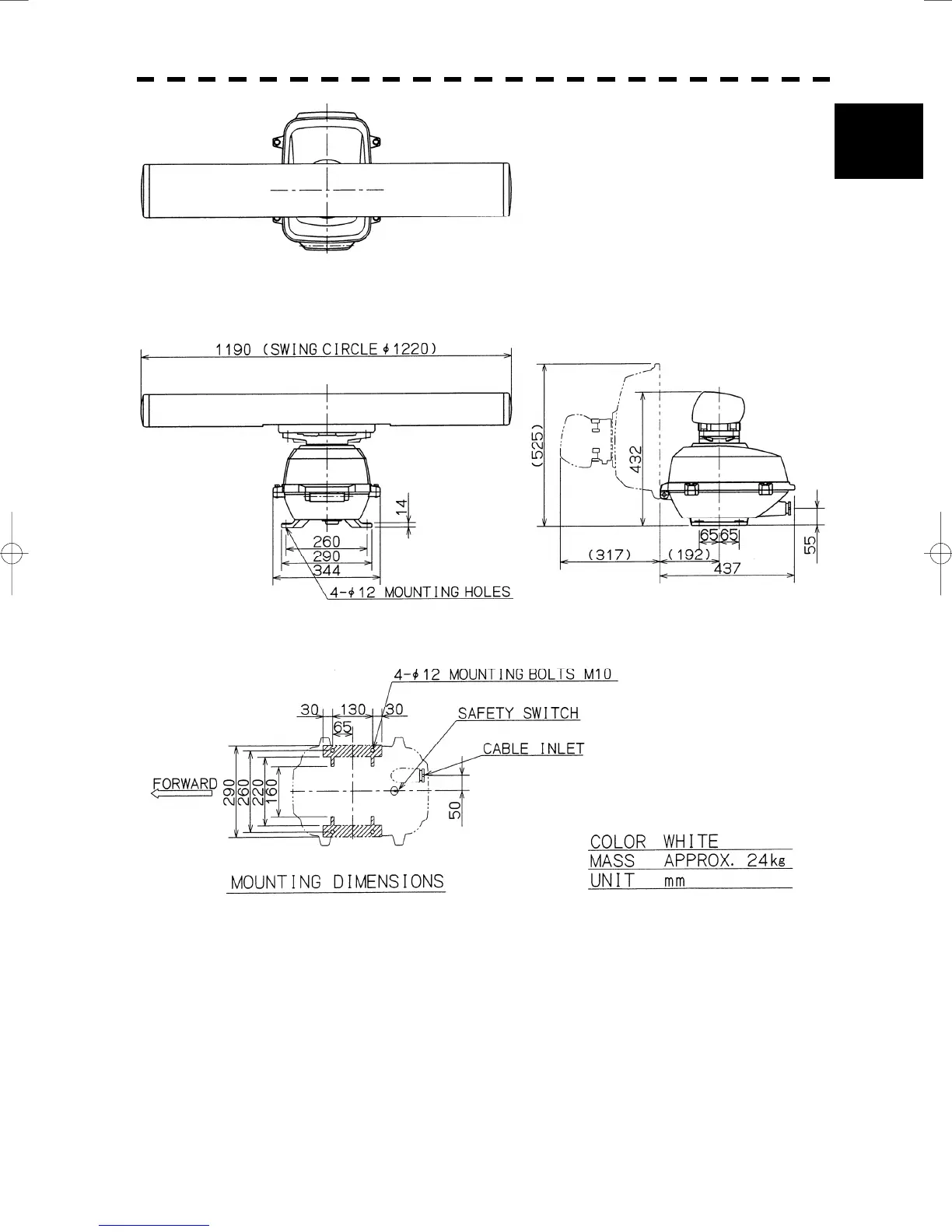

Fig. 1.1 Exterior Drawing of Scanner Unit, Type NKE-2062/HS
