JMA-9100/7100 Installation Manual > 2.INSTALLATION OF SCANNER UNIT > 2.1 EQUIPMENT CABLE
2) 2695110056
ć
2695111153
Remove about one meter of the outer skin, and then process the double braided
shield according to the procedures shown below.

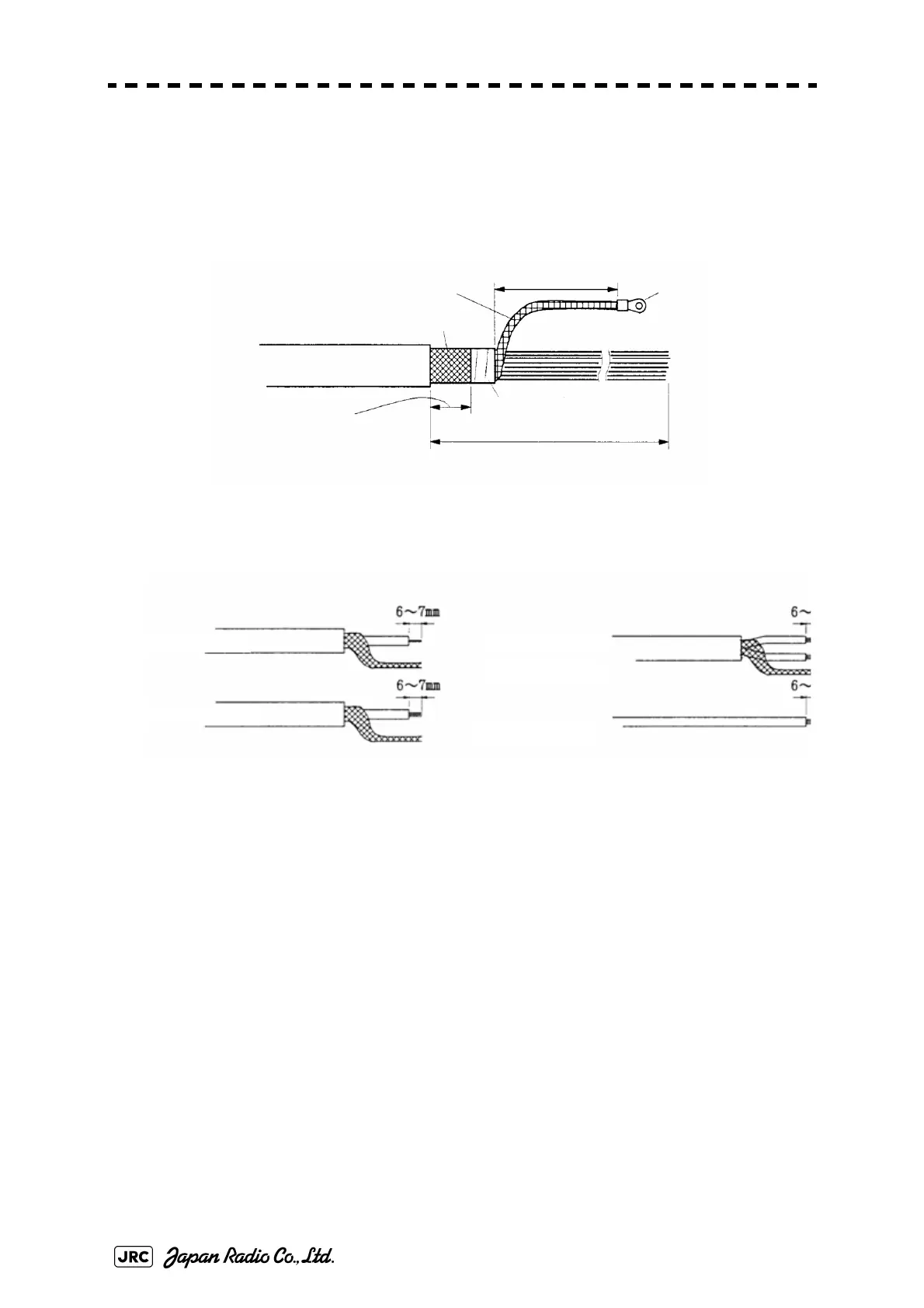

Fig 2-8: 2695110056 Processing of braided shield
Fig 2-9: 2695110056 End processing of each wire
abt. 80 mm
terminal
Inner Shield
Outer Shield
taping
1000 mm
Width for
clamping cable.
30 mm
2695110056
2695111153
abt.
abt.
Shield Cable
Shield Cable
(twisted pair)
Coaxial Cable
Vinyl Cable
To Next Page
