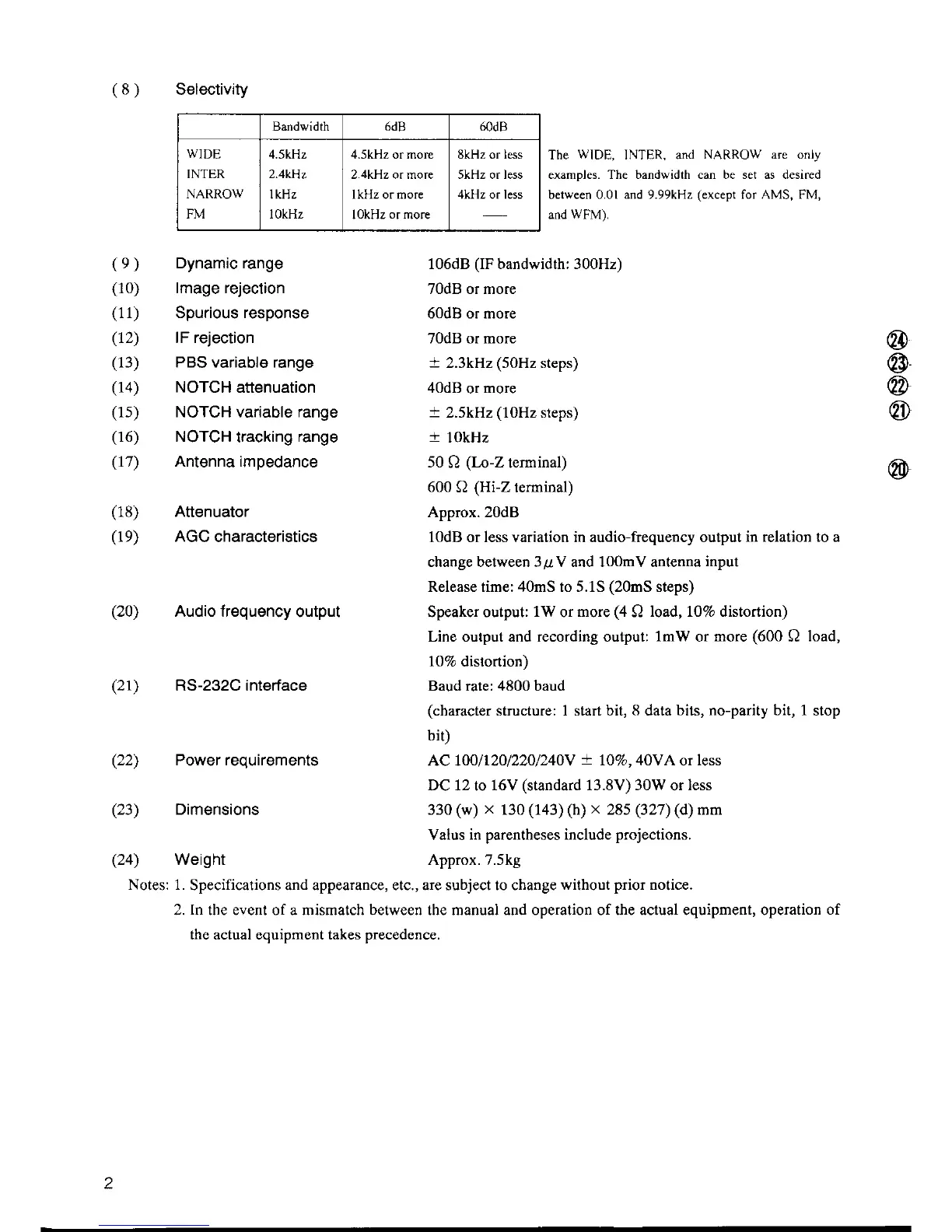

Selectivity
WIDE
INTER
NARROW
FM
Bandwidth
4.5kHz
2.4kHz
1kHz
10kHz
6dB
4.5kHz or more
2.4kHz or more
1kHz or more
10kHz or more
60dB
8kHz or less
5kHz or less
4kHz or less
The WIDE, INTER, and NARROW are only
examples. The bandwidth can be set as desired
between 0.01 and 9.99kHz (except for AMS, FM,
and WFM).
(9 ) Dynamic range
(10) Image rejection
(11) Spurious response
(12) IF rejection
(13) PBS variable range
(14) NOTCH attenuation
(15) NOTCH variable range
(16) NOTCH tracking range
(17) Antenna impedance
(18) Attenuator
(19) AGC characteristics
(20) Audio frequency output
(21) RS-232C interface
(22) Power requirements
(23) Dimensions
(24) Weight
106dB (IF bandwidth: 300Hz)
70dB or more
60dB or more
70dB or more
± 2.3kHz (50Hz steps)
40dB or more
± 2.5kHz (lOHz steps)
± 10kHz
50 Q (Lo-Z terminal)
600 Q (Hi-Z terminal)
Approx. 20dB
lOdB or less variation in audio-frequency output in relation to a
change between 3//V and lOOmV antenna input
Release time: 40mS to 5.IS (20mS steps)
Speaker output: 1W or more (4 Q load, 10% distortion)
Line output and recording output: ImW or more (600 Q load,
10% distortion)
Baud rate: 4800 baud
(character structure: 1 start bit, 8 data bits, no-parity bit, 1 stop
bit)
AC 100/120/220/240V ± 10%, 40VA or less
DC 12 to 16V (standard 13.8V) 30W or less
330 (w) x 130 (143) (h) x 285 (327) (d) mm
Valus in parentheses include projections.
Approx. 7.5kg
Notes: 1. Specifications and appearance, etc., are subject to change without prior notice.
2. In the event of a mismatch between the manual and operation of the actual equipment, operation of
the actual equipment takes precedence.
