2. FRONT PANEL AND REAR PANEL

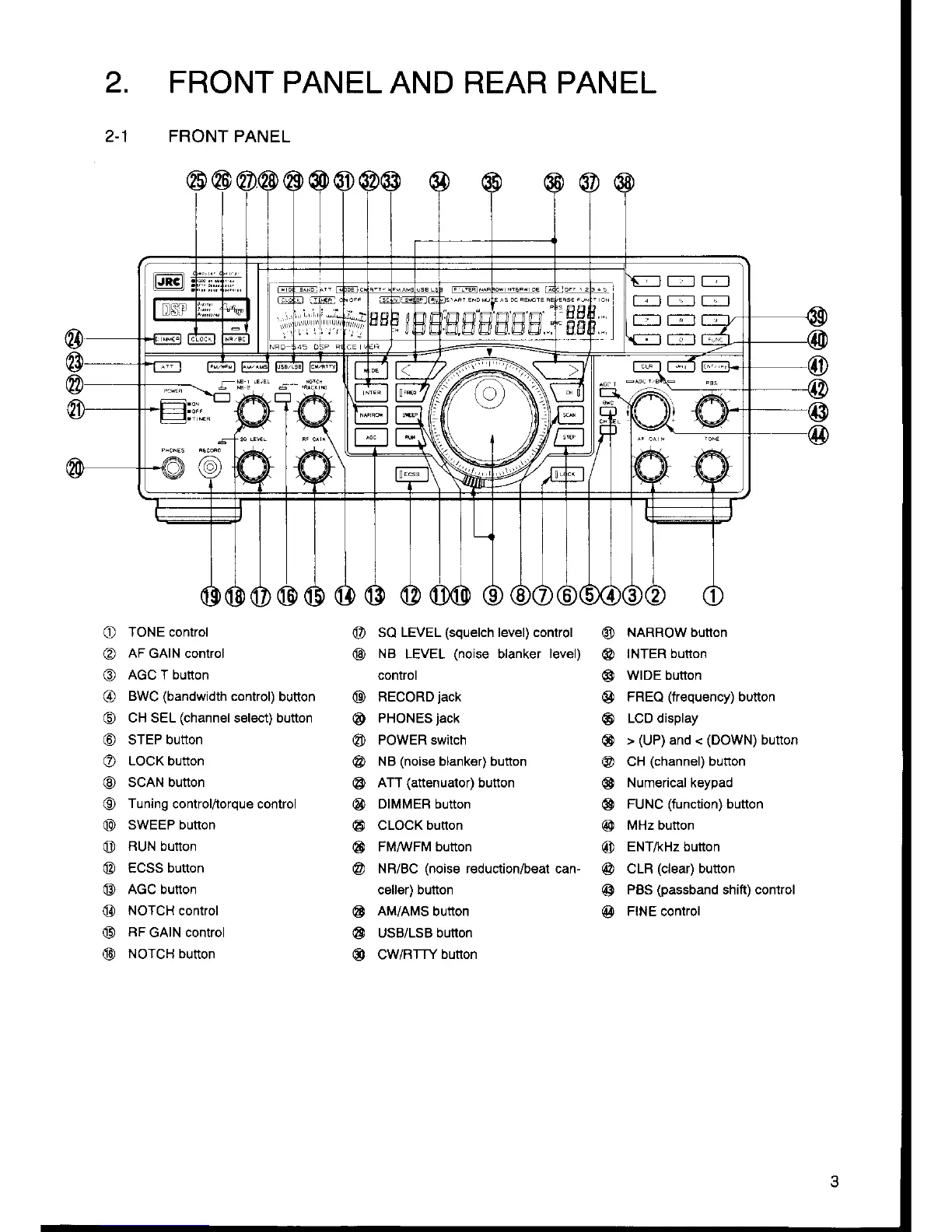

2-1 FRONT PANEL
CD TONE control
(D AF GAIN control
® AGCT button
® BWC (bandwidth control) button
(D CH SEL (channel select) button
© STEP button
® LOCK button
® SCAN button
(D Tuning control/torque control
® SWEEP button
© RUN button
© ECSS button
® AGC button
® NOTCH control
© RF GAIN control
® NOTCH button
SQ LEVEL (squelch level) control
NB LEVEL (noise blanker level)
control
RECORD jack
PHONES jack
POWER switch
NB (noise blanker) button
ATT (attenuator) button
DIMMER button
CLOCK button
FM/WFM button
NR/BC (noise reduction/beat can-
celler) button
AM/AMS button
USB/LSB button
CW/RTTY button
NARROW button
INTER button
WIDE button
FREQ (frequency) button
LCD display
> (UP) and < (DOWN) button
CH (channel) button
Numerical keypad
FUNC (function) button
MHz button
ENT/kHz button
CLR (clear) button
PBS (passband shift) control
FINE control
