JRC NRD-545 Service Manual

2-2

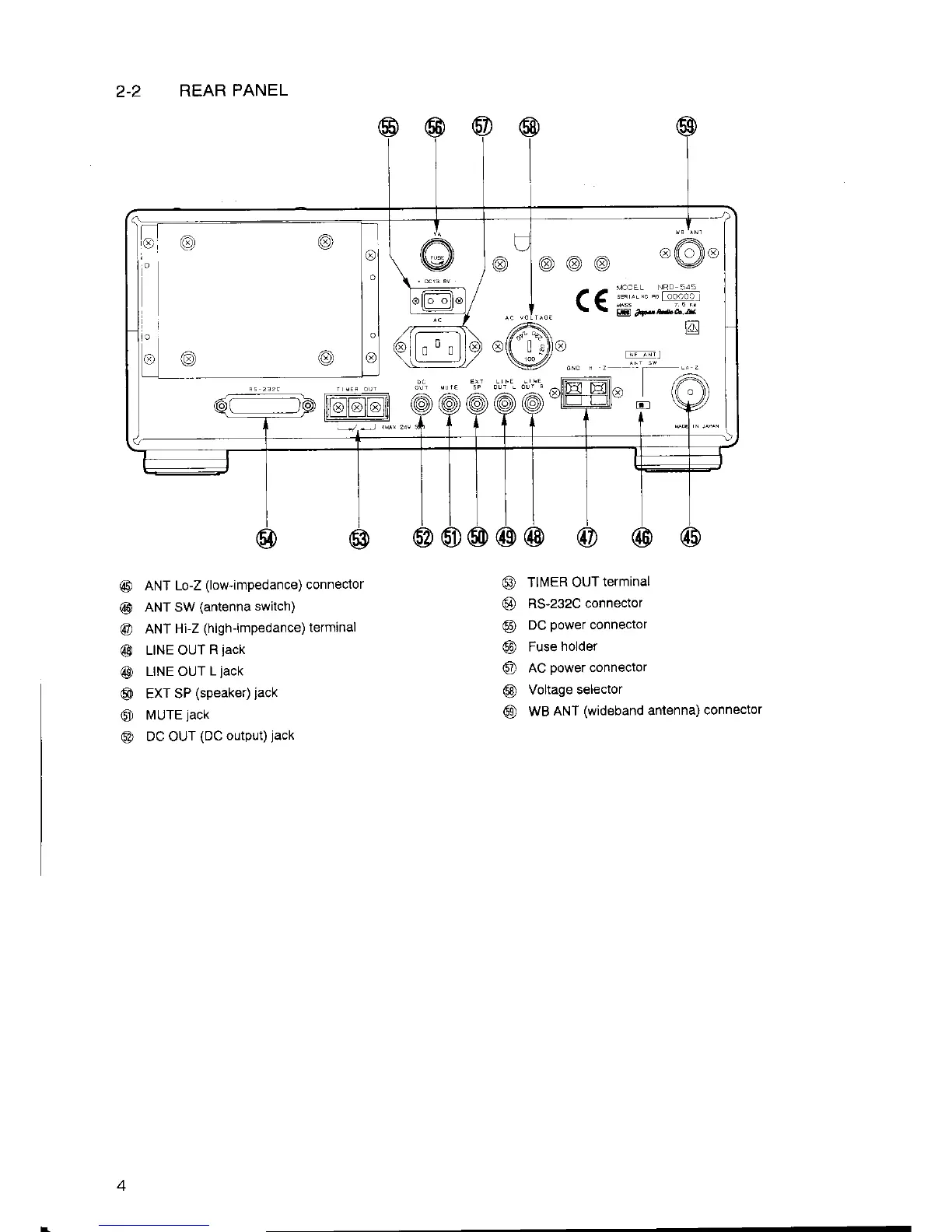

REAR PANEL
ANT Lo-Z (low-impedance) connector
ANT SW (antenna switch)
ANT Hi-Z (high-impedance) terminal
LINE OUT R jack
LINE OUT L jack
EXT SP (speaker) jack
MUTE jack
DC OUT (DC output) jack
TIMER OUT terminal
RS-232C connector
DC power connector
Fuse holder
AC power connector
Voltage selector
WB ANT (wideband antenna) connector
