11 Maintenance Instructions
11.1 General
Proper servicing and adjustment is key to extending the life of your attachment. Carefully inspect and
routinely maintain to avoid costly downtime and repairs.
Check all bolts and nuts after using for several hours to ensure they are secure. Replace any worn, damaged or
missing safety labels.
The parts on your JRCO Tine Rake Dethatcher have been designed specifically for your attachment and should
be replaced with genuine parts from your local JRCO Dealer. Do not alter the equipment in any way.

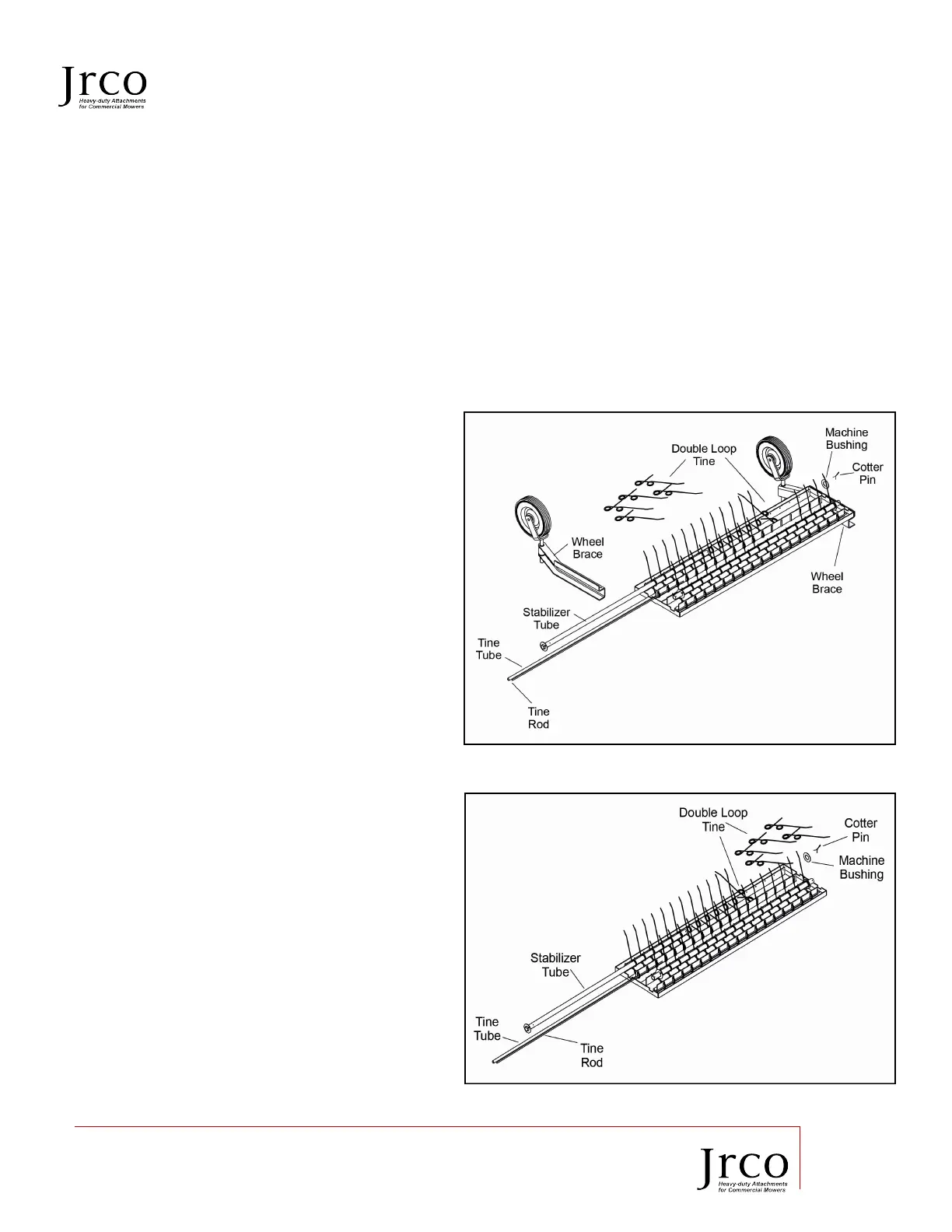

11.2 Replacing Tines
1. Disconnect the rake from the mower, and
place upside down. Remove either wheel
brace assembly.
2. Remove the cotter pin and machine
bushing from the opposite end of the rake
that the wheel brace was removed. Slide
the stabilizer tube (7/8” diameter) out of
the bottom loops of the tines.
3. Lift up slightly and slide out the tine rod
and tine tube from the top tine loop.
4. Remove and replace tines as necessary.
Slide the tine forward in the deck, until the
loop disengages the slot, lift upward and
pull it back, out of the hole.
5. Replace tines by inserting the end into the
round hole, slide forward until the loop
can
go past the deck flange. Push it down and
back into the slot.
6. Insert the tine rod in the back of the top
loop. Insert the tine tube in the front of the
top loop. Be sure they pass through each
tine.
7. Replace the stabilizer tube in the bottom
tine loop and secure with machine
bushing and a new cotter pin.
8. Replace wheel brace.
