Jrco Tine Rake Dethatcher - Assembly and Set-up; 2.1 Packing List

Operator’s Manual Tine Rake Dethatcher
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
800.966.8442
www.jrcoinc.com
5
2 Assembly and Set-up

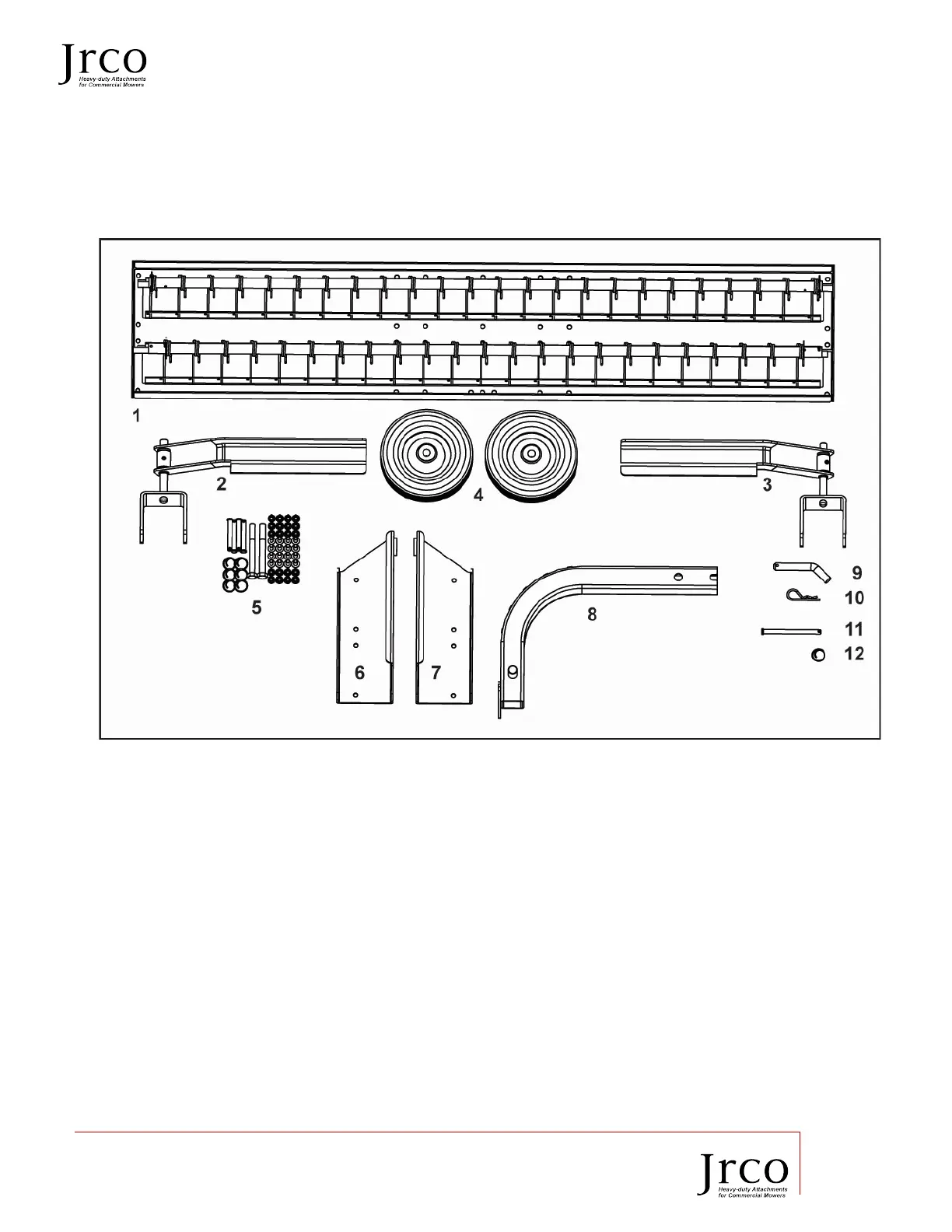

2.1 Packing List
1. Deck assembly 35 tines for 46” and 47 for
60”
2. Yoke/Wheel brace (left)
3. Yoke/Wheel brace (right)
4. Wheel
5. Hardware bag – Rake Assembly
6. Mount Side Plate (Right)
7. Mount Side Plate (Left)
8. Lift Tube, 2” Square
9. Hitch Pin
10. Hairpin Cotter
11. Clevis Pin, 5”
12. Circle cotter
