Operator’s Manual Tine Rake Dethatcher
20195 South Diamond Lake Road, STE 100
Rogers, MN 55374
800.966.8442
www.jrcoinc.com
9

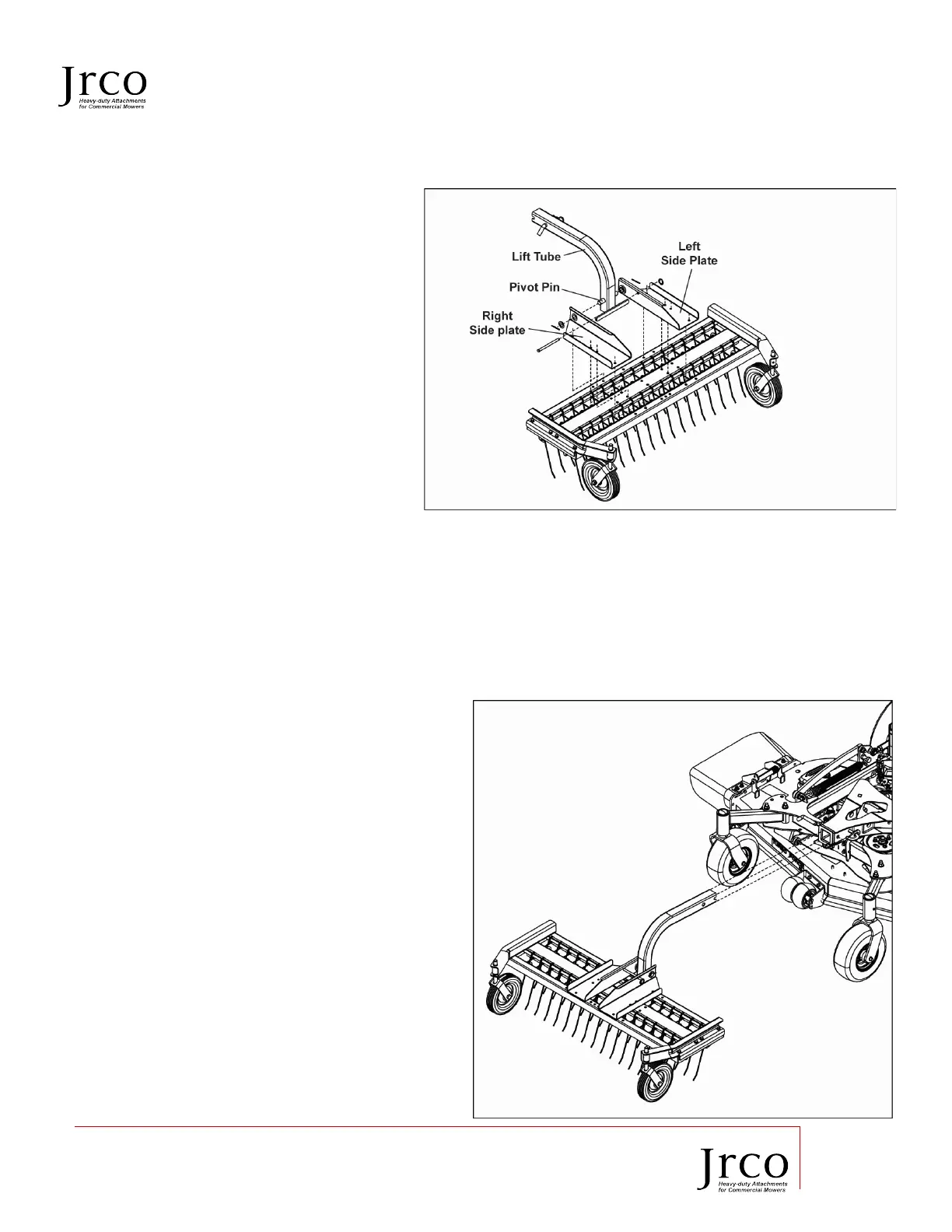

3.3 Side plate and Lift Tube attachment
1. Attach Left Side plate to dethatcher
in the holes shown, using four 5/16
x ¾” serrated flange nuts and bolts.
2. Apply a light coat of dry lube
(silicone spray or eq) to the pivot
pin.
3. Insert the pivot pin of the Lift Tube
into the bushing on the Right Side
Plate. Place a machine bushing on
the pin and secure with a cotter pin.
4. Place the Right Side Plate on the
other end of the pivot pin, and
secure with machine bushing and
cotter pin.
5. Secure the Right side plate with four
more 5/16 x ¾ serrated flange bolts
and nuts.
4 Attach Dethatcher to Reciever Hich
1. Raise the hydraulic lift approximately
2” from bottom stop.
2. Insert 2” lift tube into the receiver
hitch.
