6 Specifications
6.1 Controller CS-1CU
Number of microphone
stations: . . . . . . . . . . . . . . . 50 max. (25 max. per
connection)
Maximum cable length: . . . 100 m
Inputs “Line in”, “Telephone in”, “Insertion in”
Connection: . . . . . . . . . . RCA
Sensitivity: . . . . . . . . . . . 200 mV
Maximum level: . . . . . . . 3.5 V
Impedance: . . . . . . . . . . . 33 kΩ
Input “Recorder in”
Connection: . . . . . . . . . . RCA
Sensitivity: . . . . . . . . . . . 100 mV
Maximum level: . . . . . . . 1.8 V
Impedance: . . . . . . . . . . . 47 kΩ
Input “Microphone”
Connection: . . . . . . . . . . XLR
Sensitivity: . . . . . . . . . . . 1.6 mV
Maximum level: . . . . . . . 2 V
Impedance: . . . . . . . . . . . 1.3 kΩ
Phantom power supply: . 12V ± 1 V via 2 × 680 Ω
Outputs “Line out”, “Telephone out”, “Insertion out”
Connection: . . . . . . . . . . RCA
Rated output level: . . . . . 200 mV
Maximum output level: . . 3.5 V
Impedance: . . . . . . . . . . . 500 Ω
Output “Recorder out”
Connection: . . . . . . . . . . RCA
Rated output level: . . . . . 32 mV
Maximum output level: . . 1 V
Impedance: . . . . . . . . . . . 500 Ω
Connections “Trunk in/out” of microphone stations
Connection: . . . . . . . . . . 7-pole DIN jacks
Power supply: . . . . . . . . . . . 100 – 264 V~/50 – 60 Hz
Power consumption: . . . . . . 90 VA max.
Ambient temperature: . . . . . 0 – 40 °C
Dimensions: . . . . . . . . . . . . 360 × 150 × 90 mm
Weight: . . . . . . . . . . . . . . . . 1745 g
6.2 Microphone stations CS-1CH and CS-1DU
Type of microphone: . . . . . . back electret
Pick-up pattern: . . . . . . . . . cardioid
Frequency range: . . . . . . . . 50 – 18 000 Hz
Max. SPL: . . . . . . . . . . . . . . 125 dB at 1 % THD
Cable length: . . . . . . . . . . . 2.1 m
Dimensions
(without microphone): . . . . . 170 × 115 × 65 mm
Length of gooseneck: . . . . . 400 mm
Weight: . . . . . . . . . . . . . . . . 1100 g
Subject to technical modification.

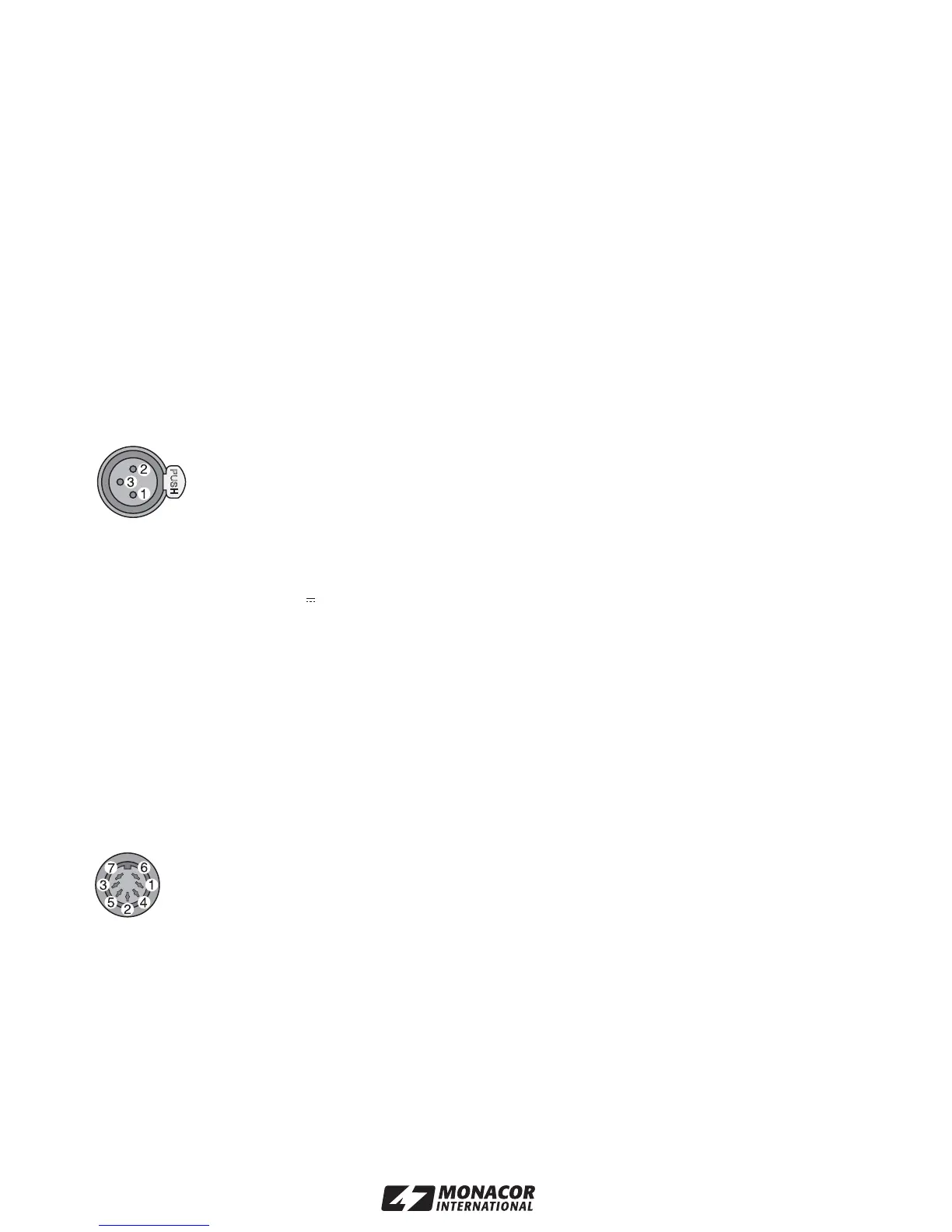

1 = audio signal (microphones)
2 = ground
3 = audio signal (speakers)
4 = control line 1
5 = control line 2
6 = power supply +15 V
7 = power supply
- 15 V
1 = ground/ phantom power supply -
2 = signal +/ phantom power supply +
3 = signal - / phantom power supply +
15
