2. Use the throle
3. Push the “assist up” or “assist down” buon
IMPORTANT NOTES ABOUT THE CRUISE CONTROL FUNCTION
• The cruise is considered a type of throle and the
maximum cruise controllable speed is 20 mph in
accordance with regulaons.
• If you set the cruise control speed above 20 mph, the
cruise control speed will default to 20 mph. The speed will
decrease unl it reaches 20 mph.
• The pedal assist is sll available when the cruise control
is acve. It may be possible to pedal the e-bike faster
than the preset cruise speed. However, the cruise will
automacally resume if the speed decreases to the preset
cruise-controlled speed.
• If you need more power to achieve a preset speed (for
example, when encountering resistance such as a hill or
headwind) more power will automacally go to the motor
to help maintain the preset speed.
• If the resistance is too much for the system to retain the
preset speed, the resulng speed will be limited by the
capability of the motor.
RESETTING THE TRIP COUNTER
The LCD display has a trip counter funcon to keep track of the
distance of your ride over me. The Amp-hours (Ah) and Wa-
hour (Wh) drawn from the baery pack are also linked to the
trip counter data. You can reset the trip data to zero at any me.
TO RESET THE TRIP, AH, AND WH COUNTER TO ZERO
Push and hold both the power buon and “assist down” buon
for 3 seconds, then release both buons. The trip and Ah
counter will reset to zero.
ACTIVATING THE ADVANCE DISPLAY SCREEN

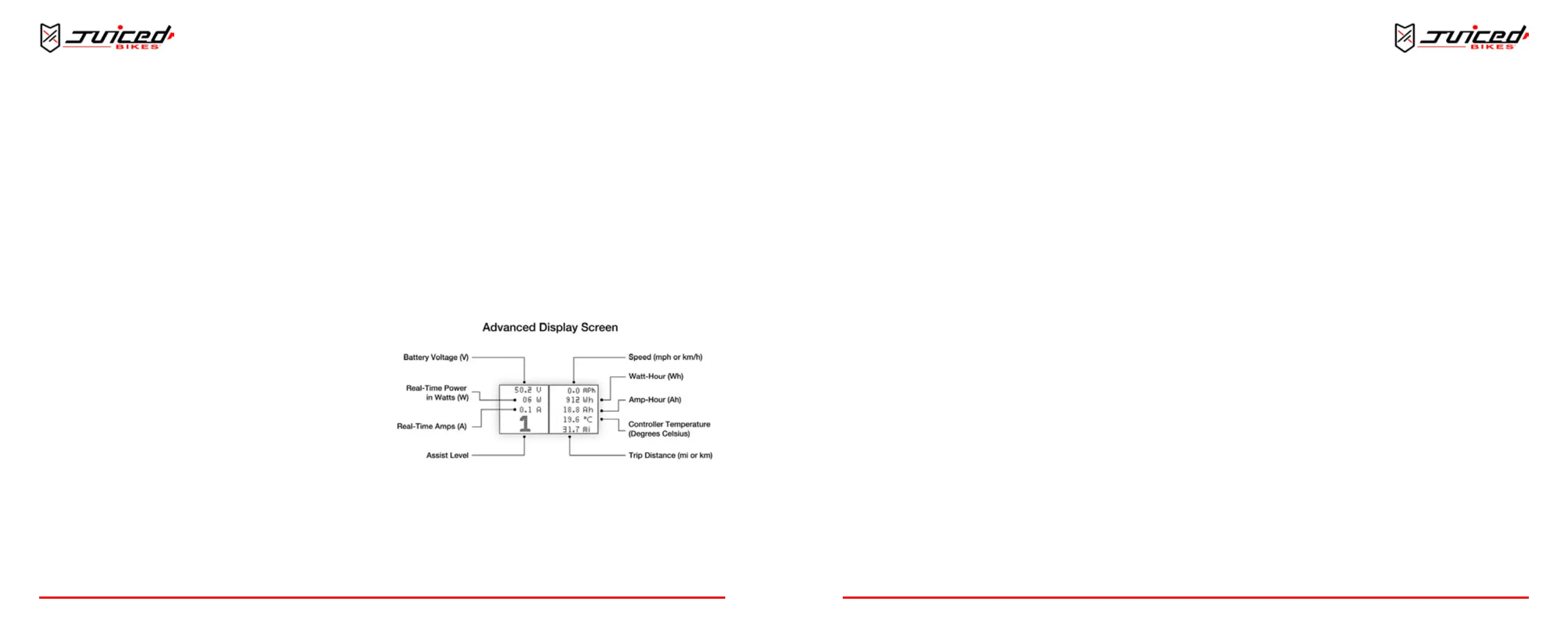

Fig. 26 - Data on the Advanced Display Screen
In some instances it is useful to see addional ride stascs.
The display can be switched into the advanced display mode.
This funcon will allow you to see expanded real-me data on
one screen.
OPERATION
THIS DATA INCLUDES
Voltage, Power, Amps, Assist Level, Speed, Wa-hours, Amp-
hours, Controller Temperature and Trip Distance
TO TOGGLE BETWEEN THE MAIN SCREEN AND THE ADVANCED DISPLAY
SCREEN
Push the power buon and the “assist up” buon at the
same me for 1 second. The display screen will change to the
advanced mode.
NOTE: The default display is the standard screen. This is the rst
display that will appear when you turn on the e-bike.
UNDERSTANDING THE ADVANCED DISPLAY
MODE
VOLTAGE
The voltage displayed is the voltage of the pack. When the
baery is charged, the voltage will be higher (around 54V).
When the baery pack is depleted, the voltage will be lower
(around 43V). Voltage uctuates when the baery is under load.
NOTE: The voltage display is only accurate to about +/- 0.3 Volts
and should not be used for any scienc measurements.
AMPS
The amperage is the current ow through the wires. In this
case we measure the current ow through the controller. The
average will not be non-zero, as the system needs some small
amount of current to operate. When the motor is under load,
the Amp value will increase. The maximum value should be 20-
22A on the nine-transistor controller.
NOTE: The Amperage display is only accurate to about +/- 1 A and
should not be used for any scienc measurements.
POWER
Power is the Voltage x Amperage and appears in Was. This
is the power output at any moment of your e-bike. The more
power used to propel the e-bike, the higher this value will be.
NOTE: Do not use the power display for any scienc
measurements.
AMP-HOURS
The amp-hour gure measures the amount of current owing
out of the baery for a given hour. Reset the amp-hour and
wa-hour value by reseng the trip counter.
WATT-HOURS
The wa-hour is the measurement of how many was are
sustained for a given hour. The wa-hour is the energy
consumed by the system. You can get a good indicaon of how
much energy remains inside the baery by subtracng the total
wa-hours consumed by the total “Wh” available in the baery.
NOTE: Because there is a small error rate in the Amp and Voltage
measurements, the Wa-hour value will also have some degree of
error. Use the measurement for informaonal purposes and not for
scienc measurements.
ASSIST LEVEL
The assist level indicator shows the assist level you are in at
any given moment. It appears in both the advanced and the
standard display modes.
