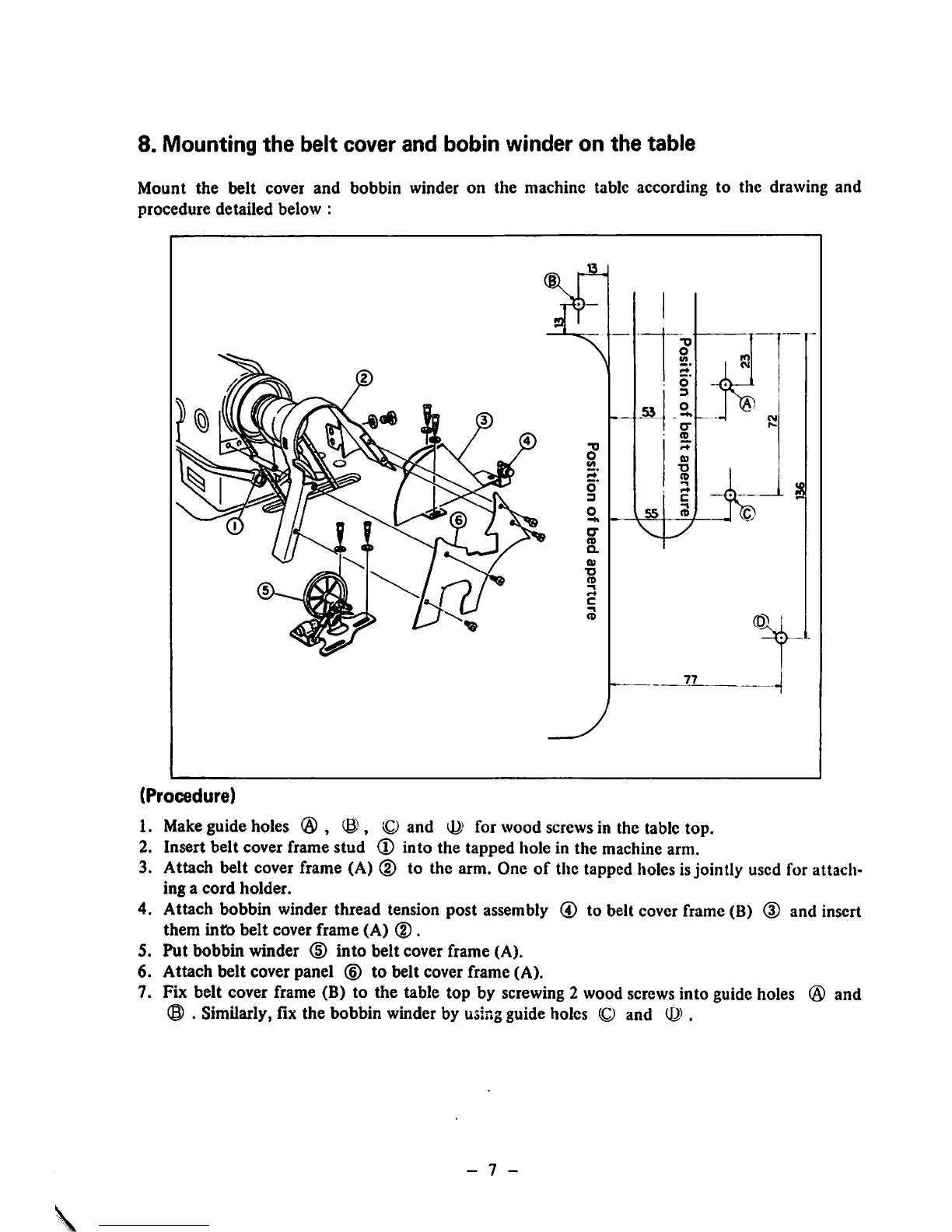

8. Mounting
the
belt
cover
and
bobin
winder
on
the
table
Mount
the
belt
cover
and
bobbin
winder
on
the
machine
table
according
to
the
drawing
and
procedure
detailed
below
:
(Procedure)
1.
Make
guide
holes
® ® , O and for
wood
screws
in the
table
top.
2. Insert belt coverframestud
(T)
into the tapped hole in the machinearm.
3. Attach belt coverframe (A) (D to the arm. One of the tappedholesisjointly usedfor attach
ing a
cord
holder.
4. Attach bobbin winder thread tension post assembly ® to belt cover frame (B) (D and insert
them
intb
belt cover frame (A)
(D.
5. Put bobbin winder (D into belt cover frame (A).
6.
Attach
belt
cover
panel
(6)
to
belt
cover
frame
(A).
7. Fix belt cover frame (B) to the table top by screwing2 woodscrewsinto guide holes ® and
(8)
. Similarly, fix the bobbinwinderby
using
guideholes (Q and .
- 7 -
