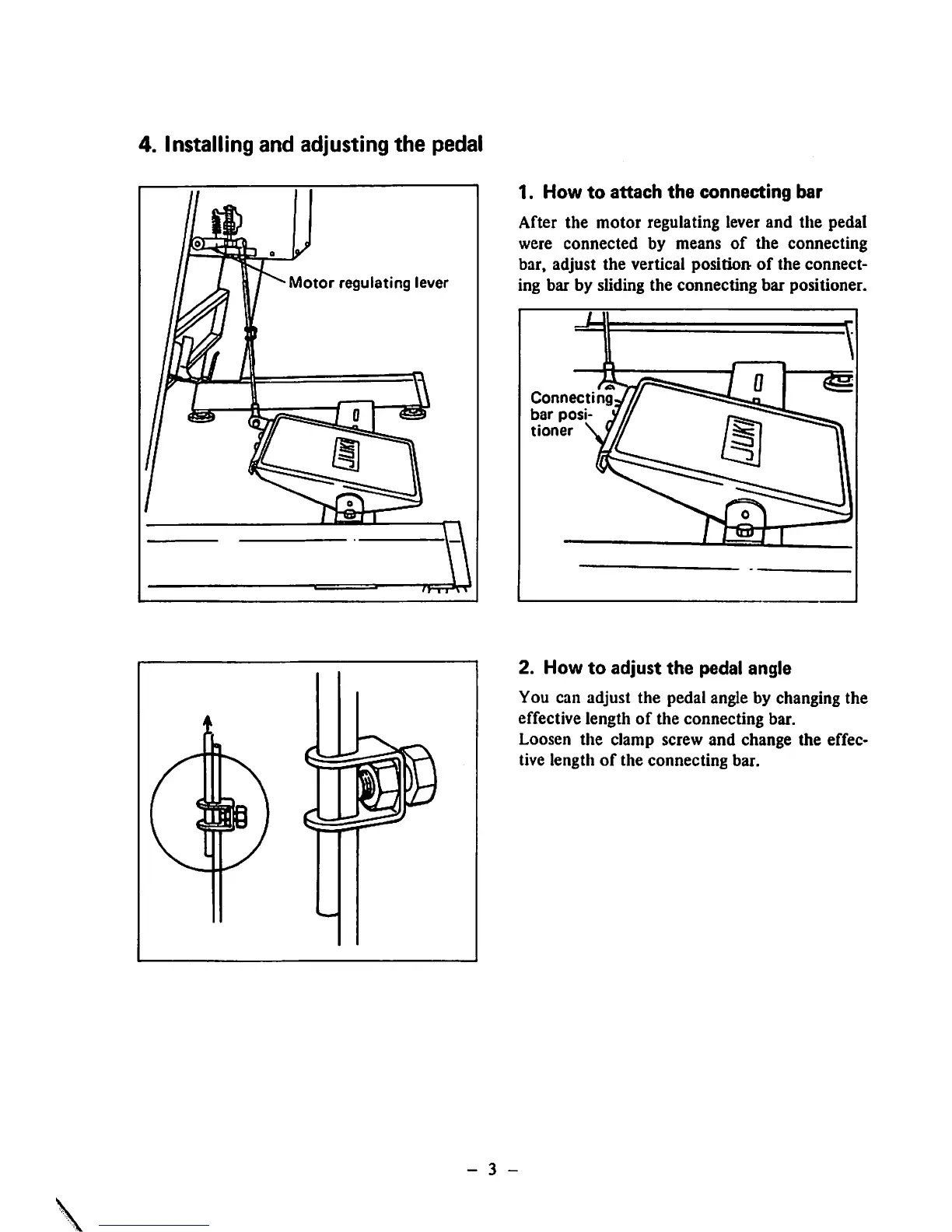

4. Installing
and
adjusting
the
pedal
Motor
regulating
lever
1.
How
to
attach
the
connecting
bar
After
the
motor
regulating lever
and
the
pedal
were
connected
by means
of
the
connecting
bar,
adjust
the
vertical
position
of
the
connect
ing bar by sliding
the
connecting
bar
positioner.
Connecting
bar
posi
tioner
2.
How
to
adjust
the
pedal angle
You can adjust
the
pedal angle by changing
the
effective length
of
the connecting bar.
Loosen
the
clamp
screw
and
change
the
effec
tive length
of
the
connecting
bar.
- 3 -
