7
A
C
d
a
b
E
B
D
e
f
g
c

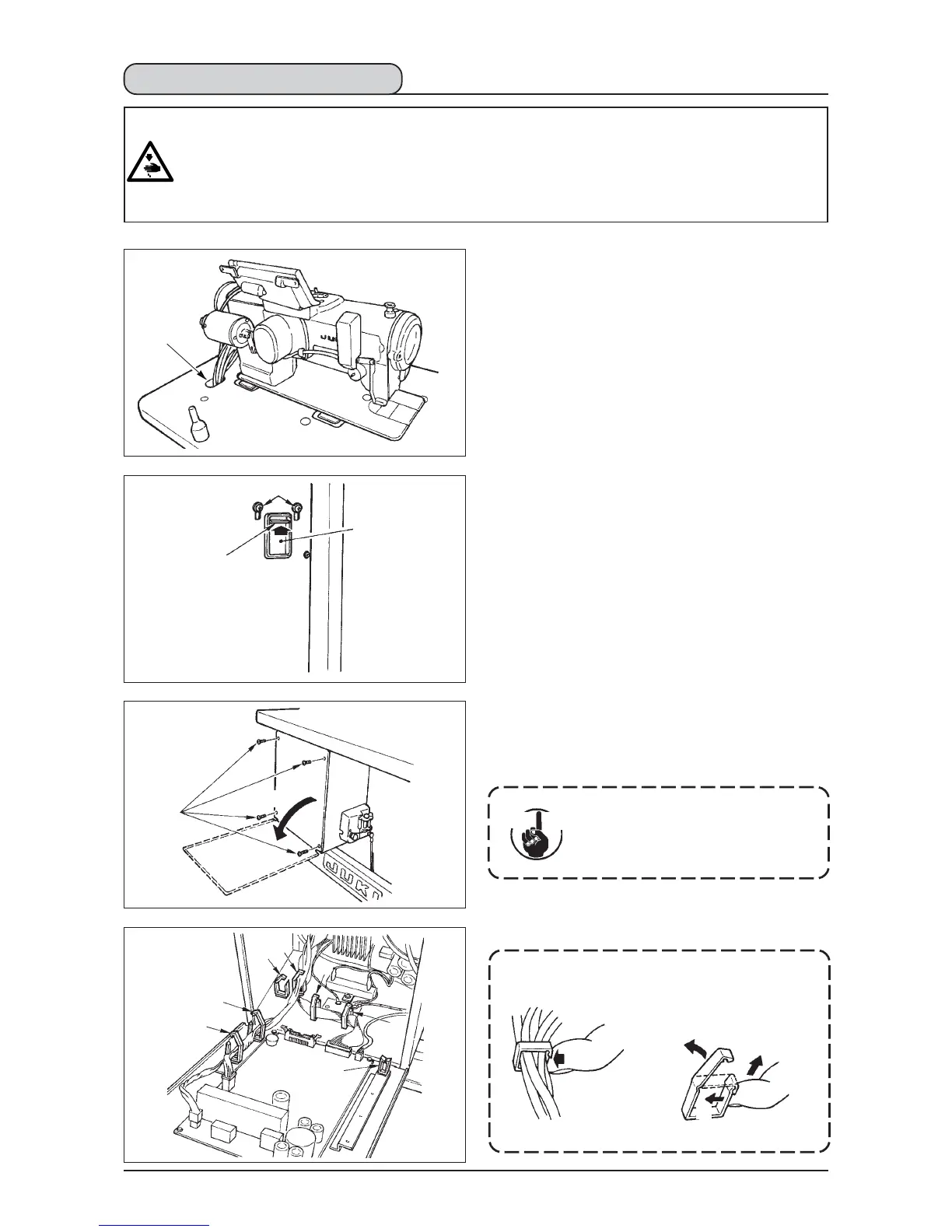

4-8. Connecting the cords
WARNING :
To prevent personal injury caused by abrupt start of the sewing machine, carry out the work after turning
OFF the power switch and a lapse of 5 minutes or more.
To prevent damage of device caused by maloperation and wrong specifications, be sure to connect all the
corresponding connectors to the specified places.
To prevent personal injury caused by maloperation, be sure to lock the connector with lock.
As for the details of handling respective devices, read carefully the Instruction Manuals supplied with the
devices before handling the devices.
Slowly
(1) Preparation of wiring
1) Pass the cords coming from the machine head to
the underside of the table through hole A in the table.
2) Loosen screws D and lift cord presser plate C of
cord passing hole B located on the front cover to
the top and temporarily tighten the plate.
3) Remove four screws E fixing the rear cover of the
electrical box. When opening the rear cover,
pressing it with your hands, slowly open it by
approximately 90˚ until it stops as illustrated.
Be sure to lend your hand to the rear
cover in order not to let the rear
cover fall. In addition, do not apply
force to the rear cover opened.
4) Remove the locks of cord clamps a, b, c, d, e, and f.
How to remove the cord clamp
1 Lightly pressing
2 Pull down the clamp.
3 The clamp goes up.
2
3
1
1
Cau tion
* See P.11 for how to lock the cord clamp.
