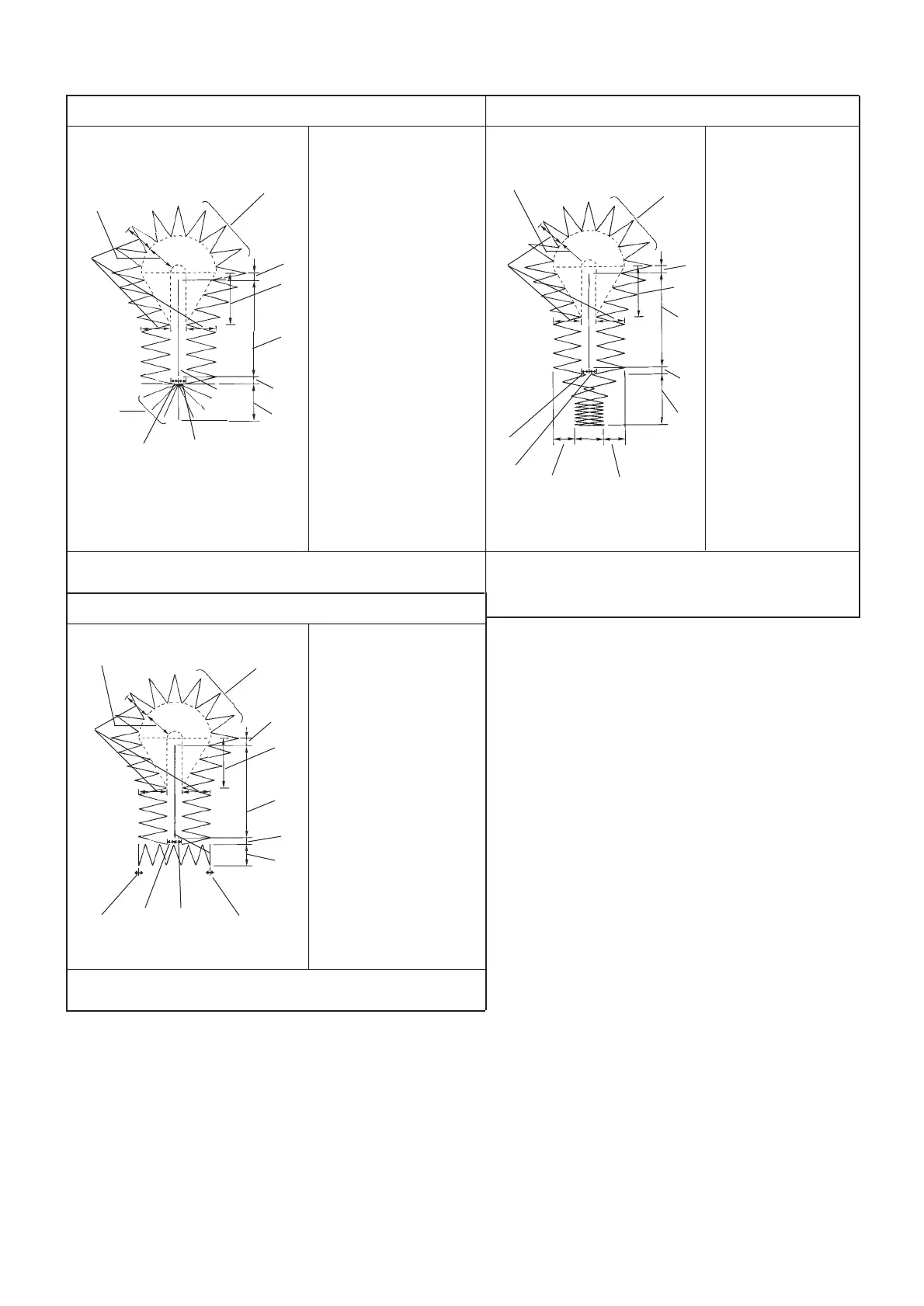

Shape No. 10 : Eyelet radial type
* When the bar-tacking width compensation value is set to + (plus), the value is added to the total width.
[With regard to input data]
Shape No. 11 : Eyelet flow bar-tacking type
Shape No. 12 : Eyelet straight bar-tacking type
A
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Radius of eyelet hole
Data No. 37
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
8 Length of radial type shape
Data No. 11
9Length of bottom of eyelet hole
Data No. 38
!0 Number of stitches of radial shape
Data No. 12
!1 Number of stitches of eyelet shape
Data No. 39
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Radius of eyelet hole
Data No. 37
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
8 2nd bar-tacking length
Data No. 5
9Length of bottom of eyelet hole
Data No. 38
!0 Bar-tacking width, left compensation
Data No. 15
!1
Bar-tacking width, right compensation
Data No. 14
!2 Number of stitches of eyelet shape
Data No. 39
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Radius of eyelet hole
Data No. 37
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
8 2nd bar-tacking length
Data No. 5
9 Length of bottom of eyelet hole
Data No. 38
!0 Bar-tacking width, left compensation
Data No. 15
!1 Bar-tacking width, right compensation
Data No. 14
!2 Number of stitches of eyelet shape
Data No. 39
Total width = 1 x 2 + 5 x 2 +2 + 3
Total length = 4 + 1+ 5 + ( 2+ 3)/2+ 8 + 6 + 7
Total width = 1 x 2 + 5 x 2 +2 + 3
Total length = 4 + 1+ 5 + ( 2+ 3)/2+ 8 + 6 + 7
Total width = 1 x 2 + 5 x 2 +2 + 3
Total length = 4 + 1+ 5 + ( 2+ 3)/2+ 8 + 6 + 7
A = 1 x 2 +2 + 3 – !0 – !1
1
23
4
5
6
7
8
9
!0
!1
1
2
3
4
5
6
7
8
9
!0
!1
!2
1
2
3
4
5
6
7
8
9
!0
!1
!2
