JUKI LBH-1702 - Page 78

− 78 −

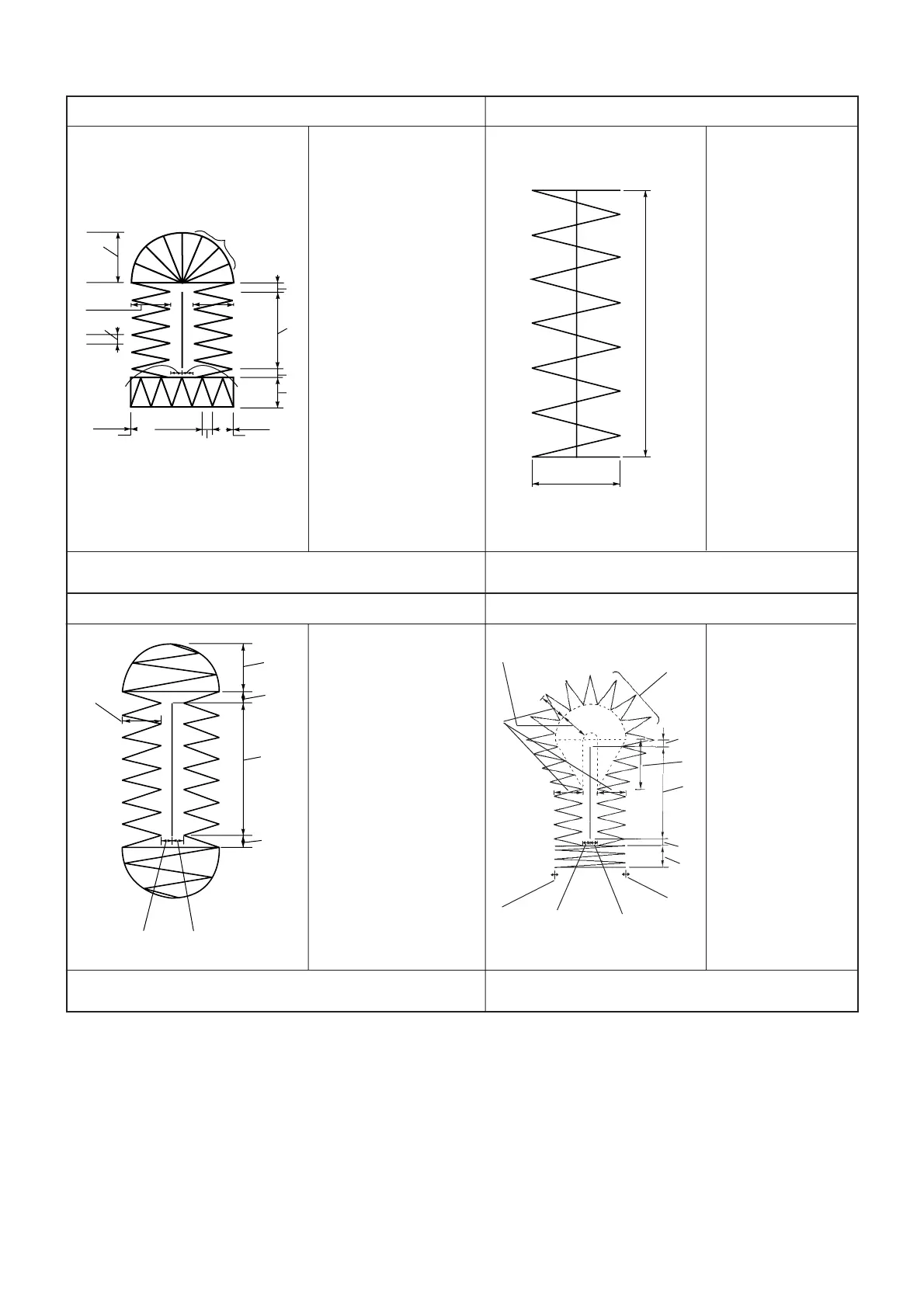

Shape No. 6 : Radial straight bar
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Length of radial round type shape
Data No. 11
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
8 2nd bar-tacking length
Data No. 5
90 Bar-tacking width, left compensation
Data No. 15
!0 Bar-tacking width, right compensation
Data No. 14
!1 Pitch at parallel section
Data No. 8
!2 Pitch at bar-tacking section
Data No. 9
!3 Number of stitches of radial shape
Data No. 12
Total width = 1 x 2 + 2 + 3 (+ 9 + !0)
Total length = 4 + 5 + 8 + 6 + 7
* When the bar-tacking width compensation value is set to + (plus), the value is added to the total width.
[With regard to input data]
1
23
4
5
6
7
8
9
!0
!1
!2
!3
Shape No. 7 : Bar-tacking
1 Cloth cut length
Data No. 1
2 Bar-tacking width
Data No. 34
1
2
Total width = 2
Total length = 1
Shape No. 8 : Semilunar type
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Length of radial round type shape
Data No. 11
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
Total width = 1 x 2 + 2 + 3
Total length = 4 + 5 x 2 + 6 + 7
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
!0
!1
!2
Shape No. 9 : Eyelet square type
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Radius of eyelet hole
Data No. 37
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
8 2nd bar-tacking length
Data No. 5
9 Bar-tacking width, left
compensation
Data No. 15
!0
Bar-tacking width, right compensation
Data No. 14
!1 Length of bottom of eyelet hole
Data No. 38
!2 Number of stitches of eyelet
shape
Data No. 39
Total width = 1 x 2 + 5 x 2 +2 + 3
Total length = 4 + 1+ 5 + ( 2+ 3)/2+ 8 + 6 + 7
