JUKI LBH-1702 - Page 77

− 77 −
1
2
3
4
5
6
7
8
9
!0
1
2
3
4
5
6
7
1
2
3
4
5
6
7
8
9
!0

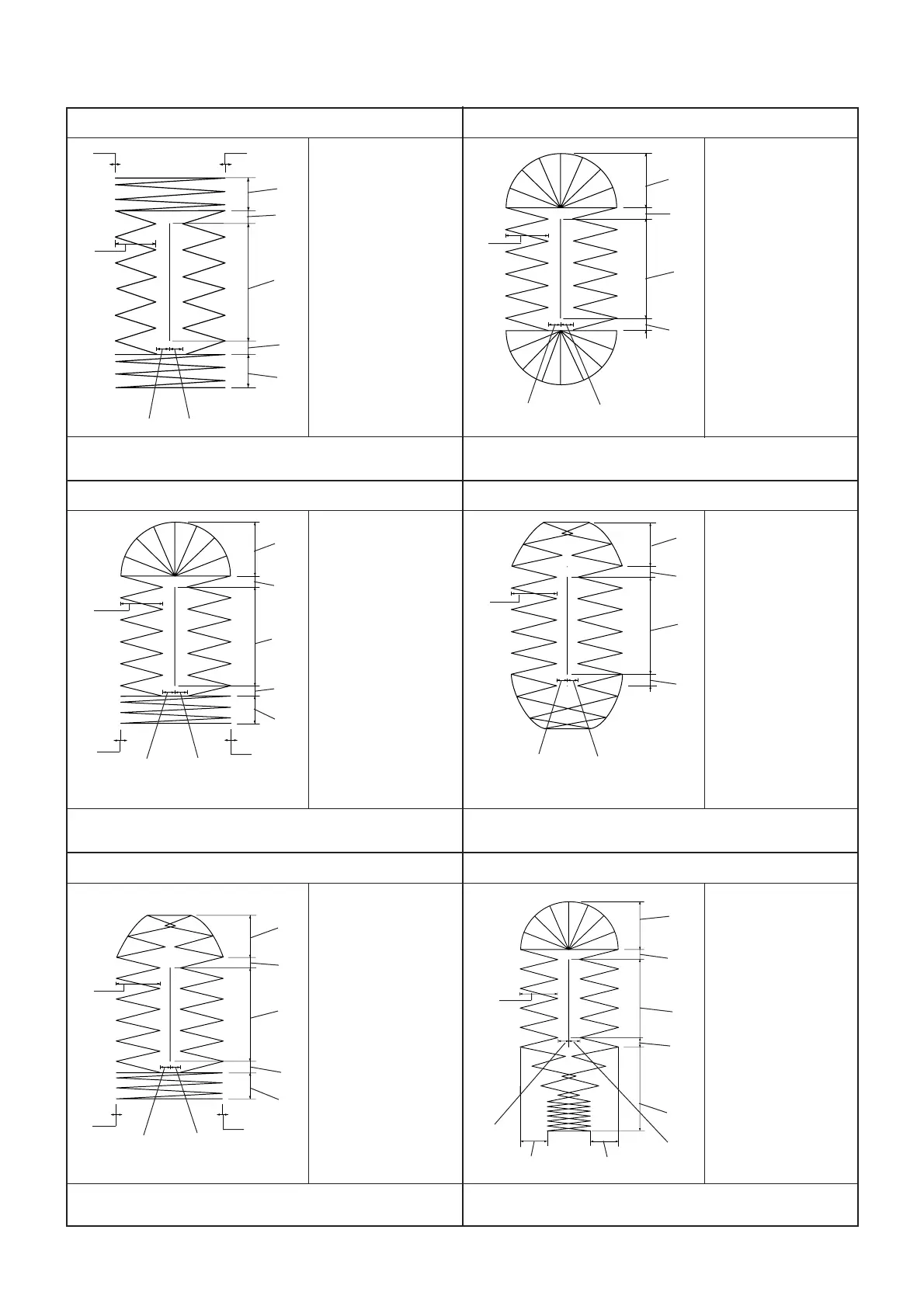

Shape No. 0 : Square type
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 1st bar-tacking length
Data No. 25
6 2nd bar-tacking length
Data No. 5
7 1st clearance
Data No. 6
8 2nd clearance
Data No. 7
9 Bar-tacking, left compensation
Data No. 15
!0 Bar-tacking, right compensation
Data No. 14
Total width = 1 X 2 + 2 + 3 (+ 9 + !0)
Total length = 4 + 5 + 6 + 7 + 8
No. 2 : Radial square type
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Radial type shape length
Data No. 11
6 2nd bar-tacking length
Data No. 5
7 1st clearance
Data No. 6
8 2nd clearance
Data No. 7
9 Bar-tacking, left compensation
Data No. 15
!0 Bar-tacking, right compensation
Data No. 14
Total width = 1 X 2 + 2 + 3 (+ 9 + !0)
Total length = 4 + 5 + 6 + 7 + 8
No. 4 : Round square type
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Round type shape length
Data No. 11
6 2nd bar-tacking length
Data No. 5
7 1st clearance
Data No. 6
8 2nd clearance
Data No. 7
9 Bar-tacking, left compensation
Data No.15
!0 Bar-tacking, right compensation
Data No. 14
Total width = 1 X 2 + 2 + 3 (+ 9 + !0)
Total length = 4 + 5 + 6 + 7 + 8
No. 1 : Radial type
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Radial type shape length
Data No. 11
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
Total width = 1 X 2 + 2 + 3
Total length = 4 + 5 X 2 + 6 + 7
No. 3 : Round type
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Round type shape length
Data No. 11
6 1st clearance
Data No. 6
7 2nd clearance
Data No. 7
Total width = 1 X 2 + 2 + 3
Total length = 4 + 5 X 2 + 6 + 7
No. 5 : Radial taper bar
1 Stitch width
Data No. 4
2 Knife groove width, left
Data No. 3
3 Knife groove width, right
Data No. 2
4 Cloth cutting length
Data No. 1
5 Radial round type shape length
Data No. 11
6 2nd bar-tacking length
Data No. 5
7 1st clearance
Data No. 6
8 2nd clearance
Data No. 7
9 Bar-tacking, left compensation
Data No. 15
!0 Bar-tacking, right compensation
Data No. 14
Total width = 1 X 2 + 2 + 3 (+ 9 + !0)
Total length = 4 + 5 + 6 + 7 + 8
* When the bar-tacking width compensation value is set to + (plus), the value is added to the total width.
1
2
3
6
7
8
4
5
9 !0
1
2
3
4
5
6
7
8
9
!0
☆ When an error (Er14, 18, 19, 30) has occurred by data setting, refer to the table below and re-input the data.
[With regard to input data]
1
2
3
4
5
6
7
