(1) Preparation for assembly of the control box
III. INSTALLATION
WARNING :
To prevent possible accidents caused by the fall of the sewing machine, perform the work by two
persons or more when the machine is moved.

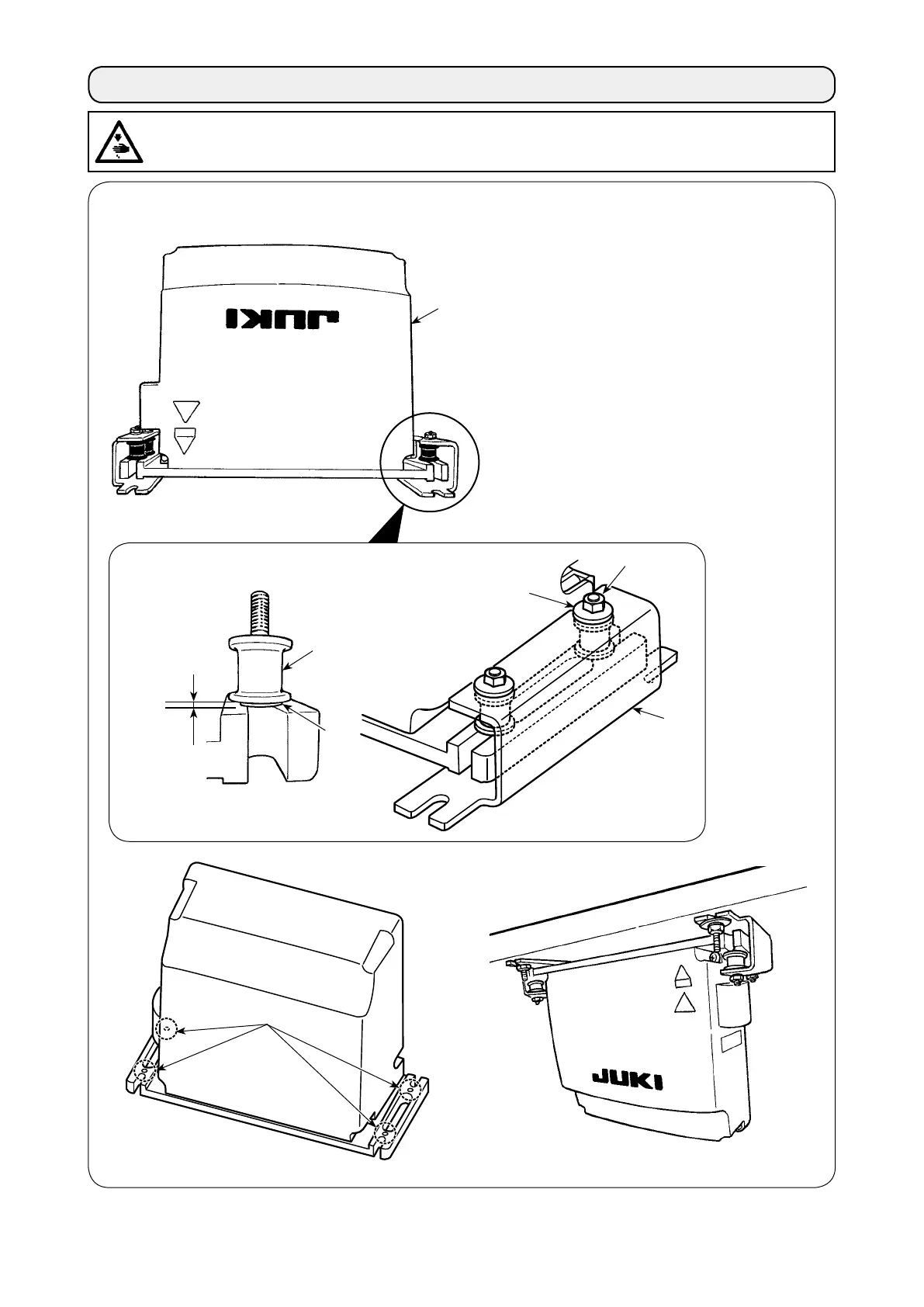

1) Fix toothed washers
and rubber
cushions
on control box
. (At four
locations)
* Tighten the toothed washers so that their
height becomes 0.8 mm.
2) Fix control box mounting plate
with
plain washers
and nuts
. (At four
locations)
* Fix the mounting plate while tting the
screw in the U-groove in the mounting
plate.
At four locations
0.8 mm
To Next Page
