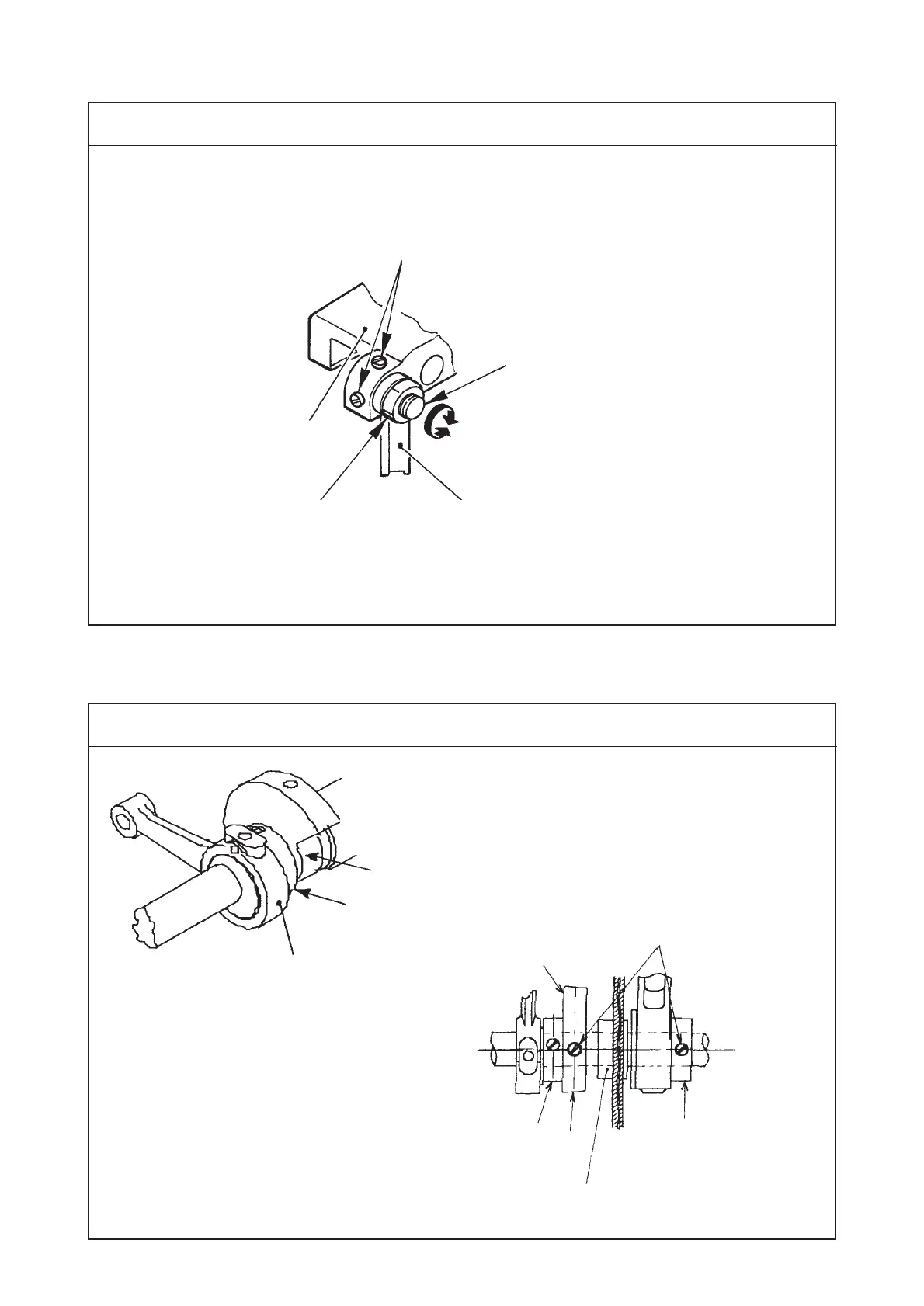

JUKI LS-1341 - Stitch length of normal;reverse feed; Balancer (LS-1340 and LS-1341 only)

−20 −
Standard Adjustment
Standard Adjustment
(13) Balancer (LS-1340 and LS-1341 only)
(12) Stitch length of normal/reverse feed
1
2
1
3
1
2
A
B
Feed adjusting base
Notch
Feed adjusting rod
Conditions : Feed amount : 6 mm
Top feed driving rod
To come in close contact
with each other
Main shaft intermediate bushing
Both screws No. 1 are
aligned with each other.
3
